What Is a Spring Pin?
A spring pin, also known as a tension pin or roll pin, is a hollow cylindrical fastener with chamfered ends that is designed to be press-fitted into a drilled hole. Unlike solid pins, spring pins feature radial elasticity, meaning they compress during installation and then expand to exert continuous outward pressure against the hole walls. This characteristic allows them to absorb hole tolerances, resist vibration, and maintain a secure hold even under dynamic loading conditions.
The unique construction of spring pins eliminates the need for secondary locking mechanisms such as set screws, nuts, or adhesives, making them an efficient and cost-effective fastening solution.
Main Types of Spring Pins:
Spring pins are generally classified into two primary categories based on their construction:
Coiled Spring Pins are manufactured by coiling 2¼ turns of spring steel into a spiral configuration. This design delivers superior flexibility and fatigue resistance because the multiple coils distribute stress more evenly across the pin body. Coiled pins are the preferred choice for applications involving dynamic loads, shock, and vibration.

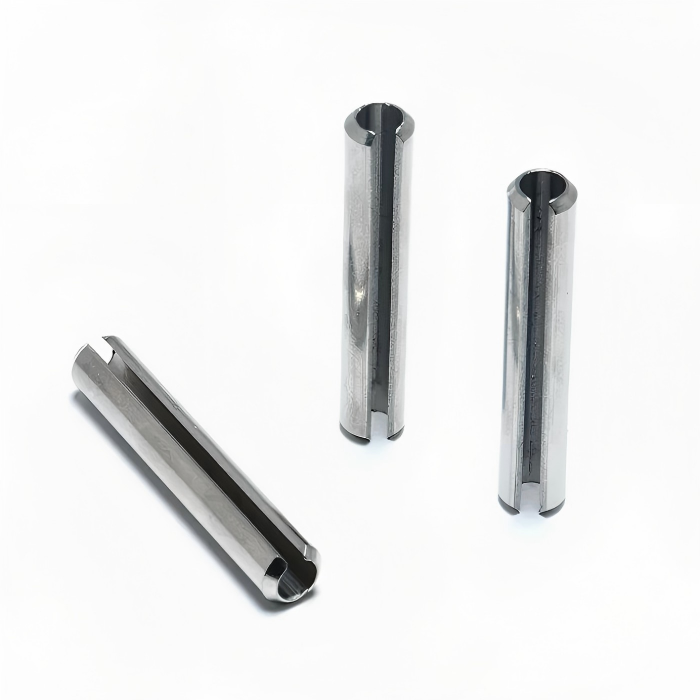

Slotted Spring Pins feature a C-shaped cross-section with a single longitudinal slot along the length of the pin. During installation, the slot allows the pin to compress, but once the gap closes, flexibility becomes limited. Slotted pins are well suited for static load applications and are generally more economical than coiled pins.

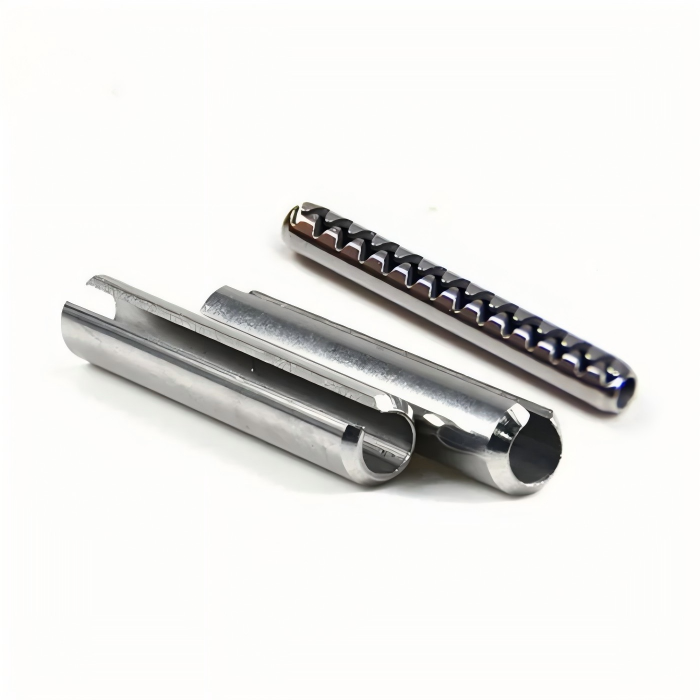

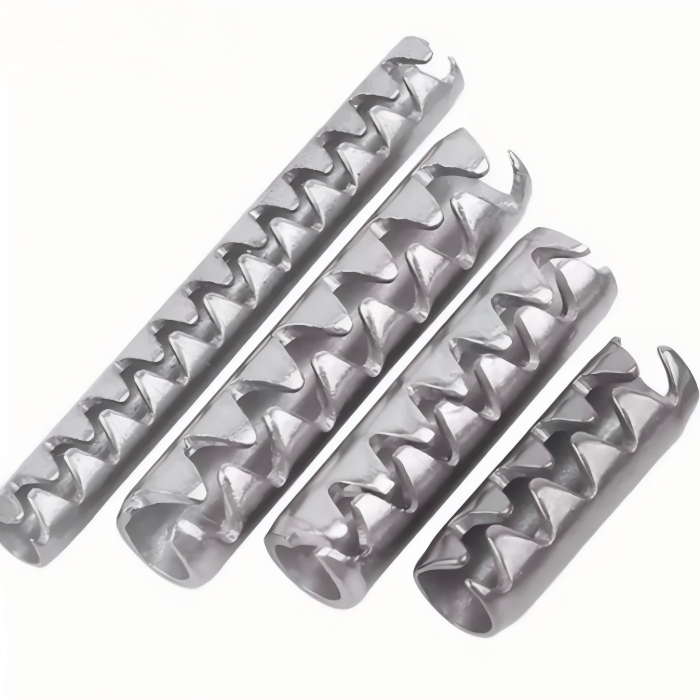

A third variation, toothed coiled pins, incorporates a toothed longitudinal slot that provides the highest level of positioning accuracy and retention force. These are ideal for applications requiring precise alignment in high-vibration environments.
Material Selection and Performance Comparison:
The material of a spring pin directly influences its strength, corrosion resistance, and suitability for specific environments. The table below summarizes the most common options
| Material | Key Characteristics | Typical Applications |
|---|---|---|
| Carbon Steel | High strength, low cost | General industrial use |
| 302/304 Stainless Steel | Good corrosion resistance | Humid environments |
| 316 Stainless Steel | Excellent corrosion resistance | Marine, chemical processing |
| 420 Chrome Stainless Steel | High strength plus corrosion resistance | Dynamic loads in corrosive settings |
420 chrome stainless steel spring pins combine high hardness with corrosion protection, making them a strong choice for demanding applications. For dynamic loading combined with exposure to moisture or chemicals, coiled spring pins made from stainless steel represent an optimal solution.
Typical Application Areas:
Spring pins are used across virtually every sector of mechanical manufacturing:
- Automotive: Positioning and fastening in transmissions, engines, and chassis assemblies
- Aerospace: Critical components in aircraft engines that must withstand extreme vibration
- Industrial Equipment: Securing gears, pulleys, and couplings
- Electronics: Connectors, terminals, and wire harness fixation
- Medical Devices: Applications requiring high precision and cleanliness
It also serve as hinge pins, bushings, and alignment points in countless other mechanical systems.
Installation and Removal Best Practices:
Installing spring pins is straightforward and can be accomplished through several methods:
- Manual Installation: Driving the pin into the hole with a hammer
- Pneumatic Installation: Using an air hammer with a dedicated driver
- Press Fitting: Employing a press for precise, controlled installation
For removal, a punch can be used to drive the pin out from the opposite side, or pliers can grip the exposed end for extraction. While spring pins are designed for reusability, their elasticity should be inspected after multiple installation cycles.
Selection Guidelines:
When choosing a spring pin, consider the following factors:
- Load Type: Choose coiled pins for dynamic loads
- Environmental Conditions: Select stainless steel for corrosive environments
- Hole Tolerance: Spring pins accommodate a wider tolerance range than solid pins
- Standards Compliance: Refer to ISO 8752, DIN 1481, and other relevant standards
Selecting the correct spring pin improves assembly efficiency, extends the service life of the joint, and reduces long-term maintenance costs.
Frequently Asked Questions About Spring Pins:
What is the difference between a spring pin and a roll pin?
The terms are often used interchangeably. “Roll pin” typically refers to a coiled design, while the broader category includes both coiled and slotted versions.
Are they removable and reusable?
Yes. These components can be removed with a punch or pliers and are generally reusable. However, after multiple installation cycles, their elasticity may decrease, so inspection is recommended before reuse.
Which is stronger: a coiled pin or a slotted pin?
Coiled versions offer better flexibility and fatigue resistance, making them stronger under dynamic loads. Slotted types are more rigid and better suited to static applications.
Can they be used in aluminum housings?
Yes, but care must be taken because aluminum is softer than steel. A coiled design is usually preferred in aluminum because its flexibility reduces the risk of damaging the hole.
What is the correct hole size?
The hole should be sized according to the nominal diameter and the relevant standard, such as ISO 8752 or DIN 1481. A slightly undersized hole ensures proper interference fit.
