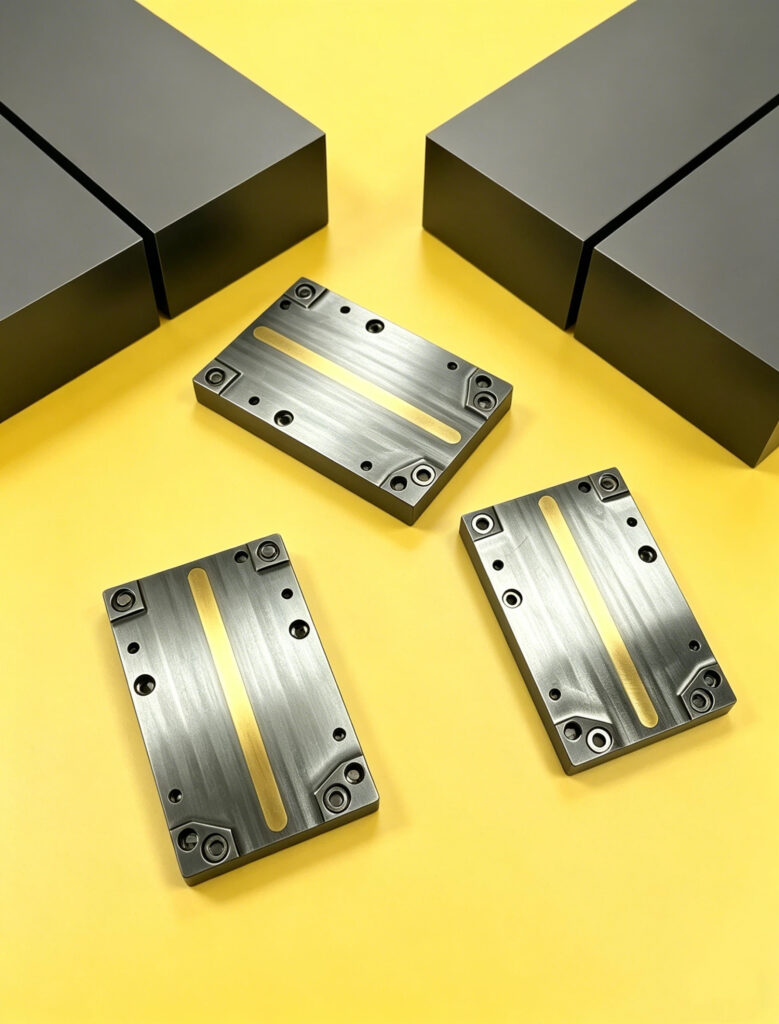

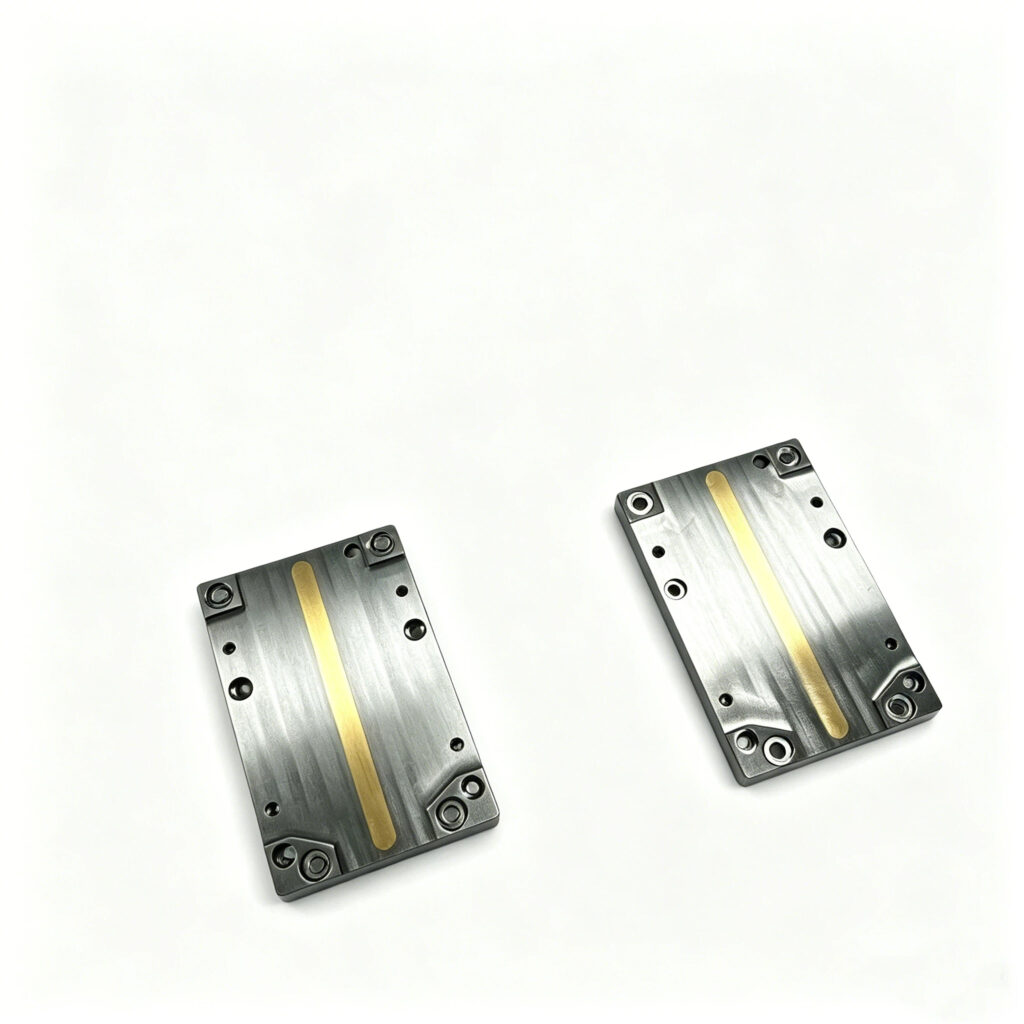

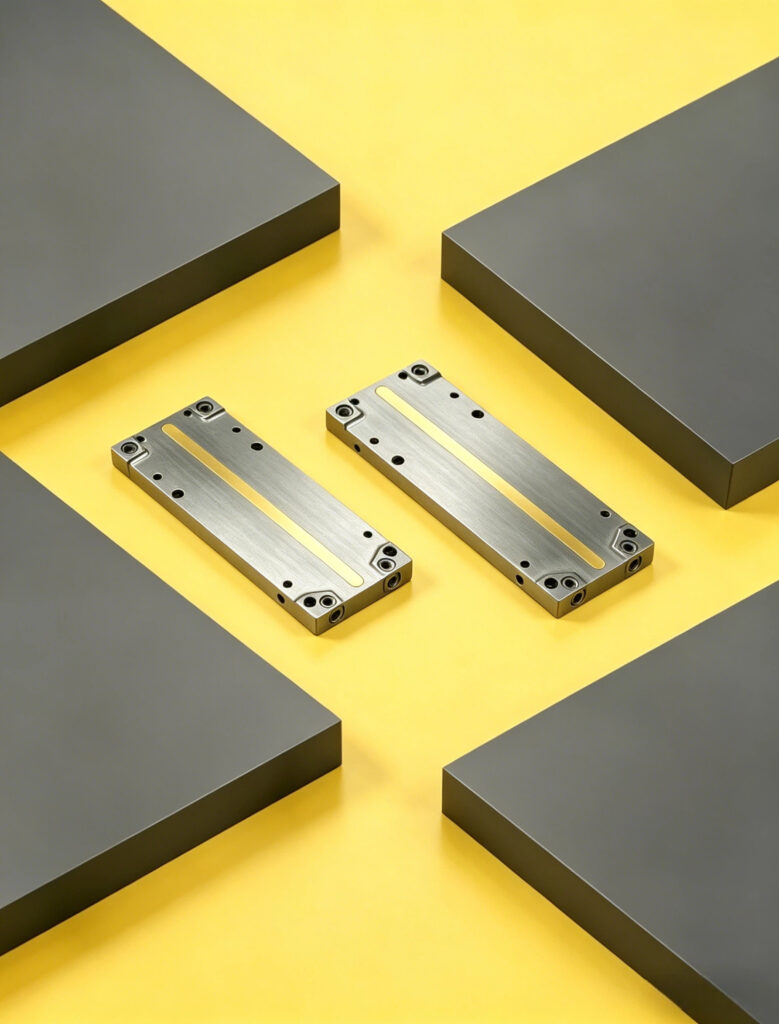

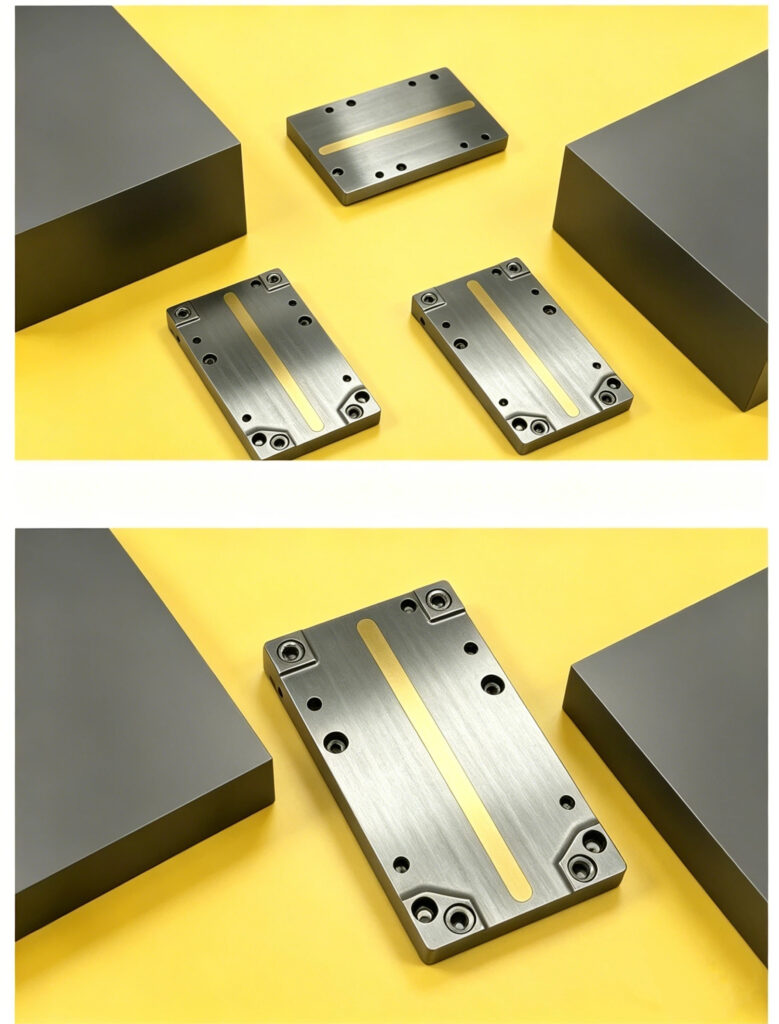

Custom Excellent Air Bearing Slide 300mm x 200mm Travel High Stiffness Air Bearing Slide

An air bearing slide uses a thin film of pressurized air to create frictionless, non-contact linear motion. It eliminates mechanical contact for zero wear, ultra-smooth movement, and high precision. Manufactured from aluminum or stainless steel. Available in custom travel lengths from 50mm to 1000mm. Features include porous carbon bearings, linear encoders, and vacuum preloading. Suitable for semiconductor inspection, metrology, and medical imaging. Custom slides available with specific travel, load, and encoder options.

What Is an Air Bearing Slide?

An air bearing slide is a linear motion system that uses a thin film of pressurized air to create a frictionless, non-contact bearing surface between the slide and its guide. Unlike traditional mechanical bearings that rely on rolling elements or sliding contact, the air bearing slide eliminates physical contact entirely, enabling ultra-smooth motion with zero wear, exceptional precision, and outstanding repeatability.

The air bearing slide is characterized by its air gap typically ranging from 5 to 15 micrometers, achieved through porous carbon media or precision orifice restrictors. Typical features include a stationary guide rail with precision-ground reference surfaces, a moving carriage that rides on the air film, air supply connections for filtered, regulated compressed air, integrated linear encoders for position feedback, and vacuum preloading for stiffness and stability. Travel lengths typically range from 50mm to 1000mm, with load capacities up to 100kg. The air bearing slide eliminates stick-slip, reduces vibration, and achieves nanometer-level positioning accuracy.

Operating Principle:

The operation of an air bearing slide is based on hydrodynamic or aerostatic principles. Compressed air at 60 to 80 PSI is introduced into the bearing gap through porous carbon media or precision orifices. The air flows through the porous material or orifices and forms a uniform pressure film that separates the slide from the guide surface. The air film supports the load while allowing virtually frictionless motion. Vacuum preloading is often used to increase stiffness by applying suction to counteract the air pressure, creating a rigid air bearing with high load capacity. This non-contact operation eliminates wear, reduces heat generation, and provides smooth motion at both low and high speeds.

Common Types of Air Bearing Slides:

Porous Air Bearing Slide:

Uses porous carbon media distributed across the bearing surface to create a uniform air film. Provides excellent averaging of surface irregularities and high stiffness. Suitable for high-precision metrology and semiconductor applications.

Orifice Air Bearing Slide:

Uses discrete precision orifices to introduce air into the bearing gap. Simpler and less expensive than porous designs. Suitable for general precision applications where ultimate averaging is not required.

Single Axis Air Bearing Slide:

Provides linear motion along one axis. Most common configuration for precision positioning systems. Suitable for inspection, scanning, and assembly applications.

Multi Axis Air Bearing Slide:

Combines two or three axes (XY or XYZ) for multi-degree-of-freedom motion. Suitable for coordinate measuring machines, wafer inspection, and precision alignment.

Vacuum Preloaded Air Bearing Slide:

Incorporates vacuum channels to preload the air bearing for increased stiffness. Allows operation in any orientation, including inverted or vertical mounting. Suitable for high-dynamic applications.

Applications Across Industries:

Semiconductor Manufacturing:

Air bearing slides are essential for wafer inspection, mask alignment, die bonding, and metrology equipment. The frictionless motion prevents particle generation that could contaminate wafers, while nanometer precision enables inspection of sub-micron features.

Metrology and Coordinate Measuring:

Air bearing slides provide the smooth, accurate motion required for coordinate measuring machines, surface profilers, and optical comparators. Zero wear maintains accuracy over millions of cycles.

Medical Imaging:

Air bearing slides position detectors and sources in CT scanners, mammography systems, and microscopy equipment. Smooth motion enables high-quality image acquisition without vibration artifacts.

Laser Processing:

Air bearing slides position optics and workpieces in laser cutting, engraving, and micromachining systems. High accuracy and smooth velocity control improve process quality.

Aerospace and Defense:

Air bearing slides test inertial navigation components, position optical systems, and align precision assemblies. Non-contact operation ensures contamination-free performance.

Research and Development:

Air bearing slides are used in atomic force microscopes, interferometers, and other scientific instruments requiring nanometer positioning accuracy.

Excellent Case: Semiconductor Wafer Inspection

Background: A semiconductor equipment manufacturer needed a positioning stage for 300mm wafer inspection with 50nm accuracy. Traditional mechanical bearing stages generated particles that contaminated wafers and had insufficient smoothness for high-resolution imaging.

Solution: An air bearing slide was designed with 400mm travel, porous carbon bearings, and vacuum preloading. The slide incorporated a linear encoder with 1nm resolution and was constructed from aluminum with black anodized finish. Air pressure of 70 PSI maintained a 10μm air gap.

Results:

• Positioning Accuracy: Achieved ±50nm over full travel
• Particle Generation: Zero measurable particle generation
• Smoothness: Velocity ripple reduced to 0.1 percent
• Throughput: Scan speed increased from 50mm/s to 200mm/s
• Reliability: Zero maintenance after 2 years of 24/7 operation

This case demonstrates how the air bearing slide delivers contamination-free, nanometer-precision motion for demanding semiconductor applications.

Installation Best Practices:

Proper installation ensures the air bearing slide performs reliably. Mount the slide on a flat, rigid, vibration-isolated surface. Supply clean, dry, filtered compressed air at specified pressure. Install an in-line filter and regulator to protect the air bearings. Allow the slide to float on the air film before attempting motion. Verify proper alignment between the slide and any mating components. Avoid shock loads that could damage the precision guide surfaces.

Maintenance and Troubleshooting:

Regular maintenance extends air bearing slide life. Monitor air quality and replace filters regularly. Check air pressure at the slide inlet during operation. Listen for unusual air flow noises indicating leaks or blockages. Clean guide surfaces with lint-free cloth and approved solvent. Inspect for damage to guide surfaces if performance degrades.

Conclusion:

The air bearing slide represents the pinnacle of precision linear motion technology, enabling frictionless, wear-free operation with nanometer-level accuracy. By eliminating mechanical contact, it provides smooth motion, zero particle generation, and exceptional repeatability essential for semiconductor, metrology, and medical applications. By understanding the principles, types, and selection criteria outlined in this guide, the right air bearing slide can be selected for any application—from standard single-axis positioning to custom engineered multi-axis systems for demanding precision environments.
