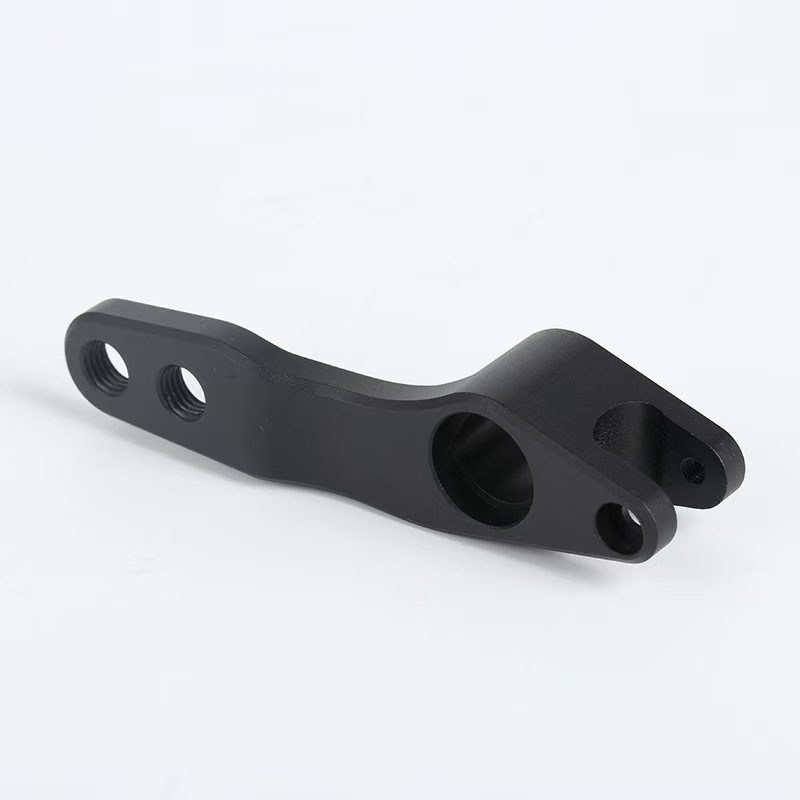

CNC Machined Rocker Arm Parts with DLC Coating for Low Friction Engine Performance

What Are Rocker Arm Parts?

Rocker arm parts are essential precision components used in the internal combustion engine valve train system. Their main function is to transfer camshaft motion into controlled linear movement that opens and closes the engine valves. This process directly influences engine breathing efficiency, combustion stability, fuel economy, and overall power output.

In modern automotive engineering, rocker arms are no longer simple mechanical levers. They are high-precision, dynamically loaded components designed with advanced metallurgy, CNC machining, and surface engineering technologies to withstand extreme RPM, high thermal stress, and continuous fatigue loading.

Function of Rocker Arm Parts in Engine Systems:

The rocker arm acts as a mechanical intermediary between the camshaft and the valves. When the camshaft rotates, its lobes push the rocker arm, which then transfers force to the valve stem.

Key functions include:

• Converting rotational motion into linear motion
• Ensuring accurate valve timing and synchronization
• Reducing mechanical friction in valve actuation
• Supporting high-speed engine operation stability
• Maintaining combustion efficiency and emissions control

Even a small deviation in rocker arm geometry can significantly affect engine performance, making precision manufacturing critical.

Types of Rocker Arm Parts in Modern Engines:

Different engine architectures require different rocker arm designs:

1. Stamped Rocker Arms:

Produced by metal stamping, these are cost-effective and widely used in standard passenger vehicles. They offer lightweight structure but limited performance capacity.

2. Forged Rocker Arms:

Manufactured under high-pressure forging, these parts provide superior grain structure, improved fatigue resistance, and higher load-bearing capacity. Ideal for performance and heavy-duty engines.

3. Roller Rocker Arms:

Equipped with roller bearings at the contact point, these designs significantly reduce friction between camshaft and rocker arm, improving efficiency and reducing wear.

4. Aluminum Rocker Arms:

Lightweight solutions used in racing and high-RPM applications. Require advanced surface treatment to compensate for lower hardness.

5. Performance CNC Machined Rocker Arms:

Fully precision-machined from billet materials, offering maximum dimensional accuracy and customization flexibility.

Material Selection for Rocker Arm Manufacturing:

Material engineering is critical for durability and engine performance.

Common materials include:

• Alloy Steel (42CrMo, SCM440, 40Cr)
  High strength, excellent fatigue resistance, widely used in automotive OEM applications.
• Carbon Steel
  Economical solution for standard engines with moderate load conditions.
• Stainless Steel (304, 316 variants)
  Used in corrosive or high-moisture environments, offering excellent corrosion resistance.
• Aluminum Alloys (6061-T6, 7075-T6)
  Lightweight materials used in motorsport and high-performance engines.

Advanced Surface Treatments for Rocker Arm Parts:

To ensure durability under extreme operating conditions, surface engineering is widely applied:

• Carburizing Treatment – Increases surface hardness and wear resistance
• Nitriding Process – Enhances fatigue strength and reduces friction
• DLC (Diamond-Like Carbon) Coating – Ultra-low friction and high wear resistance
• Black Oxide Coating – Corrosion protection and aesthetic finish
• Hard Anodizing (Aluminum Parts) – Improves surface hardness and thermal resistance

These treatments significantly extend service life and improve engine reliability.

Precision Manufacturing Process:

The production of rocker arm parts involves multiple high-precision steps:

1. Material Preparation:

High-grade alloy steel or aluminum billets are selected based on performance requirements.

2. Forging or CNC Machining:

Forging improves internal grain structure, while CNC machining ensures tight dimensional tolerances.

3. Heat Treatment:

Processes such as quenching and tempering enhance hardness, toughness, and fatigue resistance.

4. Precision Grinding:

Critical contact surfaces are ground to micron-level accuracy to ensure smooth operation.

5. Surface Treatment:

Coating or nitriding is applied depending on application requirements.

6. Final Inspection:

Includes CMM inspection, hardness testing, surface roughness measurement, and fatigue validation.

Performance Advantages of High-Quality Rocker Arm Parts:

High-performance rocker arm components deliver significant engineering benefits:

• Improved valve timing precision
• Reduced mechanical friction losses
• Enhanced engine horsepower and torque stability
• Increased fuel efficiency and lower emissions
• Extended service life under high RPM conditions
• Better thermal stability in extreme environments

These advantages are especially critical in turbocharged, racing, and heavy-duty engines.

Application Areas:

Rocker arm parts are widely used across multiple industries:

• Passenger vehicles (sedans, SUVs, EV hybrid engines)
• High-performance sports cars
• Heavy-duty trucks and commercial vehicles
• Motorcycles and racing engines
• Marine propulsion systems
• Agricultural machinery engines
• Industrial generator engines

Polestar Engineering Case Study:

At Polestar, we specialize in high-precision rocker arm parts manufacturing for global OEM and aftermarket clients.

Customer Requirement:

A European automotive engineering company required forged rocker arm assemblies for a high-RPM turbocharged engine platform. The key challenges included:

• Extremely tight tolerance control (±0.01 mm)
• High fatigue resistance under continuous 7000+ RPM operation
• Friction reduction for improved fuel economy
• Long-term durability under thermal cycling conditions

Engineering Solution by Polestar:

• Selected 42CrMo high-strength alloy steel
• Applied controlled precision forging process for grain optimization
• Conducted CNC multi-axis machining for accuracy
• Implemented gas nitriding surface treatment
• Performed full CMM inspection + fatigue simulation testing

Results Delivered:

• 35% improvement in wear resistance
• Significant reduction in friction coefficient
• Stable performance under high-load engine conditions
• Zero batch deviation across production runs

This project demonstrates Polestar’s capability in delivering OEM-level rocker arm solutions with consistent global quality standards.

Quality Assurance & Manufacturing Standards:

To ensure international reliability, all rocker arm parts follow strict quality systems:

• ISO 9001 certified production system
• IATF 16949 automotive compliance
• Full material traceability
• Statistical process control (SPC)
• 100% dimensional inspection for critical features
• Fatigue and durability lifecycle testing

Custom Engineering Capabilities:

Polestar provides full customization for rocker arm components:

• OEM / ODM design support
• Material optimization based on engine load
• Lightweight structural design
• Surface engineering customization
• Prototype development and mass production scaling
• Performance optimization for racing applications

Industry Trends in Rocker Arm Technology:

Modern engine development is driving innovation in rocker arm design:

• Lightweight design for fuel efficiency
• Integration with variable valve timing systems (VVT)
• Low-friction roller and bearing systems
• Advanced coating technologies for ultra-low wear
• CNC billet machining replacing traditional stamping
• Hybrid engine compatibility improvements

Conclusion:

Rocker arm parts are critical precision components that directly influence engine performance, efficiency, and reliability. With continuous advancements in materials, CNC machining, and surface engineering, modern rocker arms have evolved into highly engineered performance parts rather than simple mechanical levers.

Polestar Metal Products delivers high-performance custom rocker arm solutions for global automotive and industrial clients, ensuring precision, durability, and consistent OEM-level quality.
