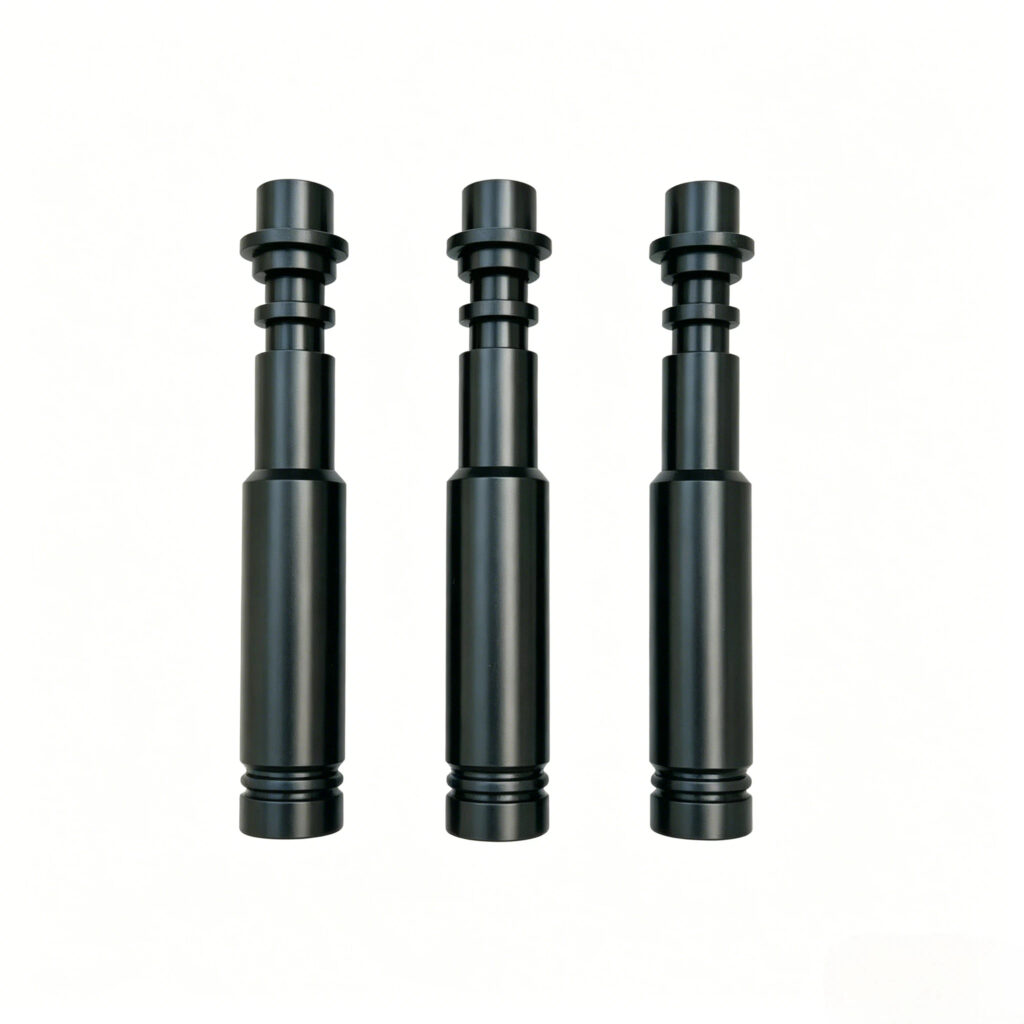

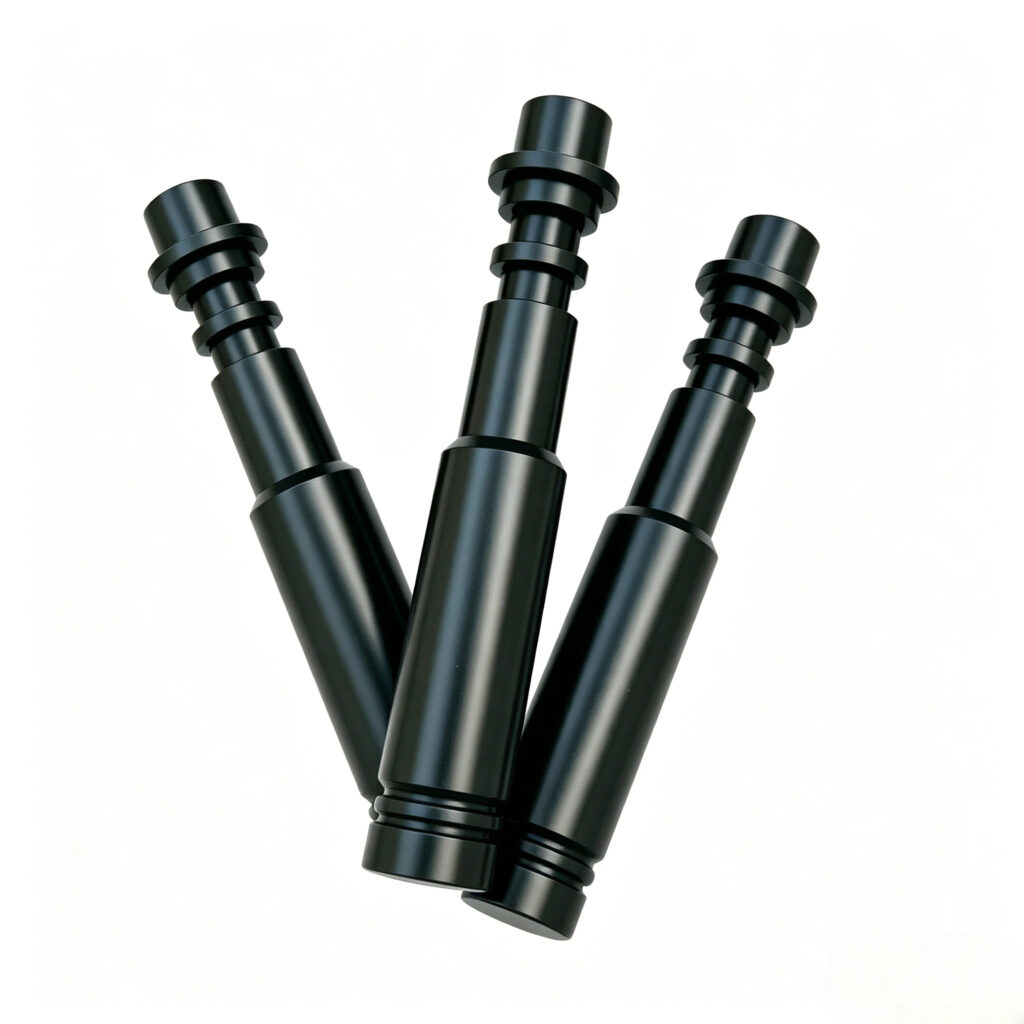

Reliable 50mm CNC Machined Turned Shaft For Automotive and Industrial Machinery
CNC machined turned shafts are precision-engineered components created through CNC turning processes. These shafts are known for their high accuracy and consistent dimensional tolerances, making them essential for a wide variety of mechanical applications. Typically made from durable metals, CNC turned shafts are used in industries like automotive, aerospace, and industrial machinery, where precision and reliability are critical
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
CNC machined turned shafts are precision-engineered components created through CNC turning processes. These shafts are known for their high accuracy and consistent dimensional tolerances, making them essential for a wide variety of mechanical applications. Typically made from durable metals, CNC turned shafts are used in industries like automotive, aerospace, and industrial machinery, where precision and reliability are critical.
What is a Turned Shaft?
A turned shaft is a cylindrical component that is machined to precise specifications using a turning process, usually in a lathe. The material is rotated while a cutting tool removes material to create the desired shape and dimensions. Turned shafts are widely used in mechanical systems to transfer rotational motion, support bearings, or act as connectors between different machine elements. CNC (Computer Numerical Control) turning enhances the accuracy and repeatability of the shaft production process, ensuring that each shaft meets the exact specifications required.
Materials Used in CNC Machined Turned Shafts:
CNC machined turned shafts are made from a variety of high-performance materials to ensure durability, strength, and resistance to wear:
- Carbon Steel: Commonly used for general-purpose applications due to its strength and cost-effectiveness. Carbon steel shafts are ideal for low to medium-duty applications.
- Stainless Steel: Offers excellent corrosion resistance and is ideal for harsh environments or applications requiring high strength, such as in aerospace and medical industries.
- Alloy Steel: Known for its toughness and ability to withstand high stress, alloy steel shafts are often used in heavy-duty applications.
- Aluminum: Lightweight and corrosion-resistant, aluminum is suitable for industries like aerospace and automotive where weight reduction is critical.
- Brass: Offers good machinability and corrosion resistance, making it ideal for low-friction applications and environments that require resistance to corrosion.
These materials ensure that CNC machined turned shafts meet the specific demands of each application.
Advantages of CNC Turned Shafts:
- High Precision: CNC turning provides excellent accuracy and tight tolerances, ensuring that each shaft is produced to the exact specifications required.
- Consistency: The automated nature of CNC turning ensures that every shaft produced is identical, providing consistent quality in large volumes.
- Complex Geometries: CNC machining allows for the production of shafts with complex geometries, such as grooves, threads, and custom features, all with high precision.
- Durability: CNC turned shafts made from materials like stainless steel or alloy steel offer superior resistance to wear and corrosion, extending the life of the components they are used in.
- Cost-Effective for Mass Production: The precision and repeatability of CNC turning processes make it an efficient solution for high-volume production of shafts at competitive prices.
Surface Treatments for CNC Turned Shafts:
To enhance the performance and longevity of CNC machined turned shafts, various surface treatments can be applied:
- Hardening: Heat treatment processes such as induction hardening or carburizing are used to increase the surface hardness of the shaft, improving wear resistance.
- Anodizing: For aluminum shafts, anodizing provides an additional layer of protection against corrosion while improving surface finish and aesthetics.
- Plating: Electroplating or chrome plating can be used to improve the shaft’s resistance to corrosion and provide a smooth, shiny finish.
- Polishing: Polishing the shaft surface can reduce friction and improve aesthetics, making it ideal for applications where smooth surfaces are required.
- Coating: Protective coatings such as PTFE or ceramic coatings are applied to reduce friction and enhance the durability of the shaft in demanding environments.
These treatments enhance the performance of CNC machined turned shafts and ensure they meet the rigorous demands of various industries.
Excellent Case Studies:
Selection:
A leading aerospace manufacturer required a series of CNC machined turned shafts for their jet engine assembly. The shafts needed to meet strict aerospace standards, including high strength, resistance to fatigue, and precise dimensional tolerances. After reviewing their requirements, we recommended high-strength alloy steel shafts with advanced heat treatment for improved fatigue resistance.
Result:
The custom CNC machined turned shafts performed exceptionally well under the extreme conditions of jet engine operation. The high-strength alloy steel and heat treatment provided the durability required for continuous use in high-pressure environments. The manufacturer reported improved performance, reduced maintenance costs, and longer service life for their engine components, leading to a significant reduction in downtime.
