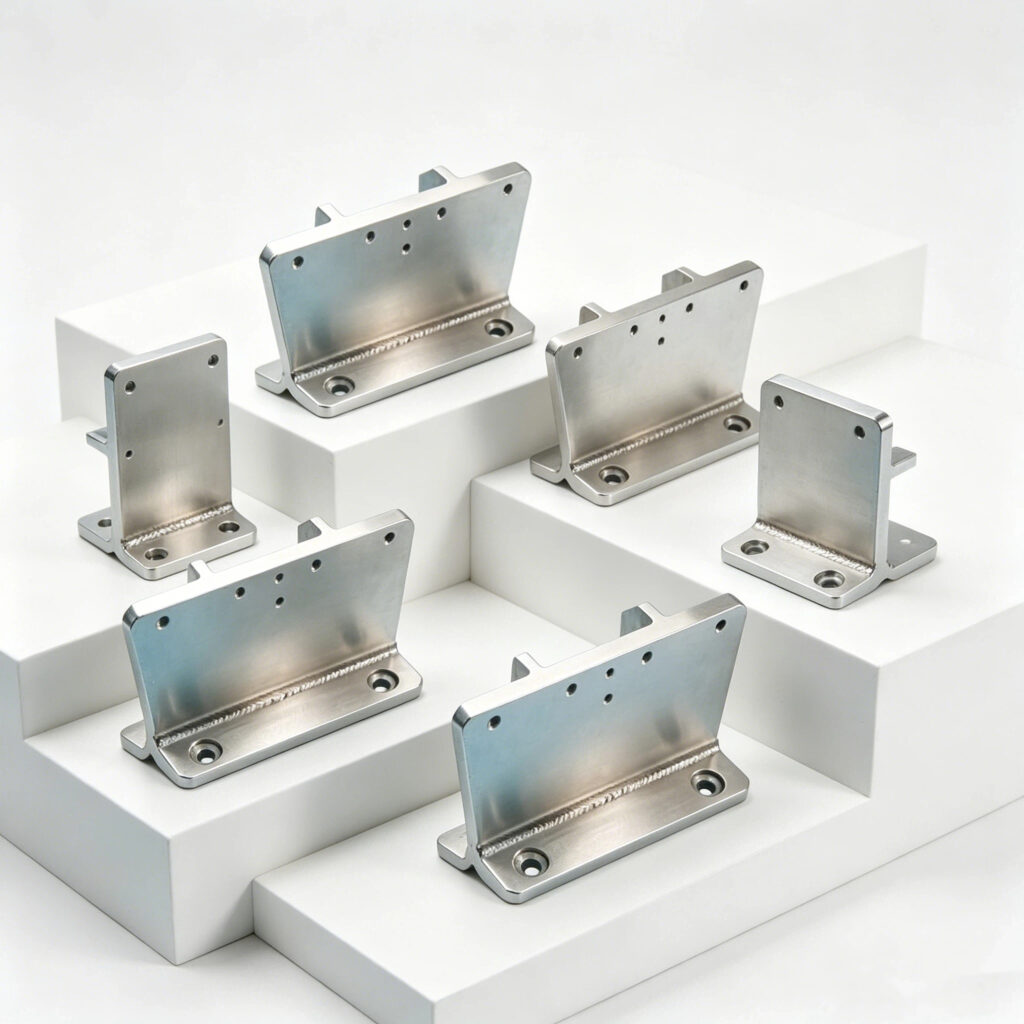

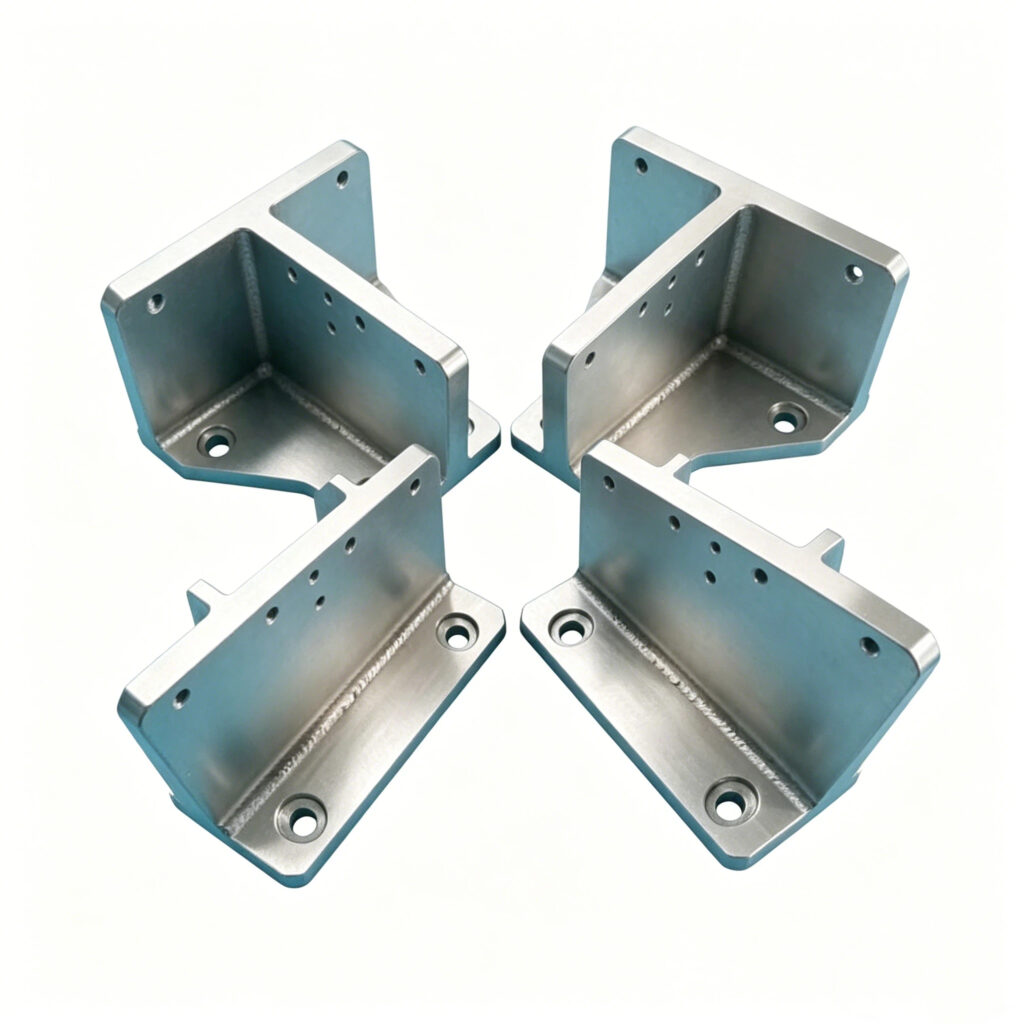

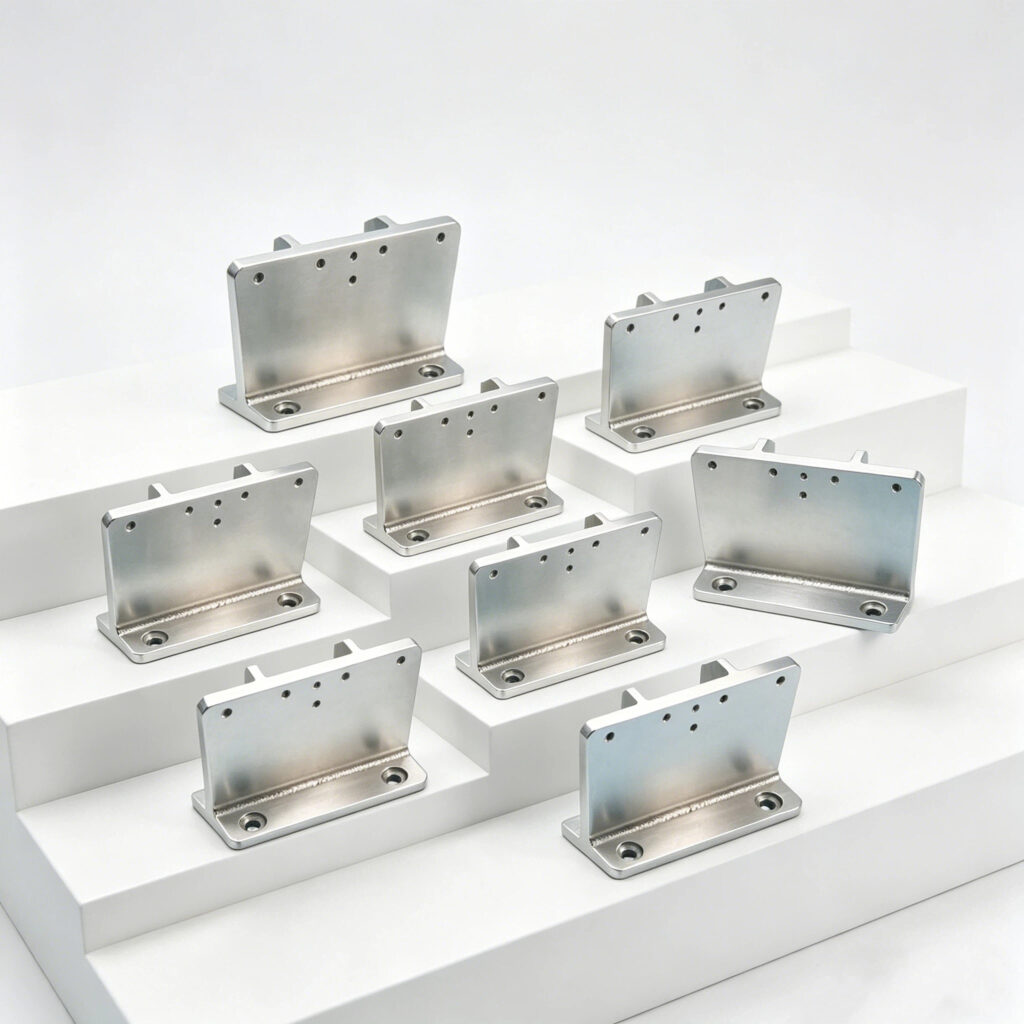

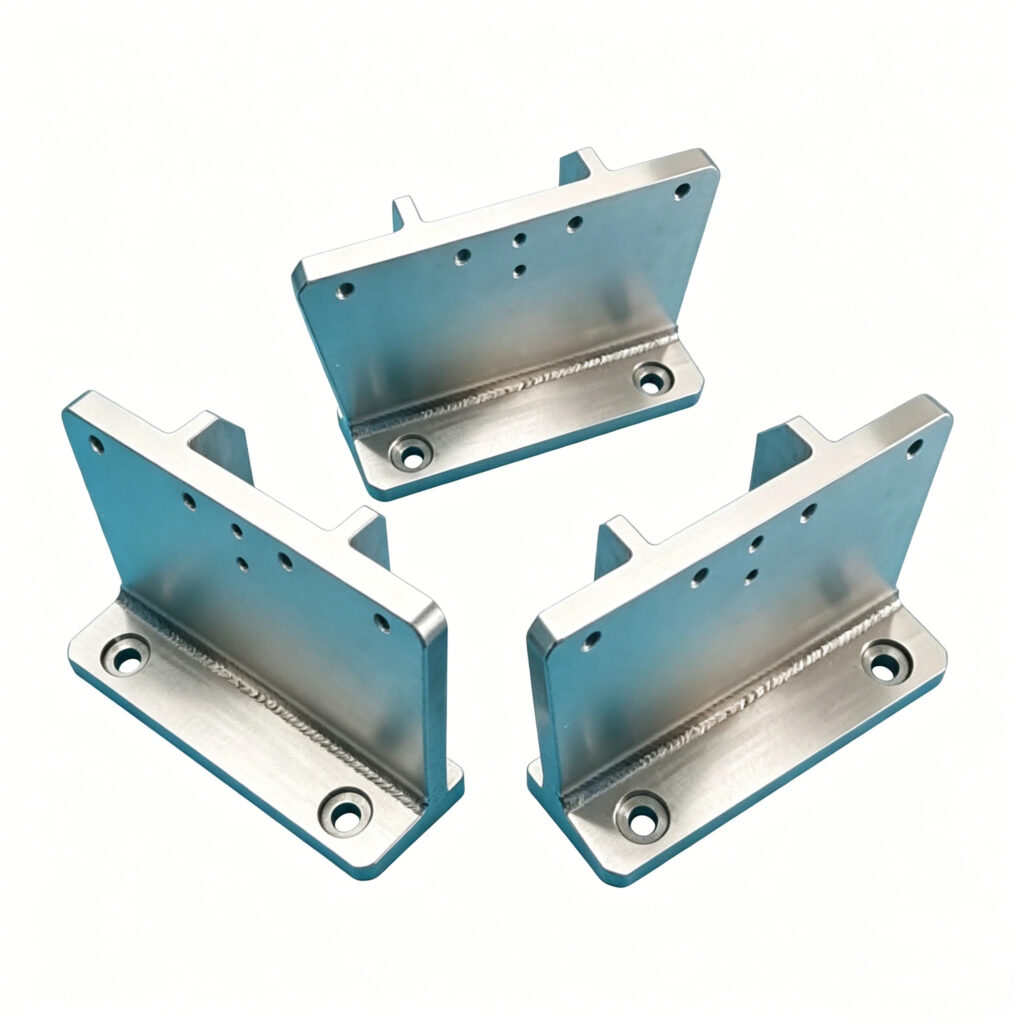

6061-T6 Aluminum Machined Bracket for Industrial Equipment Reliable Custom CNC Machined Parts

Machined brackets are structural support components manufactured through CNC milling, turning, or 5-axis machining processes, delivering dimensional tolerances of ±0.05 mm and surface finishes down to Ra 0.8 μm. These load-bearing elements provide critical mounting interfaces for industrial machinery, automotive systems, and aerospace assemblies.

What is a Machined Bracket?

A machined bracket is a rigid structural component—typically L-shaped, U-shaped, or complex contoured geometry—fabricated from solid billet material through material removal processes. Unlike cast or formed brackets, machined variants offer isotropic material properties, precise hole patterns (±0.01 mm positional accuracy), and optimized weight-to-strength ratios through topological design.

Materials:

• 6061-T6 Aluminum: Ultimate tensile strength 310 MPa, 95% machinability rating—optimal for general industrial applications
• 7075-T6 Aluminum: 572 MPa UTS, strength-to-weight ratio superior to mild steel—aerospace primary structures
• 304/316 Stainless Steel: 205 MPa yield strength, corrosion resistance for marine/chemical environments
• Mild Steel 1018: Cost-effective option for non-corrosive indoor applications
• Titanium Ti-6Al-4V: 950 MPa UTS, 4.43 g/cm³ density for high-performance motorsport
• PEEK/GFRP: Composite brackets for EMI-sensitive or lightweight applications

Surface Treatments:

• Clear Anodizing (Type II): 5–15 μm coating, MIL-A-8625F, electrical insulation 500V
• Hard Anodizing (Type III): 25–75 μm, HV 350–500, wear resistance for sliding contact
• Zinc Plating: ASTM B633, 8–12 μm thickness, 96-hour salt spray resistance
• Powder Coating: 60–100 μm epoxy/polyester, color customization, UV stability
• Chem Film (Alodine): MIL-DTL-5541, corrosion protection without dimensional change
• Passivation: ASTM A967 for stainless steel, enhancing corrosion resistance

Application Fields:

• Industrial automation framework (robot mounting)
• Automotive engine bay components (sensors, fluid reservoirs)
• Aerospace avionics mounting (DO-160G vibration compliance)
• Medical device structural supports (ISO 13485)
• Renewable energy systems (solar tracker mechanisms)
• Defense/military equipment (MIL-STD-810G shock resistance)

Product Advantages:

Machined brackets eliminate porosity risks inherent in castings, providing consistent fatigue performance (10⁷ cycles at 0.5×UTS). CNC manufacturing enables complex internal ribbing and lightening pockets, reducing weight 30–40% versus welded fabrications while maintaining stiffness. Rapid prototyping capability (48-hour turnaround) accelerates product development cycles.

Polestar Excellent Case:

Selection:

An electronics manufacturer needed a custom machined bracket for securing components within a high-end audio equipment system. The bracket had to withstand vibrations, provide secure mounting for the sensitive components, and fit within the tight design constraints of the device. The manufacturer selected a precision-machined aluminum bracket due to its lightweight properties, corrosion resistance, and ability to be fabricated with tight tolerances.

Result:

The custom machined bracket perfectly met the specifications, securely holding the internal components of the audio equipment in place. The aluminum material was lightweight yet strong enough to prevent any deformation under pressure, while also being corrosion-resistant in environments with fluctuating humidity. The precision-machined design ensured that the bracket fit perfectly into the compact assembly, without compromising the device’s performance. The result was a significant improvement in product reliability, with the manufacturer reporting a 30% reduction in component damage during shipping and handling. The machined bracket helped enhance the overall build quality of the audio system, contributing to a stronger brand reputation.

Why Choose Us?

Our 5-axis machining centers achieve complex bracket geometries in single setups, maintaining perpendicularity within 0.01 mm across 300 mm spans. We provide first-article inspection reports (FAIR) per AS9102, material certifications (mill test reports), and CMM dimensional validation. DFMA consulting services optimize designs for manufacturability, reducing production costs 15–25%.

FAQs:

Q: What wall thickness is required for machined aluminum brackets?

A: Minimum 2.0 mm for 6061-T6 to prevent machining distortion; 3.0 mm recommended for 7075-T6 due to higher cutting forces. Thinner walls (1.0–1.5 mm) achievable with specialized fixturing and vibration damping.

Q: Are machined brackets cost-competitive with welded fabrications?

A: For quantities >500 units annually, machined brackets often achieve lower total cost of ownership due to eliminated welding labor, reduced inspection requirements, and superior dimensional consistency. Break-even analysis available upon request.
