Product Details

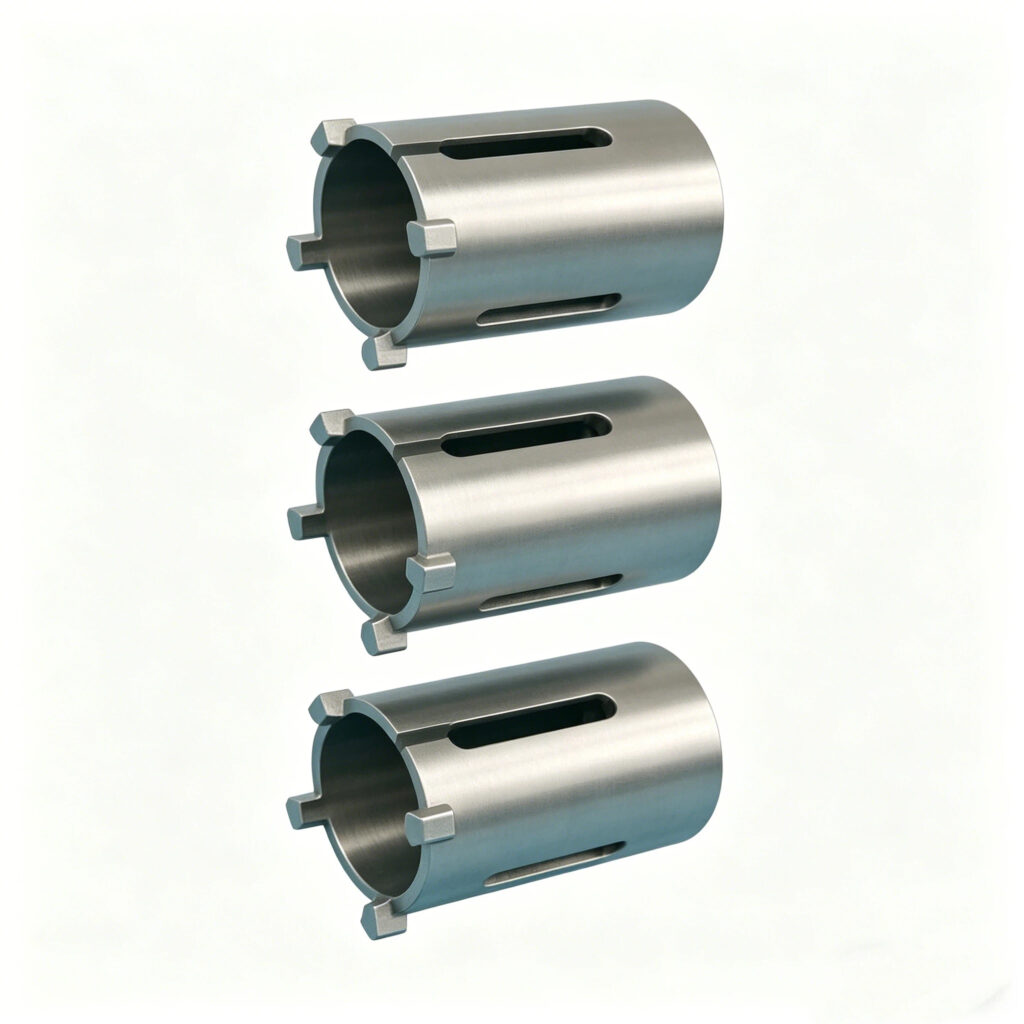

Clamping sleeves are precision-engineered cylindrical components that secure tooling or workpieces through radial elastic deformation, achieving concentricity within 0.005 mm. These DIN 6499-standardized elements enable rapid tool changes in CNC machining centers while maintaining repeatability across 10,000+ clamping cycles.
What is a Clamping Sleeve?
A clamping sleeve is a slotted, spring-tempered cylindrical device that grips cutting tools or cylindrical workpieces via elastic radial contraction. When compressed axially (through collet nuts or hydraulic actuators), the tapered outer surface slides within a matching bore, reducing internal diameter to generate uniform radial clamping force. Standard tapers include 8°, 16°, and 20° for ER, TG, and hydraulic collet systems.
Materials:
- 65Mn Spring Steel: HRC 44–48 after heat treatment, 1,200 MPa tensile strength
- 20CrMnTi Carburizing Steel: Case-hardened to HRC 58–62, core toughness HRC 30–35
- 17-4PH Stainless Steel: H900 condition, 1,310 MPa UTS for corrosive environments
- Beryllium Copper (C17200): Non-sparking, anti-galling properties for explosive atmospheres
- Composite Polymer: PEEK-based for high-speed spindles (dn > 500,000)
Surface Treatments of Clamping Sleeve:
- Black Oxide: MIL-C-13924 corrosion protection, 0.5–1.5 μm thickness
- TiN Coating: 2–4 μm titanium nitride (HV 2400) reducing friction coefficient to 0.4
- DLC Coating: Diamond-like carbon for ultra-low friction (μ < 0.1) and wear resistance
- Electropolishing: Ra 0.2 μm for medical/pharmaceutical applications
- Phosphating: Manganese phosphate for lubricant retention (ISO 9717)
Application Fields:
- CNC milling/drilling collet systems (ER16–ER50)
- Turning center tool holding (hydraulic chucks)
- Workpiece clamping in grinding operations
- PCB drilling spindles (high-speed applications)
- Medical device manufacturing (bone drills, reamers)
- Aerospace component fixturing
Product Advantages of Clamping Sleeve:
Clamping sleeves provide uniform 360° radial grip force distribution, eliminating the point-loading stress concentrations of jaw chucks. Runout accuracy of <0.003 mm at 3×D ensures precision machining capabilities. The elastic deformation mechanism allows rapid tool changes (3–5 seconds) while maintaining <0.01 mm repeatability.
Success Case about Clamping Sleeve:
A precision medical device manufacturer implemented 17-4PH stainless clamping sleeves in their Swiss-type lathes for titanium bone screw production. The corrosion-resistant material eliminated rust contamination in sterile environments, while the 0.002 mm TIR accuracy enabled thread grinding to ISO 5835 Class 4 standards. Tool changeover time reduced 60% versus three-jaw chuck systems.
Why Choose Us?
Our clamping sleeves are manufactured on CNC grinding centers with in-process gauging, ensuring taper angle accuracy within ±0.5 minutes of arc. All sleeves undergo 100% crack detection (dye penetrant inspection) and dynamic balance testing (G2.5 @ 25,000 RPM). We stock DIN 6499 standard sizes with 24-hour shipping and customize special geometries for proprietary toolholding systems.
FAQs:
1. What is the purpose of a clamping sleeve?
A clamping sleeve is used to hold parts or components securely in place. They are commonly used in mechanical assemblies, such as shafts or couplings, to ensure that parts remain aligned and do not move during operation. They are particularly useful in high-torque or high-pressure environments.
2. What materials are clamping sleeves made from?
They are typically made from steel, aluminum, or brass. Steel is often used for heavy-duty applications due to its strength, while aluminum offers a lightweight and corrosion-resistant alternative for less demanding environments. Brass is commonly used when corrosion resistance is a key consideration.
3. Can clamping sleeves be used in high-pressure applications?
Yes,they are designed to withstand high-pressure systems. Their ability to hold parts securely under stress makes them ideal for use in industries like automotive, aerospace, and heavy machinery. Choosing the right material and size ensures they perform optimally in high-pressure conditions.
4. How do I select the right clamping sleeve for my application?
To select the correct clamping sleeve, consider factors such as the size of the components, the pressure and torque requirements, and the environmental conditions. Materials like steel are better for high-stress applications, while aluminum is suitable for lighter-duty tasks. Consult a professional for guidance if you are unsure.
