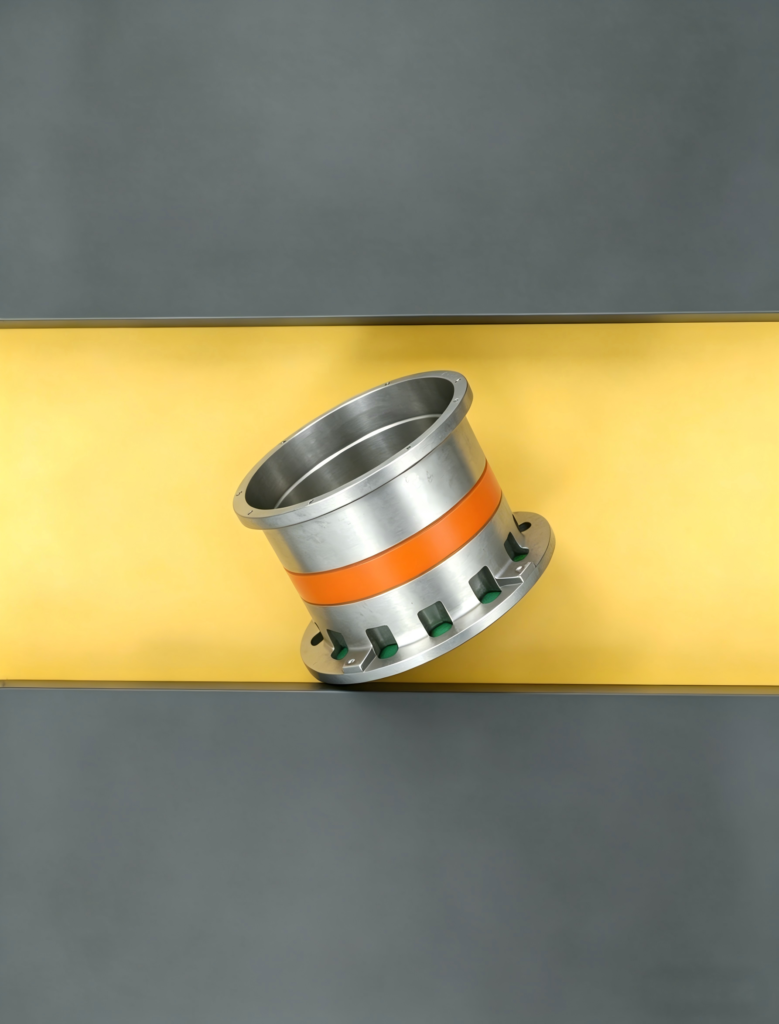

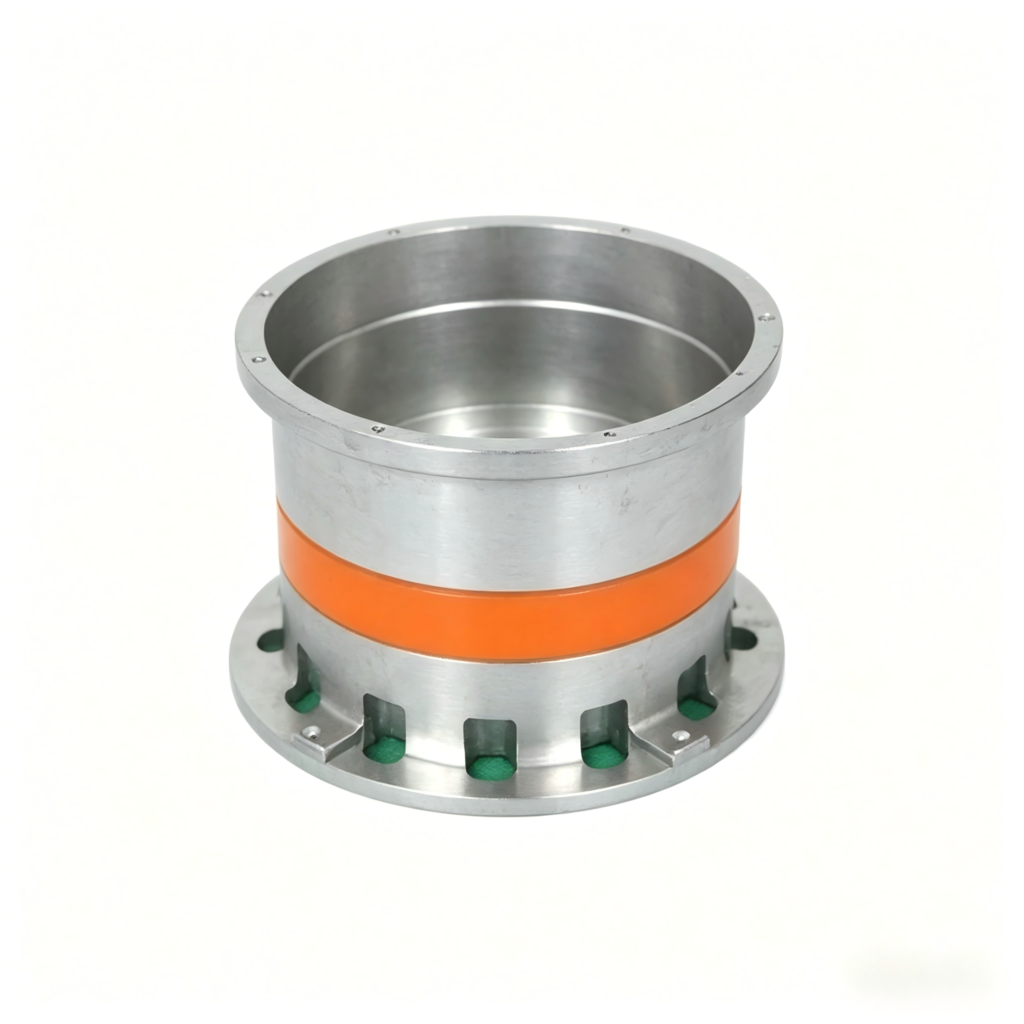

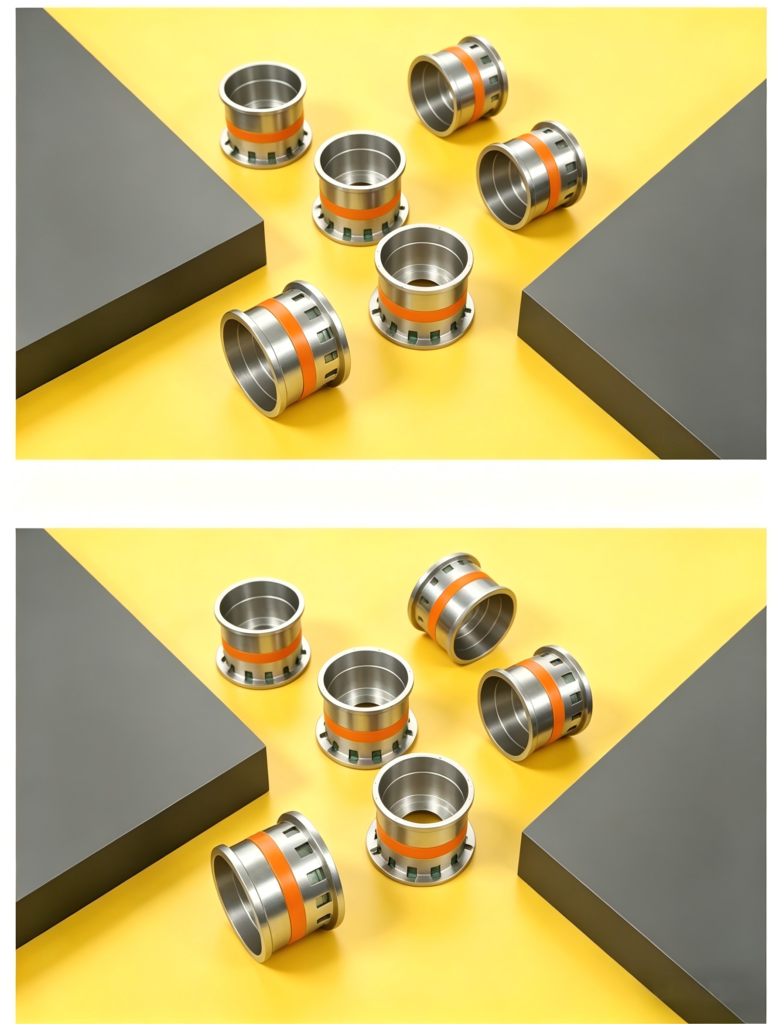

Precision Machined Custom Reliable Aluminum Bearing Housing 6063 Aluminum Take Up Housing

An aluminum bearing housing is a lightweight, corrosion-resistant enclosure that supports and protects bearings in rotating machinery. It provides precise shaft alignment and effective heat dissipation. Manufactured from 6061, 7075, or 5083 aluminum. Available in pillow block, flanged, split, and take-up styles with custom bore sizes from 5mm to 100mm. Features include precision machined bearing seats, anodized or powder coated finishes, and mounting holes for secure installation. Suitable for conveyors, fans, pumps, agricultural equipment, and marine applications. Custom housings available with specific bolt patterns and tolerances.

What Is an Aluminum Bearing Housing?

An aluminum bearing housing is a precision-machined enclosure that supports and protects a bearing while providing mounting interfaces for attachment to machinery frames or structures. Unlike cast iron housings, the aluminum bearing housing offers significant weight savings, natural corrosion resistance, and excellent thermal conductivity for heat dissipation. It maintains precise alignment between the bearing and shaft while protecting the bearing from contaminants.

It is characterized by its lightweight construction, precision bearing seat, and mounting features. Typical features include a precision-machined bore that holds the bearing outer race, mounting flanges or feet with bolt holes, grease fittings for lubrication, seal grooves for contamination protection, and split or solid construction depending on application requirements. Bore sizes typically range from 5mm to 100mm, with housing styles including pillow block, flanged, take-up, and split designs. The aluminum bearing housing enables reliable bearing operation in weight-sensitive and corrosion-prone environments.

Common Aluminum Alloys for Bearing Housings:

6061 Aluminum is the most common alloy for aluminum bearing housing production. It offers excellent machinability, good strength, superior corrosion resistance, and weldability. Suitable for general industrial applications including conveyors, fans, and pumps.

7075 Aluminum provides the highest strength among common aluminum alloys. Offers excellent strength-to-weight ratio for demanding applications. Suitable for aerospace, high-load, and performance-critical applications.

5083 Aluminum offers superior corrosion resistance, especially in marine and saltwater environments. Excellent for marine applications, chemical plants, and outdoor installations.

6063 Aluminum provides good extrudability and smooth surface finish. Suitable for architectural and decorative bearing housing applications.

Types of Aluminum Bearing Housings:

Pillow Block Aluminum Bearing Housing:

Features a base mounting surface with two or four bolt holes. Most common configuration for shaft support parallel to the mounting surface. Suitable for conveyors, fans, and general industrial machinery.

Flanged Aluminum Bearing Housing:

Features a flat flange perpendicular to the shaft axis, available in round, square, or oval shapes. Ideal for through-shaft applications or bulkhead mounting.

Split Aluminum Bearing Housing:

Two-piece design allowing installation without removing shaft ends. Essential for shaft locations where access is limited or for easy bearing replacement.

Take-Up Aluminum Bearing Housing:

Adjustable design that allows tensioning of conveyor belts or chains. Features slots or threaded adjustment mechanisms. Suitable for conveyor systems and material handling equipment.

Flangette Aluminum Bearing Housing:

Small, lightweight version for light-duty applications. Suitable for fans, small conveyors, and light industrial equipment.

Key Specifications:

Applications Across Industries:

Conveyor Systems:

Aluminum bearing housings support conveyor rollers and drive shafts in material handling equipment. Lightweight construction reduces overall system weight.

Industrial Fans and Blowers:

Aluminum bearing housings support fan shafts in ventilation systems. Corrosion resistance suits applications with moisture or chemical exposure.

Pumps:

Aluminum bearing housings support pump shafts in water, chemical, and marine pumps. Lightweight design reduces pump weight.

Agricultural Equipment:

Aluminum bearing housings in harvesters, tractors, and planters withstand dust, dirt, and outdoor exposure while resisting corrosion.

Marine Applications:

Aluminum bearing housings on boats and ships resist saltwater corrosion. 5083 alloy provides superior marine-grade performance.

Food Processing:

Aluminum bearing housings with anodized or powder coated finishes meet sanitation requirements. Corrosion resistance withstands washdown environments.

Excellent Case: Marine Conveyor System

Background: A seafood processing plant needed bearing housings for a conveyor system operating in a wet, salty environment. Standard cast iron housings corroded rapidly, requiring replacement every 6 months.

Solution: Aluminum bearing housings were installed using 5083 marine-grade aluminum with hard anodized finish. The housings featured sealed bearings and stainless steel hardware.

Results:

• Corrosion Resistance: No visible corrosion after 2 years of saltwater exposure
• Weight Reduction: 70 percent lighter than cast iron housings
• Service Life: Extended from 6 months to 5+ years
• Maintenance: Reduced replacement frequency by 90 percent
• Sanitation: Smooth anodized surface resisted bacterial growth

This case demonstrates how the aluminum bearing housing delivers corrosion resistance and long service life in demanding marine environments.

Installation Best Practices:

Proper installation ensures the aluminum bearing housing performs reliably. Clean all mounting surfaces thoroughly. Use appropriate fasteners for the housing material. Avoid over-torquing bolts which can distort the aluminum housing. Verify shaft alignment using dial indicators. Apply anti-seize compound to bolts in marine environments. Lubricate bearing through grease fitting after installation.

How to Select the Right Aluminum Bearing Housing:

Choosing the appropriate aluminum bearing housing requires careful consideration of several factors. Shaft diameter determines the required bore size. Load requirements determine housing style and material strength. Environmental conditions influence alloy selection, with 5083 for marine and 6061 for general use. Mounting configuration determines whether pillow block, flanged, or take-up style is needed. Operating temperature range must stay within aluminum limits. Corrosion protection requirements specify anodized or powder coated finishes.

Maintenance and Troubleshooting:

Regular maintenance extends aluminum bearing housing life. Monitor operating temperature for signs of bearing failure. Listen for unusual noise indicating bearing wear. Check mounting bolts for loosening, especially in high-vibration applications. Inspect housing for corrosion or damage. Replace seals if contamination is detected.

Common Failure Modes:

Understanding potential failures helps with preventive maintenance. Corrosion occurs in harsh environments without proper anodizing or coating. Thread stripping from over-torquing bolts, prevented by using torque wrench. Bearing bore wear from bearing spinning in housing, prevented by proper interference fit. Housing cracking from impact or overload, prevented by proper load rating selection.

Conclusion:

The aluminum bearing housing represents an optimal solution for applications requiring lightweight, corrosion-resistant bearing support. By combining precision machining with aluminum’s natural properties, it delivers reliable performance in industries ranging from food processing to marine equipment. By understanding the alloys, types, and selection criteria outlined in this guide, the right aluminum bearing housing can be selected for any application—from standard conveyors to custom engineered solutions for demanding marine and food processing environments.
