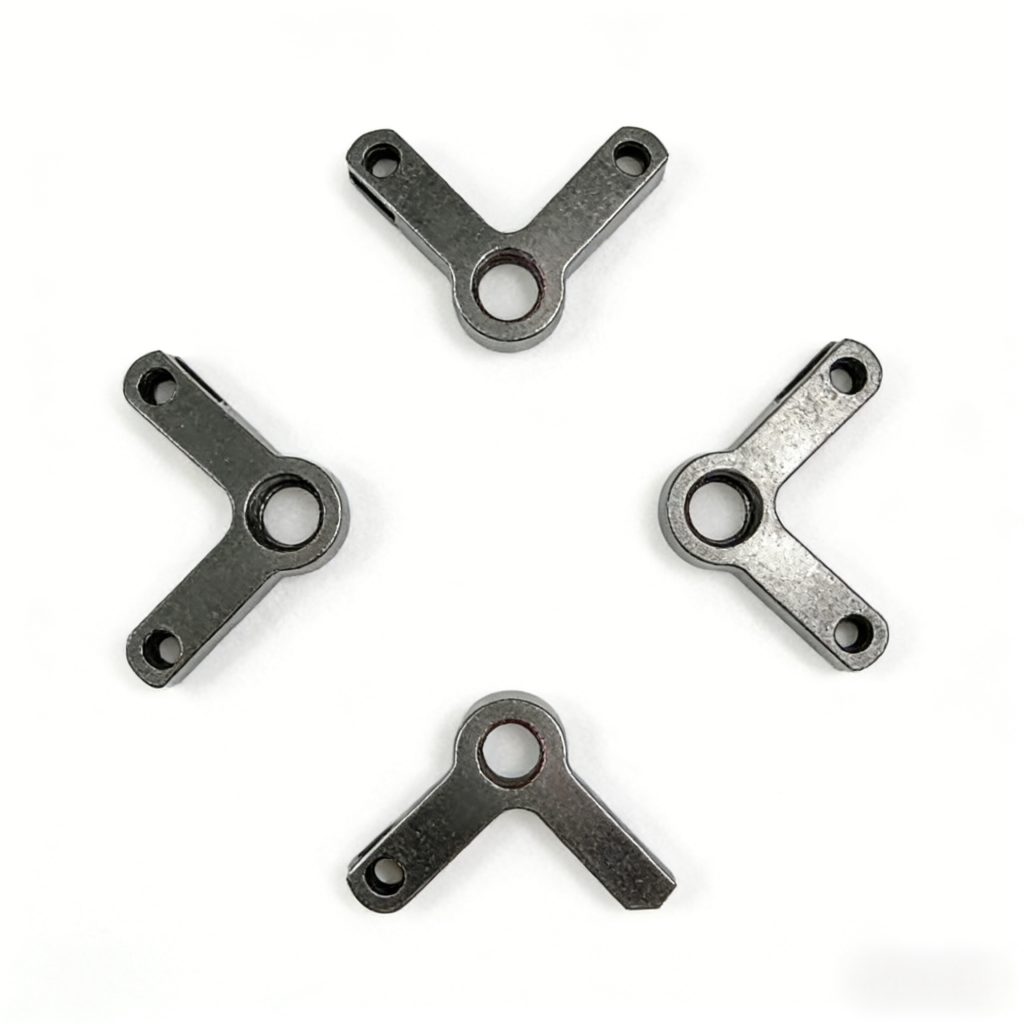

Adaptable Custom Specification Y-Shaped Bracket 5mm to 15mm Thickness Range Premium Stainless Steel Extreme Durability

Precision engineered Y-shaped bracket provides reliable support and secure mounting for tubular structures, pipes, cables, and mechanical assemblies. Manufactured from high strength materials including stainless steel, aluminum, or carbon steel with corrosion resistant surface finish. The unique Y-shaped design distributes loads evenly and accommodates various installation angles. Available in multiple sizes, thickness options, and mounting hole configurations. Ideal for automotive exhaust systems, hydraulic lines, electrical conduit support, solar panel mounting, industrial piping, and structural applications requiring durable, vibration resistant fastening.

What Is a Y-Shaped Bracket?

A Y-shaped bracket is a support component with a forked geometry that resembles the letter “Y”. The bracket typically features a single mounting base or stem that splits into two arms, creating two contact points for supporting round objects such as pipes, tubes, hoses, or cables. This design provides superior load distribution and vibration resistance compared to single-point supports.

Y-shaped brackets are manufactured from various materials including stainless steel, aluminum, carbon steel, and engineered plastics. They are produced through casting, stamping, CNC machining, or fabrication processes depending on volume and application requirements.

Common Materials for Y-Shaped Brackets:

Stainless Steel:

Stainless steel (grades 304 and 316) offers excellent corrosion resistance, high strength, and durability. It is the preferred choice for marine environments, outdoor applications, food processing, and chemical plants.

Carbon Steel:

Carbon steel provides high strength at a lower cost. It is commonly used in industrial and automotive applications. Zinc plating or powder coating adds corrosion protection.

Aluminum:

Lightweight and corrosion-resistant, aluminum Y-shaped brackets are ideal for applications where weight reduction is important, such as aerospace, automotive, and portable structures.

Cast Iron:

Cast iron offers excellent vibration damping and rigidity for heavy-duty industrial applications.

Engineered Plastics:

Nylon, polypropylene, or glass-filled composites provide lightweight, non-conductive, and corrosion-resistant options for electrical and light-duty applications.

Manufacturing Processes:

Stamping:

For high-volume production of thin-gauge brackets, stamping offers cost-effective, consistent quality.

Casting:

Die casting or sand casting produces complex Y-shaped brackets with integrated features. Ideal for medium to high volumes.

CNC Machining:

For custom or low-volume production, CNC machining from solid bar or plate provides tight tolerances and design flexibility.

Fabrication:

Welded assemblies from cut plate or laser-cut parts are suitable for large, heavy-duty brackets.

Key Advantages of Y-Shaped Brackets:

Superior Load Distribution:

The two-arm design spreads the load across two contact points, reducing stress on any single point and preventing damage to supported components.

Excellent Vibration Resistance:

The Y-shaped geometry provides inherent vibration damping, making these brackets ideal for engines, exhaust systems, and rotating machinery.

Secure Positioning:

The forked design prevents lateral movement of pipes or tubes, maintaining precise alignment even under dynamic conditions.

Versatile Mounting Angles:

Many Y-shaped brackets accommodate multiple installation angles, allowing adaptation to various spatial constraints.

Easy Installation:

Simple design with standard mounting holes enables quick, tool-friendly installation and removal.

Corrosion Resistance:

Material choices and surface treatments provide protection against rust, chemicals, and weathering.

Key Applications Across Industries:

Automotive and Transportation:

Exhaust system hangers and supports, fuel line and brake line brackets, wiring harness supports, air intake tube mounts, and hydraulic line clamps.

Industrial Piping:

Pipe supports for hydraulic and pneumatic systems, conduit and cable tray brackets, hose management in manufacturing cells, and instrumentation line supports.

Solar Energy:

Mounting brackets for solar panel frames, cable management on solar arrays, and support structures for ground-mounted systems.

Marine and Offshore:

Exhaust system supports on boats, fuel line and vent line brackets, and cable and hose management on vessels.

Construction and Structural:

Pipe hangers for plumbing and HVAC systems, electrical conduit supports, cable tray brackets, and railing and handrail connections.

Aerospace:

Fluid line supports in aircraft, cable harness brackets, and lightweight structural connections.

Agricultural Equipment:

Hydraulic line supports, implement hose brackets, and exhaust system hangers.

How to Select the Right Y-Shaped Bracket:

Load Requirements:

Calculate the weight and dynamic forces the bracket must support. Steel brackets handle heavier loads; aluminum and plastic suit lighter applications.

Pipe or Tube Diameter:

Select a bracket with arm spacing and radius that matches the outer diameter of the component being supported.

Material and Environment:

Choose stainless steel for corrosive environments, carbon steel for general industrial use, aluminum for weight savings, or plastic for electrical insulation.

Mounting Surface:

Consider the mounting surface material and orientation. Provide appropriate fasteners and hole patterns.

Vibration Conditions:

For high-vibration applications, select brackets with rubber liners or thicker materials for added damping.

Temperature Range:

Verify that the bracket material can withstand operating temperatures. Stainless steel and carbon steel handle high heat; some plastics have temperature limitations.

Installation Best Practices:

Correct Orientation:

Install the Y-shaped bracket with the arms properly aligned to the supported component. The fork should cradle the pipe or tube securely.

Proper Fasteners:

Use bolts, screws, or rivets appropriate for the mounting surface and load requirements. Apply proper torque.

Rubber Liners:

For metal-to-metal contact or vibration isolation, use rubber-lined Y-shaped brackets or add separate grommets.

Avoid Over-Tightening:

Excessive clamping force can deform the bracket or damage the supported component.

Periodic Inspection:

Check for loosening, corrosion, wear, or fatigue cracks during routine maintenance.
Check for loosening, corrosion, wear, or fatigue cracks during routine maintenance.

Y-Shaped Bracket vs Other Bracket Types:

Custom Y-Shaped Bracket Options:

When standard sizes do not fit, custom Y-shaped brackets can be manufactured to specification:

• Custom arm spacing for specific pipe diameters
• Extended stem length for standoff requirements
• Additional mounting holes or slots
• Special materials or coatings
• Integrated rubber liners or bushings
• Angled mounting bases for non-perpendicular surfaces
• Specific hole patterns for OEM equipment

Maintenance and Troubleshooting:

Loose Bracket: Re-tighten fasteners. If loosening recurs, use thread-locking compound or replace with locking nuts.

Corrosion: Replace corroded brackets with stainless steel or properly coated versions.

Fatigue Cracking: Replace cracked brackets immediately. Consider upgrading to a thicker material or adding reinforcement.

Worn Rubber Liners: Replace worn liners to maintain vibration isolation and prevent metal-to-metal contact.

Industry Trends and Innovations:

Rubber-Integrated Brackets: Molded rubber liners provide superior vibration isolation and eliminate separate grommet installation.

Quick-Release Designs: Clamp-style Y-shaped brackets allow tool-free installation and removal for maintenance access.

Lightweight Composites: Glass-filled nylon and carbon fiber composites offer strength with significant weight reduction.

Corrosion-Resistant Coatings: Advanced coatings including PTFE, e-coat, and ceramic coatings extend service life in harsh environments.

Conclusion:

The Y-shaped bracket is a simple yet highly effective component for supporting pipes, tubes, hoses, and cables across countless industries. Its unique forked design provides superior load distribution, vibration resistance, and secure positioning. By selecting the appropriate material, size, and finish, engineers and maintenance professionals can ensure reliable, long-lasting support for critical systems. Whether for automotive exhausts, industrial piping, solar arrays, or marine applications, the Y-shaped bracket delivers proven performance and versatility.
