Description

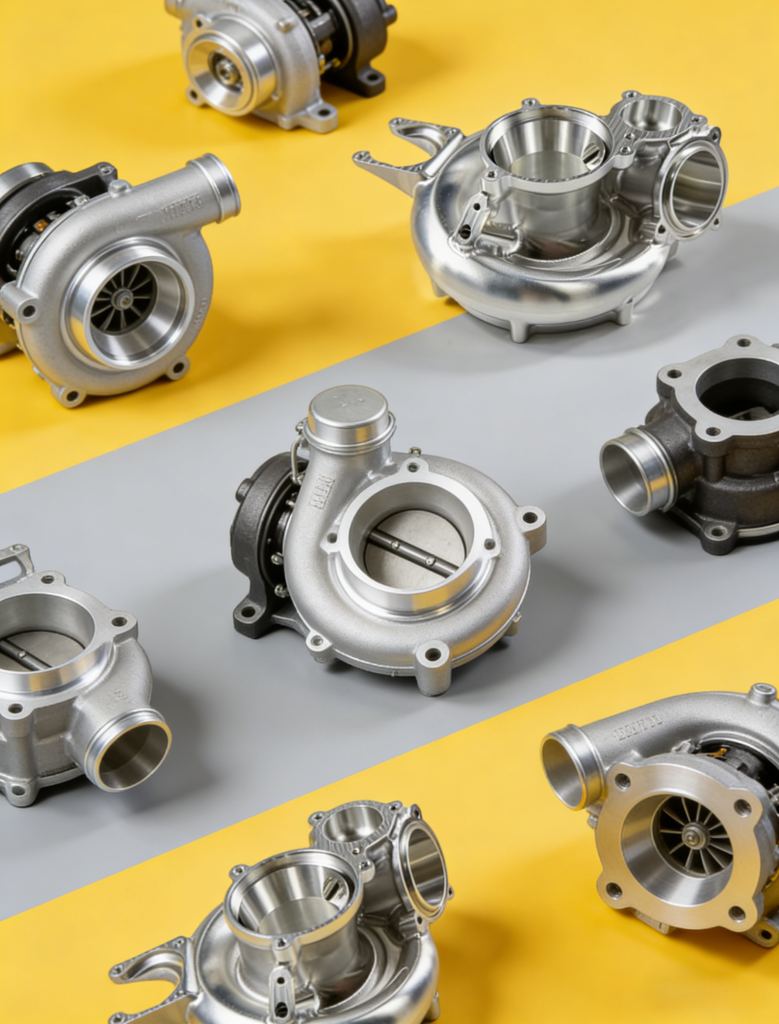

What Is Turbo Compressor Housing Machining?
Turbo Compressor Housing Machining refers to the precision CNC manufacturing process used to produce the compressor housing of a turbocharger. This component is responsible for guiding and compressing incoming air before it enters the engine’s combustion chamber, directly affecting engine efficiency, boost pressure stability, and overall performance.
In modern automotive, marine, and motorsport applications, compressor housings must meet extremely tight tolerances, complex aerodynamic geometries, and high thermal resistance requirements. CNC machining ensures these demanding specifications are consistently achieved.
Function of a Turbo Compressor Housing:
The compressor housing is a critical part of the turbocharger system. Its main functions include:
- Directing airflow into the compressor wheel
- Converting kinetic energy into pressurized air
- Maintaining smooth airflow to reduce turbulence loss
- Supporting stable boost pressure across RPM ranges
A well-machined housing significantly improves turbo response and engine efficiency, especially in high-performance and racing engines.
Manufacturing Process of Turbo Compressor Housing Machining:
Turbo Compressor Housing Machining typically involves multi-axis CNC milling and precision finishing techniques:
1. Material Selection:
Common materials include:
- Aluminum alloys (such as 6061-T6, 7075)
- High-strength forged aluminum
- In some cases, cast aluminum blanks for cost efficiency
These materials offer a balance of lightweight structure, thermal conductivity, and corrosion resistance.
2. 5-Axis CNC Machining:
Advanced 5-axis CNC machining is used to create:
- Complex internal airflow channels
- Volute-shaped compressor paths
- Precise mounting interfaces
This ensures aerodynamic efficiency and dimensional accuracy.
3. Surface Finishing:
Post-machining processes may include:
- CNC polishing or deburring
- Anodizing for corrosion resistance
- Sandblasting for uniform surface texture
Surface quality directly affects airflow smoothness and performance consistency.
4. Quality Control:
Strict inspection ensures:
- Tight tolerance control (often within ±0.01 mm)
- CMM measurement verification
- Airflow consistency checks in high-end applications
Advantages of CNC Turbo Compressor Housing Machining:
- High Dimensional Accuracy: Precision machining ensures consistent fitment with turbo components and compressor wheels.
- Improved Airflow Efficiency: Optimized internal surfaces reduce turbulence and improve air compression efficiency.
- Better Structural Strength: Billet-machined housings offer stronger mechanical integrity than traditional casting.
- Design Flexibility: Supports customized turbo
Application Areas of Turbo Compressor Housing Machining:
Turbo compressor housings manufactured by CNC machining are widely used in:
- Performance and racing engines
- Passenger vehicle turbo systems
- Marine turbocharged propulsion systems
- Industrial air compression equipment
- High-efficiency aftermarket turbo upgrades
Each application requires different levels of precision and airflow optimization.
Why Machining Quality Matters?
In turbo systems, precision directly affects performance. Poor machining can lead to:
- Reduced compressor efficiency
- Turbo lag or unstable boost
- Increased vibration at high RPM
- Premature component wear
High-precision CNC machining eliminates these risks by ensuring geometric consistency and smooth airflow behavior.

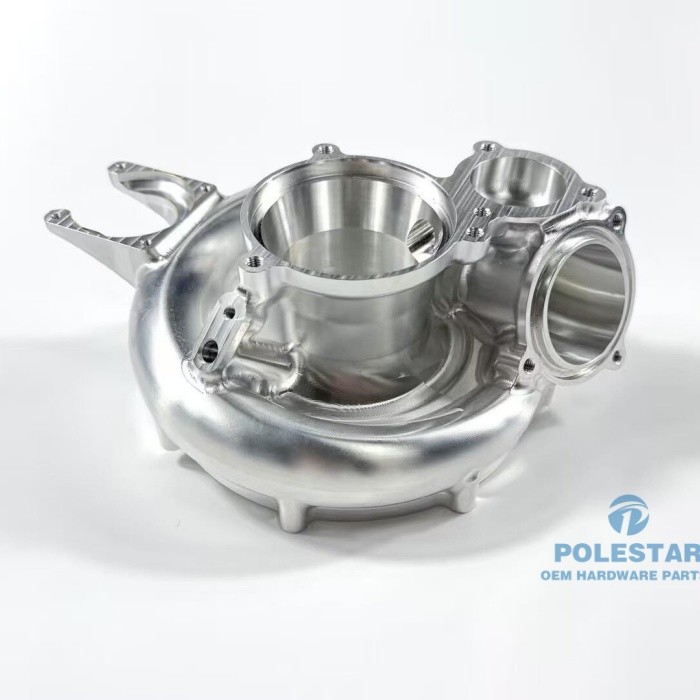

Polestar Case Study: Custom Turbo Compressor Housing
Project Background:
A performance automotive client approached Polestar Metal to develop a custom turbo compressor housing for an upgraded turbo system designed for higher boost pressure and improved throttle response.
The original cast housing suffered from:
- Limited airflow efficiency
- Inconsistent internal surface quality
- Restricted performance at high RPM
Engineering Solution by Polestar:
To resolve these issues, Polestar implemented a full CNC machining solution:
Material: 6061-T6 aluminum billet for strength and thermal stability
Process: 5-axis CNC machining for complete internal geometry control
Key improvements included:
- Redesigned airflow path to reduce turbulence
- Tightened compressor wheel clearance control
- Optimized volute structure for faster air acceleration
- Improved surface finish for smoother air passage
Results:
After implementation, the customer achieved:
- Faster turbo spool response
- More stable boost under load
- Improved airflow efficiency across RPM range
- Better durability under continuous high-temperature operation
The CNC-machined housing also enabled consistent repeatability for small-batch production.
Conclusion:
Turbo Compressor Housing Machining is a critical process in high-performance turbo system manufacturing. By combining advanced CNC technology, precision engineering, and strict quality control, it delivers significant improvements in airflow efficiency, boost stability, and overall engine performance.
Polestar Metal provides customized machining solutions for turbocharger components, supporting both prototyping and production-level requirements for demanding automotive applications.
