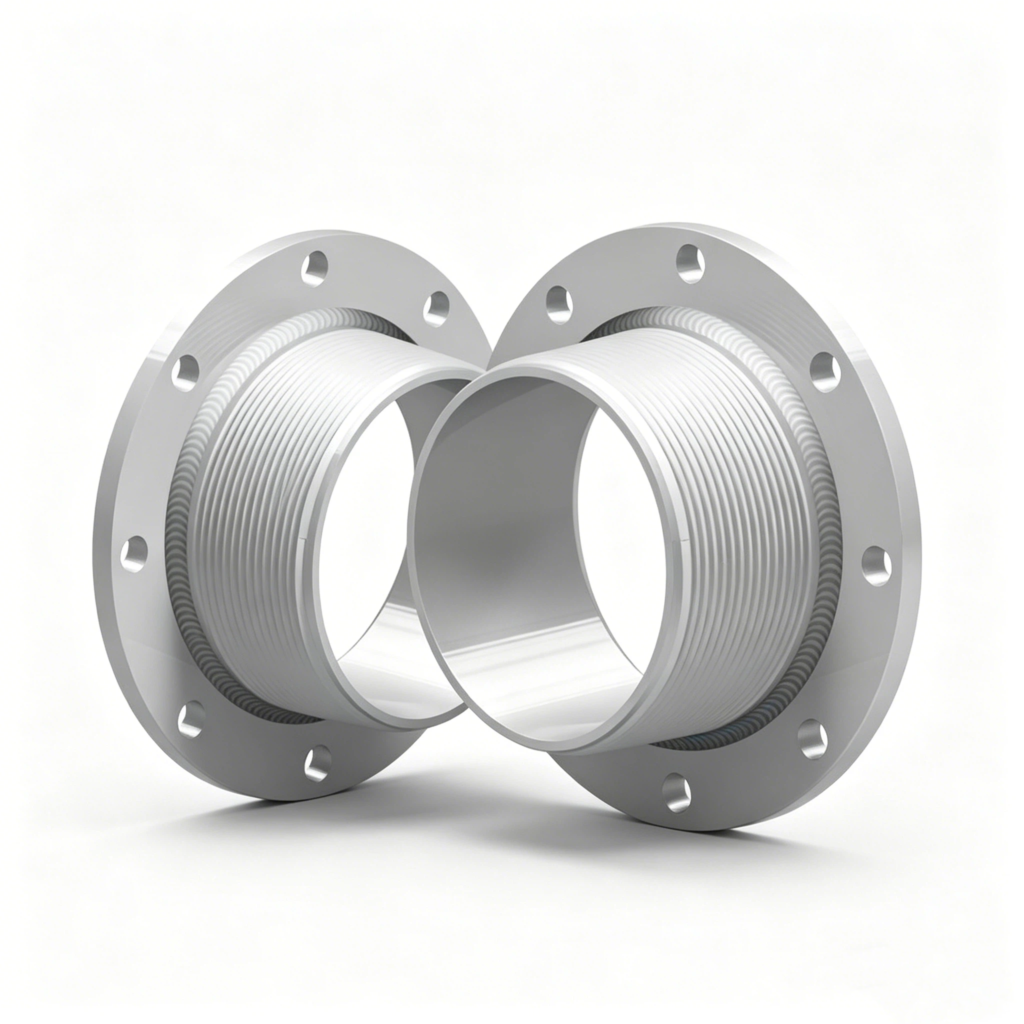

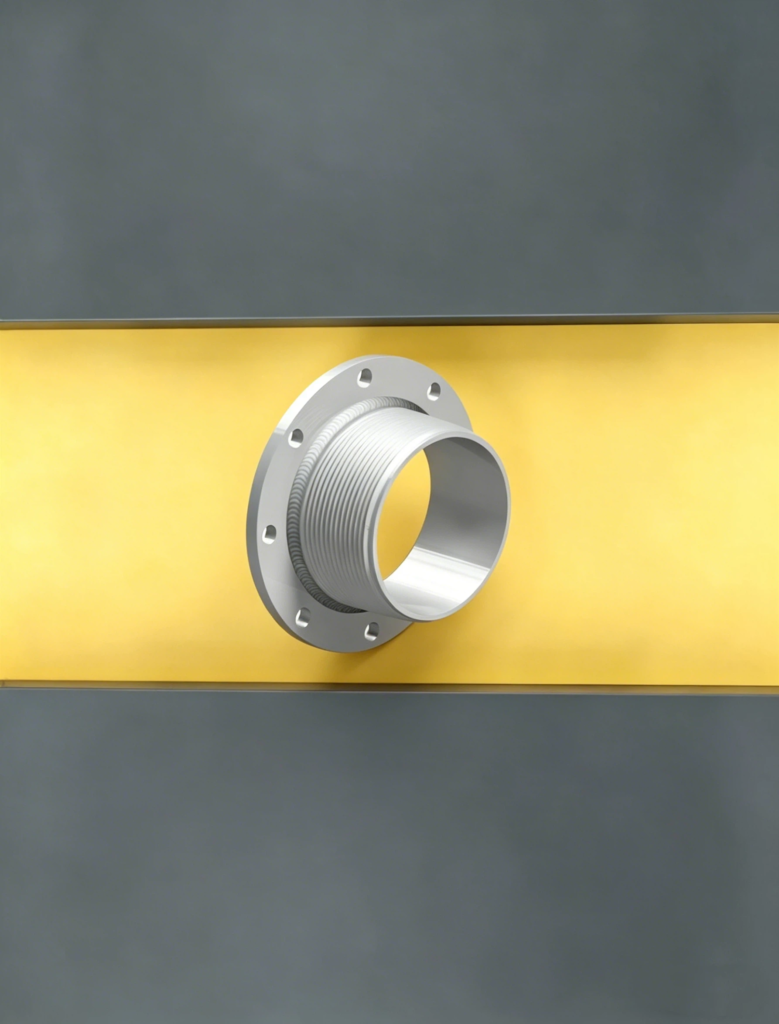

Corrosion Resistant Reliable Threaded Flange Adapter 3 Inch Size 316 Stainless Steel Flange Adapter

A threaded flange adapter is a pipe fitting that combines a flange on one end and internal or external threads on the other, allowing connection between flanged equipment and threaded pipe systems. It simplifies transitions between different connection types without additional adapters. Manufactured from carbon steel, stainless steel, brass, or alloy steel. Available in custom sizes from 1/2 inch to 8 inches, thread types including NPT, BSP, and metric, and pressure classes up to 3000 PSI. Features include precision machined threads, raised face flange sealing surface, and corrosion resistant finishes. Suitable for water treatment, chemical processing, oil and gas, HVAC, and industrial piping. Custom adapters available with specific thread standards and flange dimensions.

What Is a Threaded Flange Adapter?

A threaded flange adapter is a hybrid pipe fitting with a flange on one end and machined threads on the opposite end. The flange end connects to flanged valves, pumps, or equipment using bolts and gaskets. The threaded end connects to threaded pipe using standard NPT, BSP, or metric threads. This design eliminates the need for welding or additional transition fittings.

It is characterized by its flange face, threaded end, and compact construction. Typical features include a raised face or flat face sealing surface, pre-drilled bolt holes on a standard bolt circle, precision machined threads (NPT, BSP, or metric), a hex body for wrenching, and corrosion resistant finishes. Sizes typically range from 1/2 inch to 8 inches, with pressure ratings up to 3000 PSI. It provides a quick, weld-free solution for connecting threaded pipe systems to flanged equipment.

How a Threaded Flange Adapter Works:

The threaded flange adapter works by providing a mechanical transition between two different connection methods. The threaded end screws directly onto threaded pipe using thread sealant or PTFE tape. The flange end bolts to a mating flange on a valve, pump, or other equipment with a gasket in between. When bolts are tightened, the gasket compresses against the flange face, creating a leak-proof seal.

This production eliminates the need for a separate threaded-to-flange weldment or a flange adapter spool piece, reducing installation time and material costs. It is particularly useful in retrofit applications where existing threaded pipe must connect to new flanged equipment.

Common Materials:

Carbon Steel is the most common material for this production. Grade A105 offers good strength and weldability. Suitable for water, oil, gas, and steam applications.

Stainless Steel provides superior corrosion resistance. Grades 304 and 316 are common for chemical, food, and marine environments. Suitable for corrosive fluids and sanitary applications.

Brass offers good corrosion resistance and machinability. Suitable for low-pressure water and air applications.

Alloy Steel provides high-strength for high-pressure applications. Suitable for oil and gas and high-temperature services.

Types of Threaded Flange Adapter:

Male Threaded Flange Adapter:
A threaded flange adapter with external threads on the adapter end. Screws into a female threaded fitting or pipe. Most common configuration for general use.

Female Threaded Flange Adapter:
A threaded flange adapter with internal threads on the adapter end. Accepts a male threaded pipe or fitting.

NPT Threaded Flange Adapter:
A threaded flange adapter with National Pipe Taper threads. Most common in North America. Provides leak-proof seal without gasket.

BSP Threaded Flange Adapter
A threaded flange adapter with British Standard Pipe threads. Common in Europe and Asia. Available in parallel (BSPP) or tapered (BSPT).

Metric Threaded Flange Adapter:
A threaded flange adapter with metric threads. Common in international applications.

Applications Across Industries:

Water Treatment:
Threaded flange adapter connects threaded pipe to flanged pumps, valves, and filters. Quick installation reduces downtime during system modifications.

Chemical Processing:
Threaded flange adapter joins threaded chemical feed lines to flanged equipment. Stainless steel adapters resist corrosion.

Oil and Gas:
Threaded flange adapter connects threaded wellhead piping to flanged production equipment. High-pressure ratings handle wellhead pressures.

HVAC Systems:
Threaded flange adapter connects threaded chilled water and hot water piping to flanged pumps and chillers.

Food and Beverage:
Threaded flange adapter with sanitary finishes connects threaded CIP lines to flanged processing equipment.

Excellent Case: Water Treatment Plant Retrofit

Background: A water treatment plant needed to connect existing 2-inch threaded schedule 40 steel pipe to new flanged chemical dosing pumps. Welding was not permitted due to confined space and fire hazard.

Solution: A threaded flange adapter was selected with 2-inch NPT female threads on one end and a 150 LB raised face flange on the other. The adapter was made from 316 stainless steel for corrosion resistance.

Results:

• Installation Time: 30 minutes per connection versus 2 hours for welded spool
• Fire Hazard: Eliminated hot work permits
• Corrosion Resistance: No corrosion after 2 years of chemical exposure
• Leak-Free: Zero leaks at threaded or flange connections
• Maintenance: Easy removal for pump service

This case demonstrates how this production enables safe, fast connections in retrofit applications.

How to Select the Right Threaded Flange Adapter:

Choosing the appropriate threaded flange adapter requires careful consideration of several factors. Pipe size determines adapter size, matching both thread and flange dimensions. Thread type must match existing pipe, with NPT for North America and BSP for Europe/Asia. Pressure rating must exceed system operating pressure. Material must be compatible with the fluid. Flange face type determines gasket selection, with RF for most applications.

Installation Best Practices:

Proper installation ensures it performs reliably. Clean threads before assembly. Apply PTFE tape or thread sealant to male threads. Hand-tighten then use wrench for final 1-2 turns. For flange connection, use new gasket. Tighten flange bolts in star pattern to specified torque. Do not over-torque threads which can distort the adapter.

Common Failure Modes:

Understanding potential failures helps with preventive maintenance. Thread leakage from improper sealant, prevented by using PTFE tape or pipe dope. Gasket leakage from insufficient bolt torque, prevented by proper torque procedures. Thread galling in stainless steel, prevented by anti-seize lubricant. Corrosion in aggressive fluids, prevented by compatible material selection.

Conclusion:

This production represents a versatile, cost-effective solution for connecting threaded pipe systems to flanged equipment. By eliminating welding and reducing installation time, it is ideal for retrofit, maintenance, and new construction applications. By understanding the types, materials, and selection criteria outlined in this guide, the right threaded flange adapter can be selected for any application—from water treatment to chemical processing.
