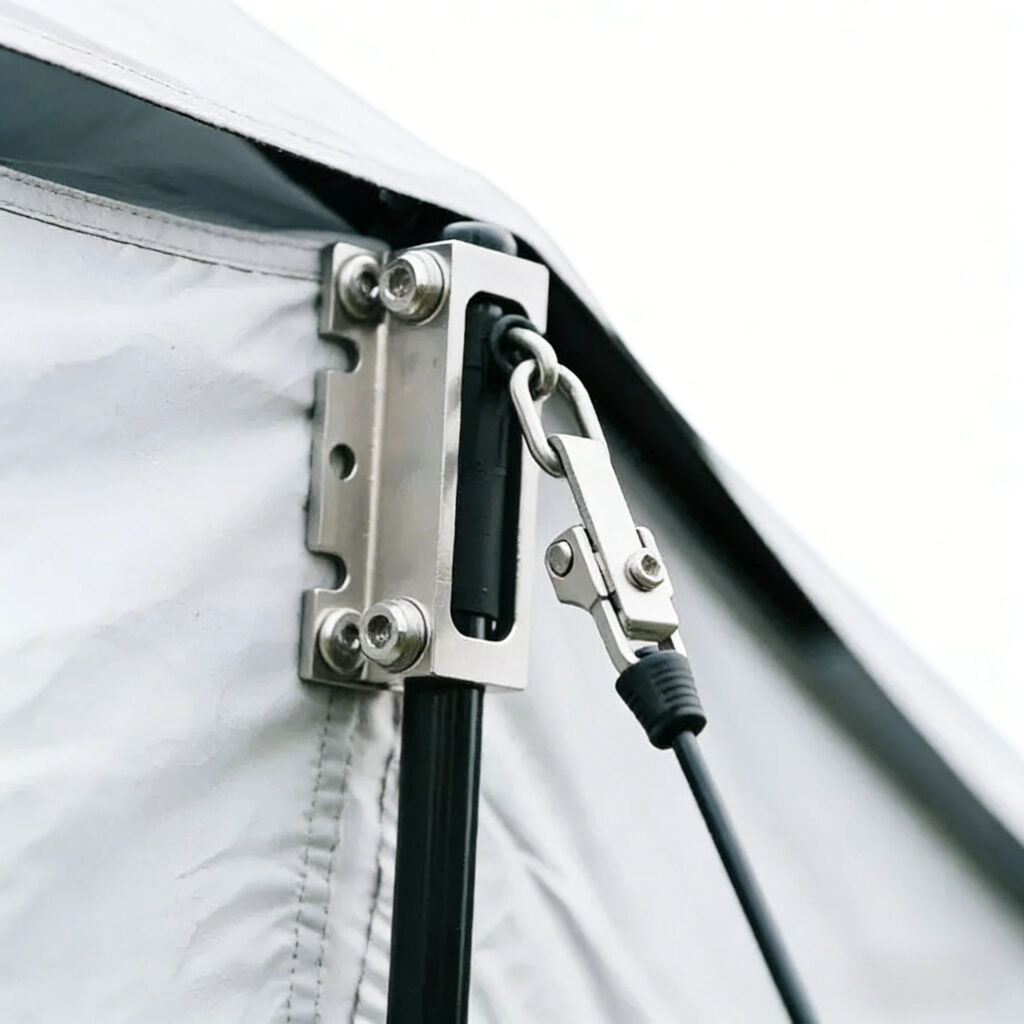

OEM Custom Tent Brackets 316L Stainless Steel CNC Machined with Quick Release Latches for Rooftop Tent
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
Engineered fastening components that secure tent structures to supporting surfaces—vehicles, ladders, poles, or ground anchors. Designed for rapid deployment, vibration resistance, and weather durability in camping, utility work, and military applications.
What Are Tent Brackets?
Tent brackets are purpose-built hardware devices that attach tent frames or canopies to a supporting structure. Unlike general-purpose L-brackets, they feature adjustable arms, locking mechanisms, and tent-specific interfaces (pole receivers, strap slots, or channel clamps). Applications range from rooftop tent mounts on vehicle crossbars to ladder-mounted utility shelters for line workers . Key design elements include angular adjustability (typically 0–180°), tool-free locking, and compatibility with tent strut diameters from 16mm to 32mm.
Types of Tent Brackets
| Type | Mounting Surface | Compatible Tent Style | Key Feature | Typical Load Capacity (per bracket) |
| Rooftop Tent (RTT) Brackets | Vehicle crossbars (round, square, aero, T-slot) | Fold-out & hardshell RTTs | Low-profile; rubber-lined clamps; 6–8 mm bolt holes | 150–300 lbs |
| Ladder Brackets | Extension ladder rungs (3/4″–1″ dia.) | Hook-over or sleeve-style utility tents | Spring-loaded latches; non-slip rubber pads | 75–120 lbs |
| Ground Anchor Brackets | Stakes or auger rods (3/8″–5/8″ dia.) | Pop-up canopies, beach shelters | Angled foot plate; twist-lock or pin retention | 40–80 lbs |
| Pole Coupling Brackets | 16–32 mm diameter tent poles | Ridge tents, frame tents, bell tents | Internal/external set screws; detent buttons | 60–110 lbs |
| Wall/Structural Brackets | Wood studs, steel beams, masonry | Awning tents, permanent shelters | Heavy-gauge steel; 4 anchor points; up to 3-axis adjustment | 200–400 lbs |
| Trailer/Rail Brackets | Utility trailer sides (1.5″–2″ square tube) | Truck bed tents, camping trailers | Bolt-through or weld-on plates; offset arms | 180–350 lbs |
Materials of Tent Brackets:
Stainless Steel (304/316) – Highest corrosion resistance; ideal for coastal/marine use. Tensile strength ≥515 MPa. Weight: heavy.
Aluminum Alloy (6061-T6 / 7075) – Best strength-to-weight ratio; naturally rust-resistant. 2.7 g/cm³ density.
Carbon Steel + Powder Coating – Cost-effective for heavy static loads; 500+ hr salt spray resistance with intact coating.
Glass-Fiber Reinforced Polymer (GFRP) – Non-conductive, lightweight; limited to light-duty or temporary setups.
Surface Finishes of Tent Brackets:
Powder Coating (Black or Texture) – 60–100 µm thickness; impact and UV resistant. Common on steel and aluminum.
Anodizing (Type II / Type III) – Hard anodized aluminum achieves 50+ Rockwell C hardness; wear-resistant.
Zinc Plating (Clear or Yellow) – 8–12 µm; 96 hr salt spray; typical for budget carbon steel brackets.
E-coat (Epoxy) – Uniform coverage on complex geometries; 500+ hr corrosion protection.
Plastic Insert Sleeves – Nylon or HDPE inserts prevent metal-on-metal contact and galling on aluminum crossbars .
Advantages about Tent Brackets:
- Universal compatibility: Fits round (1–2″ dia.), square, and T-slot crossbars with interchangeable inserts .
- Vibration dampening: Rubber or silicone gaskets reduce NVH during vehicle transit.
- Tool-free locking: Cam-over levers or spring-loaded pins enable 30-second deployment.
- Low-profile design: Foldable arms reduce packed height by 60% for storage/transport.
- Load-rated: Engineered for 150–400 lbs static capacity per pair (vehicle roof load limits apply).
Applications for Tent Brackets:
- Vehicle-based camping: rooftop tents on SUVs/trucks
- Utility ladders: power/telecom linework
- Military shelters: tactical command posts
- Marine: boat canopy frames
- Ground anchoring: pop-up canopies
- Manhole worksite enclosures
Why Choose Our Tent Brackets?
| Criterion | Our Standard |
| Material traceability | Mill certs provided for each alloy batch (ASTM/EN standards) |
| Corrosion testing | 500+ hr salt spray per ASTM B117 on coated steel; 316 stainless for marine grade |
| Load validation | 2× safety factor; tested to 400 lbs static / 200 lbs dynamic per bracket |
| Compatibility | Fits 1″–2″ round, 1″ square, and 15mm–25mm T-slot crossbars |
| Lead time | 95% of SKUs in stock; same-day shipping from regional warehouses |
Customer Feedback (Verbatim Quotes):
1. “The HDPE liners are a small detail that made a huge difference. Our previous brackets ate into crossbar finish after one season. These slide on clean and don’t budge at 70 mph.”
— Fleet Manager, Colorado Overland Rentals
2. “I appreciate that the bolt holes are actually chamfered. Cheap brackets cut into bolt threads. Yours don’t. That tells me you’ve installed these before.”
— Owner-Operator, DIY Camping Forum (verified purchase)
