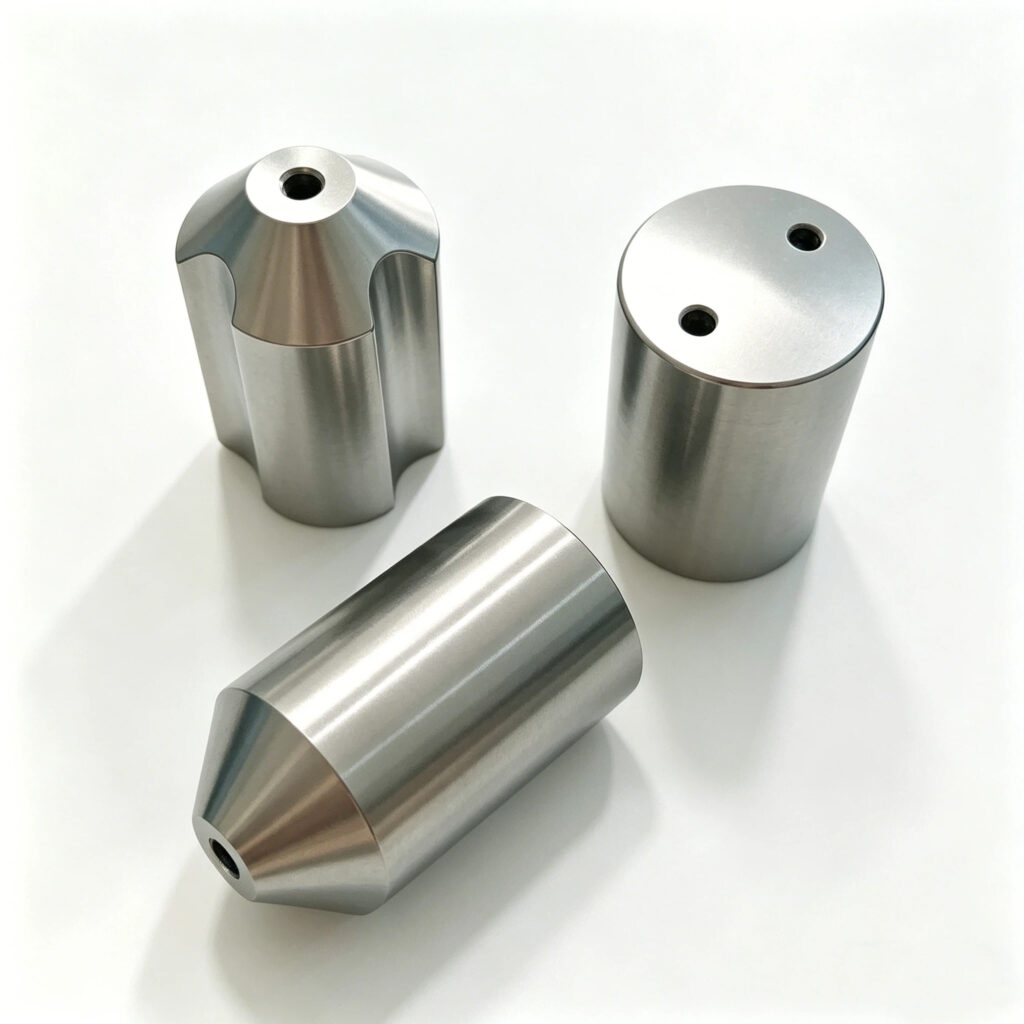

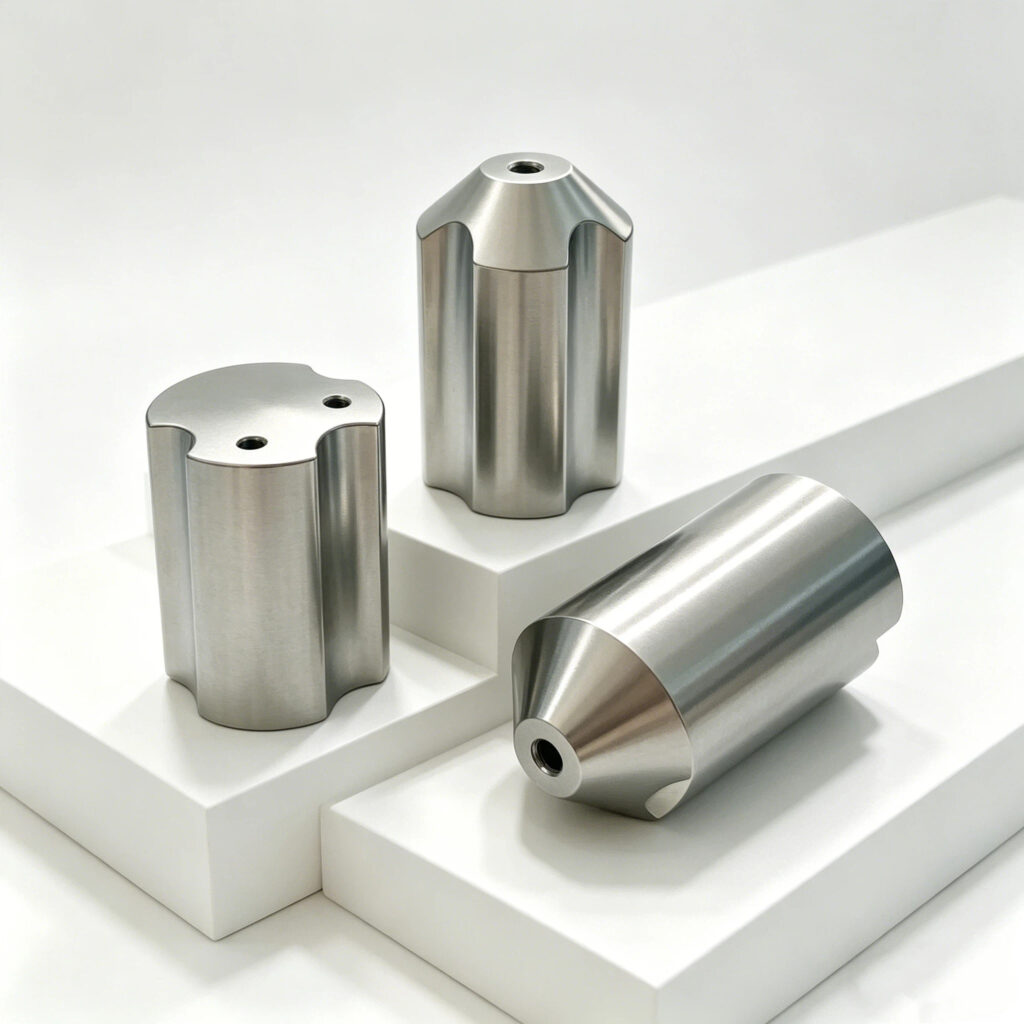

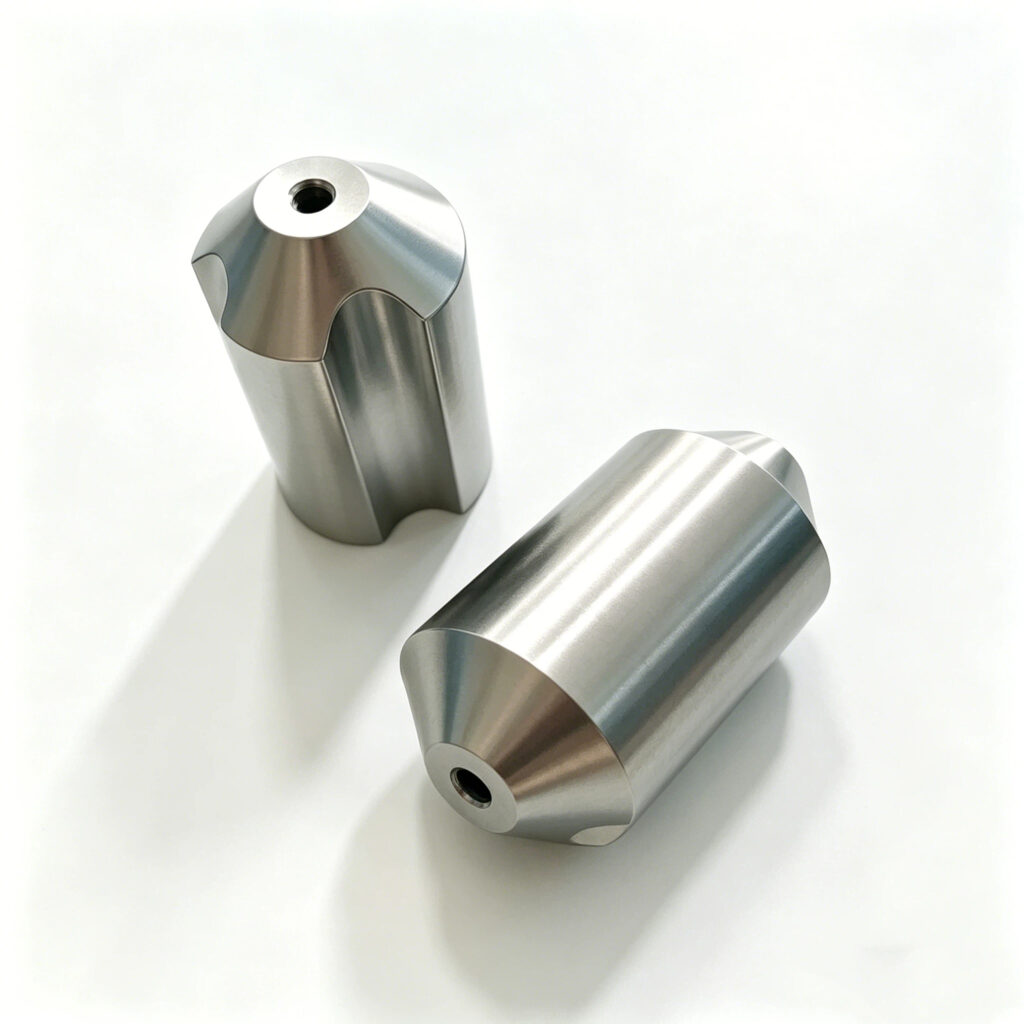

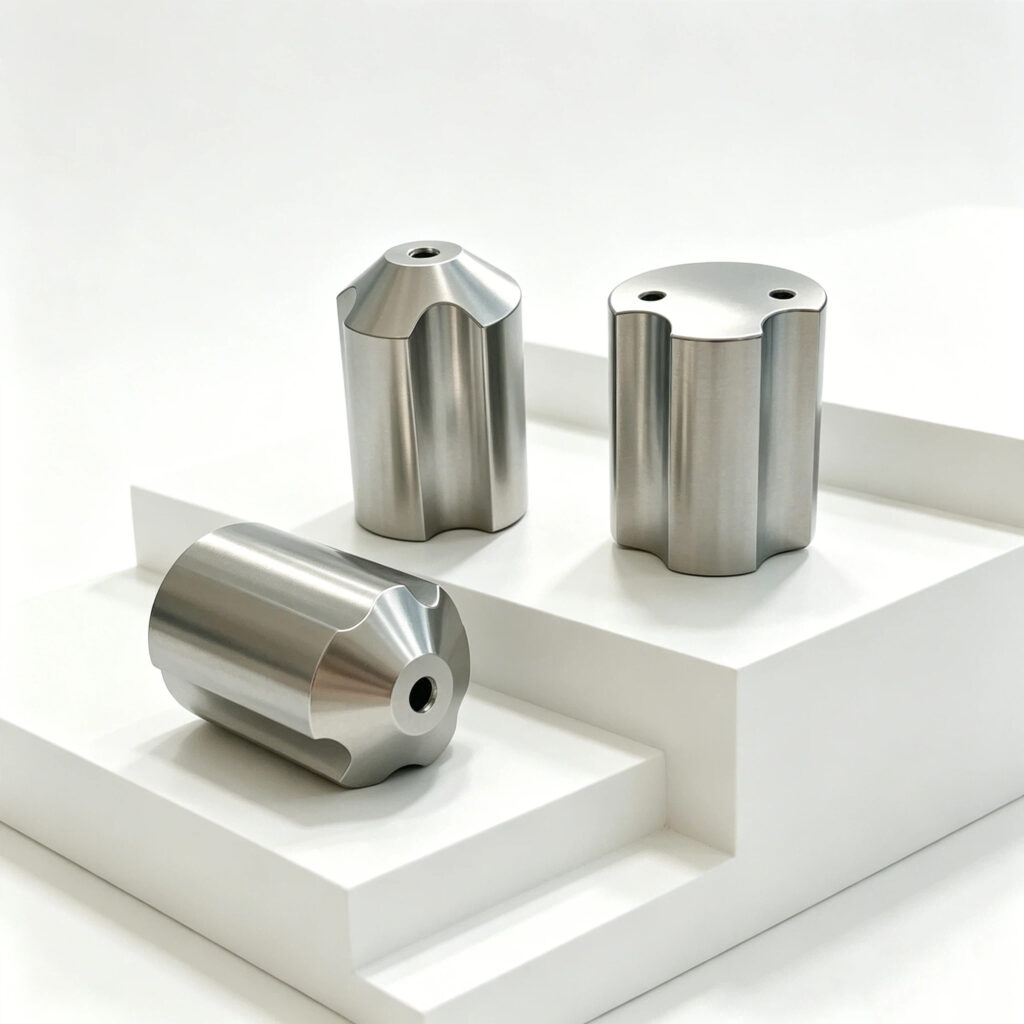

Stainless Steel Precision Locating Pin 10mm x 50mm, for Machinery Assembly Reliable Custom CNC Milling

A Precision Locating Pin is a mechanical component designed to provide precise alignment and positioning of parts within a system. Typically used in assembly or machining applications, these pins are essential for ensuring the accurate placement of components. Precision Locating Pins are highly valued for their accuracy, durability, and ability to maintain tight tolerances, making them ideal for industries such as aerospace, automotive, and manufacturing.

Precision Locating Pin Materials:

Precision Locating Pins are often made from high-quality materials to ensure reliability and long-lasting performance. Common materials include:

• Stainless Steel: Known for its corrosion resistance and high strength, stainless steel is ideal for precision applications where durability and resistance to harsh environments are critical.
• Carbon Steel: Carbon steel is often used for locating pins due to its strength and affordability. It is suitable for applications that do not require extreme corrosion resistance.
• Tool Steel: Tool steel is another material often chosen for locating pins, especially in applications requiring high hardness and wear resistance.

These materials ensure that Precision Locating Pins can handle demanding applications while maintaining their integrity and performance.

Surface Treatment of Precision Locating Pin:

To enhance their durability and ensure precise performance, Precision Locating Pins are often subjected to various surface treatments. Common surface treatments include:

• Hardening: A heat treatment process that increases the hardness of the pin, making it more resistant to wear and deformation.
• Chrome Plating: Chrome plating adds a layer of protection to the pin, improving its resistance to corrosion and wear.
• Black Oxide Coating: This treatment enhances the pin’s resistance to corrosion while providing an attractive finish, making it ideal for industrial applications.
• Passivation: This process involves treating stainless steel pins to remove any free iron from the surface, improving corrosion resistance.

These surface treatments increase the overall lifespan of the locating pin and ensure it maintains its precision in high-stress applications.

Applications of Precision Locating Pin:

Precision Locating Pins are used across a wide range of industries due to their accuracy and versatility. Some common applications include:

• Aerospace: Used for the precise alignment of components in the manufacturing and assembly of aircraft parts.
• Automotive: Ensures the proper placement of components in the assembly of vehicle parts, such as engine components and frames.
• Machine Tools: Essential in positioning and aligning parts within machines, ensuring that parts are precisely fixed during machining or assembly.
• Manufacturing: Widely used in production lines to align components accurately, ensuring smooth and efficient assembly processes.
• Molds and Dies: Used in mold-making processes for aligning the mold halves and ensuring consistent, accurate results.

These pins provide reliable positioning, which is essential in high-precision environments where any misalignment can lead to defects or failure.

Advantages of Precision Locating Pin:

• High Accuracy: The primary advantage of Precision Locating Pins is their ability to provide exact positioning and alignment, ensuring parts are placed correctly.
• Durability: Made from high-strength materials, these pins are durable and can withstand heavy use, providing long-lasting performance.
• Corrosion Resistance: Surface treatments like chrome plating or passivation ensure that the pins are resistant to corrosion, making them suitable for use in harsh environments.
• Versatility: Precision Locating Pins can be used in a wide variety of industries and applications, from automotive to aerospace, due to their flexibility and adaptability.
• Reduced Wear and Tear: The hardening and surface treatments applied to these pins help reduce wear and maintain their precision, even in demanding environments.

The precision and durability of these pins make them an essential component in industries that rely on accurate alignment for safety, functionality, and product quality.

Polestar Excellent Case:

Machine Tool Alignment: In a manufacturing facility, Precision Locating Pins were used to position parts during machining operations. The precise alignment ensured that each part met tolerances, improving product quality and reducing rework.

Aerospace: In the aerospace industry, Precision Locating Pins were used during the assembly of critical aircraft components, ensuring that parts were aligned to exact specifications. This alignment reduced errors and ensured the high-performance standards required in the industry.

Automotive Manufacturing: In an automotive production line, Precision Locating Pins were employed to align parts during the assembly of vehicle engines. The pins provided consistent placement of components, leading to smoother operations and reduced chances of defects.
