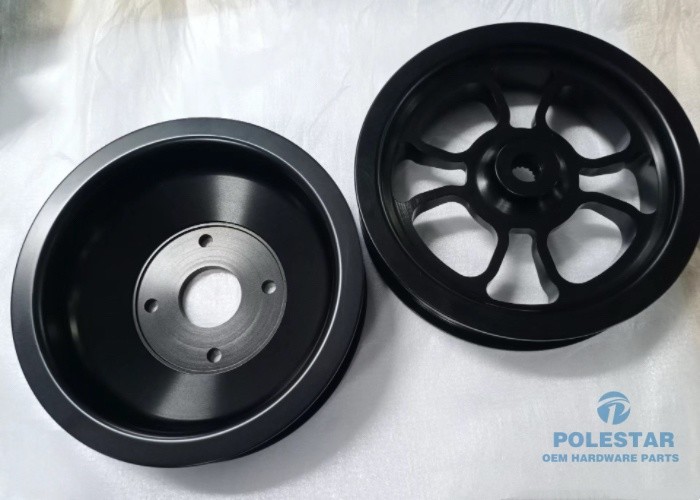

High Performance Multi Groove Pulley 100 Percent Quality Tested 2 Micron Surface Finish Ultra Smooth Operation

Multi groove pulley is a precision power transmission component featuring multiple parallel grooves on its circumference. Designed to accommodate V belts or poly V belts it enables efficient torque transfer reduced belt slippage and smooth operation across industrial machinery automotive engines and automation systems.

What is a Multi Groove Pulley？

A multi groove pulley is a mechanical component manufactured with multiple parallel grooves machined into its circumference specifically designed to accommodate V belts or poly V belts in power transmission applications. Unlike traditional single groove pulleys that can only drive one belt the multi groove pulley enables multiple belts to operate simultaneously distributing load evenly across the entire drive system.

This innovative design delivers significant advantages including higher torque capacity reduced belt wear improved system reliability and compact equipment layout. The multi groove pulley is commonly manufactured from materials such as cast iron steel aluminum alloy and stainless steel with each material selected based on specific application requirements including load capacity operating environment and speed requirements.

Precision manufacturing processes including CNC turning and milling ensure that each groove maintains exact dimensional accuracy enabling proper belt seating and consistent power transmission throughout the service life of the component.

Key Benefits of Multi Groove Pulley:

When selecting a multi groove pulley for your application understanding the benefits helps justify investment in quality components and ensures optimal system performance.

Higher Power Transmission Capacity:

The multiple grooves on a multi groove pulley allow for multiple belts to operate in parallel significantly increasing the total power that can be transmitted through the drive system. This capability is particularly valuable in heavy duty applications such as industrial compressors conveyor systems and agricultural machinery where single belt configurations would be inadequate to handle the required load.

Reduced Belt Wear and Extended Service Life:

Properly designed multi groove pulley systems distribute tension evenly across all belts preventing localized wear and extending belt life substantially. The precision machined grooves ensure consistent belt tracking eliminating the slipping and misalignment issues that typically cause premature belt failure in poorly designed systems.

Compact Space Saving Design:

A single multi groove pulley can replace multiple single groove pulleys in complex drive systems consolidating components and saving valuable space within equipment enclosures. This simplified layout reduces the number of components requiring maintenance and makes installation more straightforward.

Smooth and Quiet Operation:

Dynamic balancing of the multi groove pulley combined with precision ground groove profiles results in minimal vibration and reduced operational noise. This characteristic is especially important in applications where operator comfort equipment longevity and workplace safety are priorities.

Improved System Reliability:

By distributing load across multiple belts the multi groove pulley provides inherent redundancy. If one belt experiences issues the remaining belts can continue to transmit power allowing for planned maintenance rather than unexpected downtime that disrupts production schedules.

Materials Used in Multi Groove Pulley Manufacturing:

The choice of material for a multi groove pulley directly impacts performance durability and suitability for specific operating environments.

Cast Iron:

Cast iron remains the most widely used material for industrial multi groove pulley applications offering excellent wear resistance good machinability and superior vibration damping properties. Cast iron pulleys are ideal for heavy duty machinery conveyor systems industrial compressors and pumps where durability and long service life are paramount.

Steel:

Steel multi groove pulley components provide higher strength and impact resistance compared to cast iron making them suitable for high stress applications. Heat treated steel pulleys are capable of withstanding extreme torque loads and are commonly found in agricultural equipment construction machinery and high performance industrial drives.

Aluminum Alloy:

For applications requiring lightweight construction and high speed operation aluminum alloy multi groove pulley designs are the preferred solution. Aluminum offers excellent corrosion resistance and can be anodized for enhanced surface protection making these pulleys suitable for automotive racing applications high speed industrial equipment and aerospace components.

Stainless Steel:

When corrosion resistance and hygiene are critical stainless steel multi groove pulley components provide the solution. Food processing equipment pharmaceutical manufacturing and medical devices rely on stainless steel pulleys that resist rust and meet stringent sanitary requirements for cleanroom and hygienic environments.

Custom Manufacturing Capabilities:

While standard multi groove pulley sizes are available for many applications demanding installations often require custom engineered solutions. Professional manufacturers offer comprehensive custom capabilities to meet specific requirements.

Diameter and Width Customization:

Multi groove pulley components can be manufactured with diameters ranging from 20 millimeters to over 600 millimeters with widths tailored to accommodate the required number of belts. Custom dimensions ensure perfect fit within existing equipment layouts and allow for optimization of drive ratios.

Bore and Mounting Options:

Bore sizes can be precisely machined to match motor shafts or driven equipment spindles with tolerances held within 0.01 millimeters. Mounting options include keyways set screws taper lock bushings and split clamping hubs providing flexibility for different installation requirements and maintenance access.

Groove Profile Selection:

Different belt types require specific groove profiles for optimal performance. Multi groove pulley manufacturers can produce grooves for PK PJ PL PH poly V belt profiles as well as standard A B C sections for conventional V belts. Proper groove geometry ensures optimal belt engagement and maximum power transmission efficiency.

Balancing Grades:

For high speed applications dynamic balancing is essential. Multi groove pulley components can be balanced to ISO G 6 3 G 2 5 or tighter specifications ensuring smooth operation at rotational speeds exceeding 10000 RPM without vibration issues.

Surface Treatment and Coating:

Additional surface treatments enhance durability and appearance. Options include black oxide for basic corrosion protection zinc plating for improved rust resistance anodizing for aluminum components and powder coating for aesthetic and protective requirements in demanding environments.

Applications Across Industries:

The versatility of the multi groove pulley makes it indispensable across numerous industries and applications.

Automotive Industry:

In automotive applications the multi groove pulley is found in serpentine belt systems driving alternators water pumps air conditioning compressors and power steering pumps. The compact design and high efficiency of these pulleys contribute to improved fuel economy reduced emissions and enhanced engine reliability.

Industrial Manufacturing:

Industrial machinery relies on multi groove pulley components for conveyor systems compressors pumps fans and machine tool drives. The reliability and long service life of quality pulleys minimize production interruptions and maintenance costs in continuous manufacturing operations.

Agricultural Equipment:

Agricultural machinery operates in demanding conditions with exposure to dust moisture and heavy loads. Steel and cast iron multi groove pulley components provide the durability required for harvesters tractors irrigation systems and other farm equipment operating in harsh environments.

HVAC and Building Systems:

Heating ventilation and air conditioning systems use multi groove pulley components for fan drives and compressor applications. Quiet operation and reliability are critical in commercial and residential building systems where occupant comfort and system efficiency are priorities.

Medical and Laboratory Equipment:

Precision medical devices demand multi groove pulley components manufactured to exacting tolerances with smooth surfaces that resist contamination. Stainless steel and anodized aluminum pulleys meet the hygiene requirements of healthcare environments including surgical equipment diagnostic devices and laboratory instruments.

Quality Standards and Manufacturing Processes:

Professional multi groove pulley manufacturers adhere to rigorous quality standards throughout the production process ensuring consistent performance and reliability.

CNC Machining Precision:

Modern multi groove pulley production employs advanced CNC turning and milling centers capable of holding tolerances within 0.01 millimeters. Computer controlled machining ensures consistency across production runs and accurate reproduction of complex groove profiles for optimal belt engagement.

Material Certification:

Quality manufacturers provide material traceability with certified mill test reports documenting chemical composition and mechanical properties. This documentation is essential for applications with strict safety or regulatory requirements including aerospace medical and defense applications.

100 Percent Inspection:

Critical dimensions including bore diameter groove pitch and runout are inspected on each multi groove pulley component. Comprehensive inspection reports provide documentation of conformance to specifications for quality assurance and traceability.

ISO 9001 Certification:

Manufacturers with ISO 9001 certification demonstrate commitment to consistent quality management systems providing confidence in their multi groove pulley products and manufacturing processes.

How to Select the Right Multi Groove Pulley?

Selecting the appropriate multi groove pulley for your application requires consideration of several critical factors.

Power Requirements:

Calculate the required power transmission capacity based on motor horsepower and operating conditions. This calculation determines the number of grooves and belt configuration needed for reliable operation.

Speed Requirements:

Maximum rotational speed influences material selection and balancing requirements. Higher speeds demand tighter balance tolerances and may favor aluminum or steel over cast iron for reduced rotating mass.

Environmental Conditions:

Operating environment dictates material and coating choices. Corrosive environments require stainless steel or coated components while high temperature applications may demand specialized materials with appropriate thermal properties.

Space Constraints:

Available space for multi groove pulley installation influences diameter and width decisions. Compact designs may utilize poly V belt systems which allow for smaller pulley diameters while maintaining adequate power transmission capacity.

Shaft Dimensions:

Bore size must match the shaft diameter with appropriate mounting features such as keyways or clamping mechanisms to ensure secure installation and proper torque transmission.

Why Partner with a Professional Manufacturer?

Choosing the right supplier for your multi groove pulley requirements ensures quality reliability and value.

Engineering Support: Professional manufacturers provide technical assistance during the design phase helping optimize pulley specifications for your application requirements and ensuring proper integration with existing systems.

Short Lead Times: Well equipped manufacturers maintain inventory of raw materials and have production capacity to accommodate urgent custom orders with typical lead times of 15 to 30 days minimizing project delays.

Competitive Factory Direct Pricing: By eliminating intermediaries factory direct multi groove pulley manufacturers offer competitive pricing without compromising quality providing better value for your investment.

After Sales Support: Reliable manufacturers stand behind their products with warranty coverage and responsive customer service addressing any concerns that may arise during installation or operation.

Conclusion:

The multi groove pulley represents a critical investment in the reliability and efficiency of power transmission systems across countless industries. Whether you require standard sizes for routine maintenance or custom engineered solutions for specialized applications selecting a high quality precision manufactured multi groove pulley delivers long term value through reduced downtime extended component life and consistent operational performance.

When evaluating multi groove pulley options consider the material construction manufacturing precision balancing quality and the reputation of the supplier. With proper selection and installation a quality multi groove pulley will provide years of reliable service in even the most demanding applications.

For assistance with your multi groove pulley requirements including custom sizing material selection and technical specifications contact our engineering team to discuss your project needs.
