Advanced Custom CNC Aluminum Mounting Bracket for Camera and Sensor Applications with Exceptional Strength and Precision

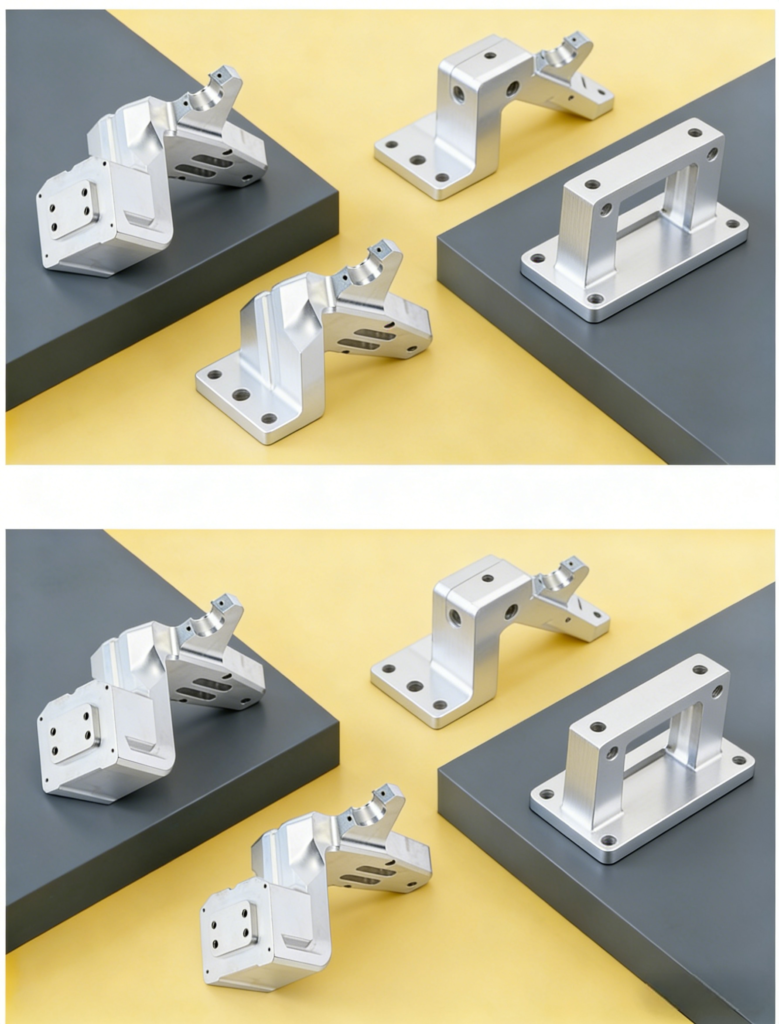

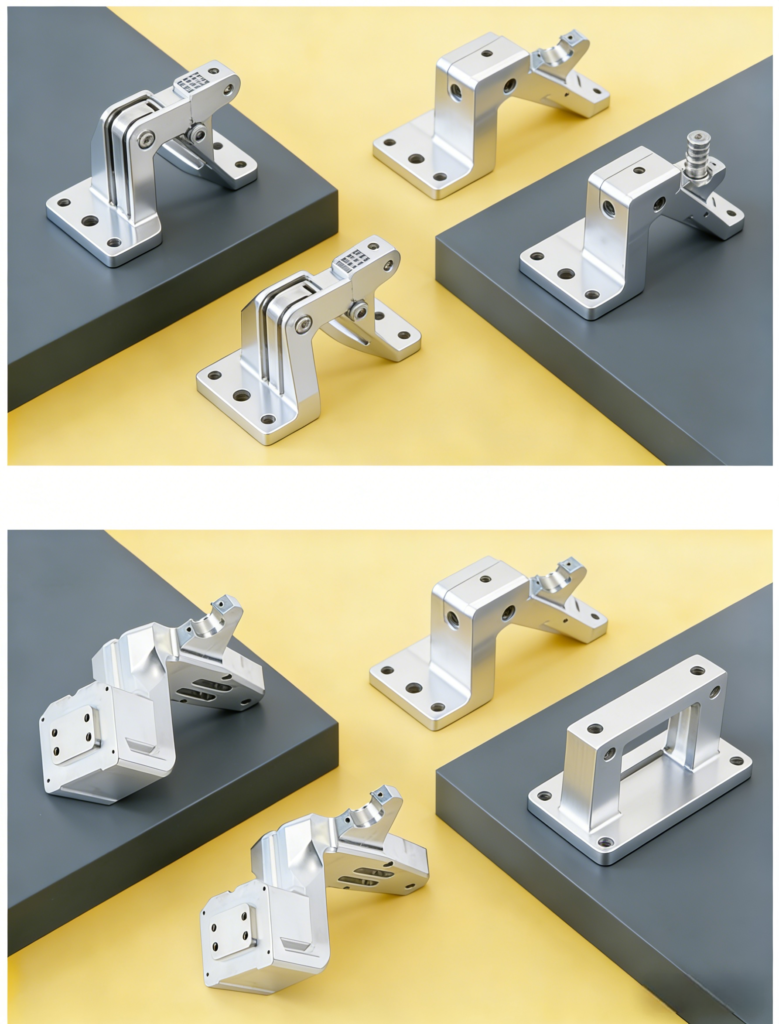

What Is a Mounting Bracket for Camera?

A Mounting Bracket for Camera is a structural component designed to securely hold and position cameras in a fixed or adjustable orientation. It plays a critical role in ensuring image stability, vibration control, and precise alignment in applications ranging from surveillance systems to automotive vision modules and industrial inspection setups.

Unlike generic mounts, a CNC-machined Mounting Bracket for Camera is engineered with tight tolerances, ensuring compatibility with specific camera models, lenses, and installation environments. It is commonly manufactured from aluminum alloys such as 6061-T6, stainless steel, or high-strength polymers, depending on the required strength-to-weight ratio and environmental conditions.

Key Features and Engineering Advantages:

1. High Precision CNC Machining

Advanced CNC machining processes enable the production of complex geometries and precise hole patterns. This ensures seamless integration with camera housings and mounting surfaces, minimizing misalignment.

2. Superior Structural Stability

A well-designed Mounting Bracket for Camera provides excellent rigidity, reducing vibration and movement that could compromise image clarity—especially in high-speed or mobile applications.

3. Lightweight Yet Durable Materials

Using materials like anodized aluminum offers corrosion resistance while maintaining a lightweight profile, making it ideal for drones, automotive systems, and outdoor installations.

4. Customization Flexibility

From slot adjustments to multi-axis articulation, custom brackets can be tailored to meet specific angular positioning, load requirements, and installation constraints.

Applications Across Industries:

Automotive Vision Systems:

In advanced driver-assistance systems (ADAS), cameras must be mounted with extreme precision. A Mounting Bracket for Camera ensures stable positioning for lane detection, parking assistance, and collision avoidance systems.

Industrial Automation:

Machine vision systems rely heavily on stable camera positioning for inspection, measurement, and quality control. Even slight deviations can result in inaccurate readings.

Security and Surveillance:

For indoor and outdoor CCTV systems, brackets must withstand environmental factors such as wind, temperature fluctuations, and corrosion while maintaining consistent camera angles.

Consumer Electronics and Drones:

Compact and lightweight brackets are essential for handheld devices and UAVs, where weight and balance directly impact performance.

Surface Treatment and Finishing Options:

To enhance durability and aesthetics, Mounting Bracket for Camera components can undergo various surface treatments:

• Anodizing (Clear/Black/Custom Colors) for corrosion resistance
• Powder Coating for enhanced wear protection
• Nickel or Zinc Plating for additional environmental resistance
• Sandblasting for improved surface texture and finish consistency

These treatments not only extend the service life but also improve the product’s visual appeal and brand alignment.

Why CNC Machining Matters?

CNC machining ensures repeatability and consistency, which are essential for batch production in industries like automotive and electronics. Compared to casting or stamping, CNC machining provides:

• Tighter tolerances (±0.01 mm or better)
• Better surface finish
• Faster prototyping and iteration
• Compatibility with complex designs

This makes CNC machining the preferred choice for high-performance Mounting Bracket for Camera solutions.

Polestar Case Study: Precision in Automotive Imaging

A notable application comes from Polestar, a premium electric vehicle manufacturer known for integrating advanced imaging systems into its vehicles.

In one project, Polestar required a custom Mounting Bracket for Camera to support a front-facing ADAS camera. The bracket needed to meet strict requirements:

• High dimensional accuracy for sensor calibration
• Resistance to vibration and thermal expansion
• Lightweight design to align with EV efficiency goals

By utilizing CNC-machined aluminum with anodized finishing, the solution delivered consistent performance under dynamic driving conditions. The bracket ensured stable image capture, contributing to the reliability of driver assistance features.

This case highlights how a well-engineered Mounting Bracket for Camera can directly impact system performance and safety in high-end applications.

Design Considerations for Optimal Performance:

When developing a Mounting Bracket for Camera, several factors must be considered:

• Load Capacity: Ensure the bracket can support the camera and any additional accessories
• Mounting Interface: Compatibility with industry-standard threads (e.g., 1/4″-20 UNC)
• Environmental Conditions: Exposure to moisture, heat, or chemicals
• Adjustment Mechanism: Fixed vs. adjustable angles
• Installation Constraints: Space limitations and assembly requirements

Proper design ensures long-term reliability and ease of installation.
