Custom Beautiful Metal Handwheel CNC Lathe Machine Part High-Quality CNC Milling Parts

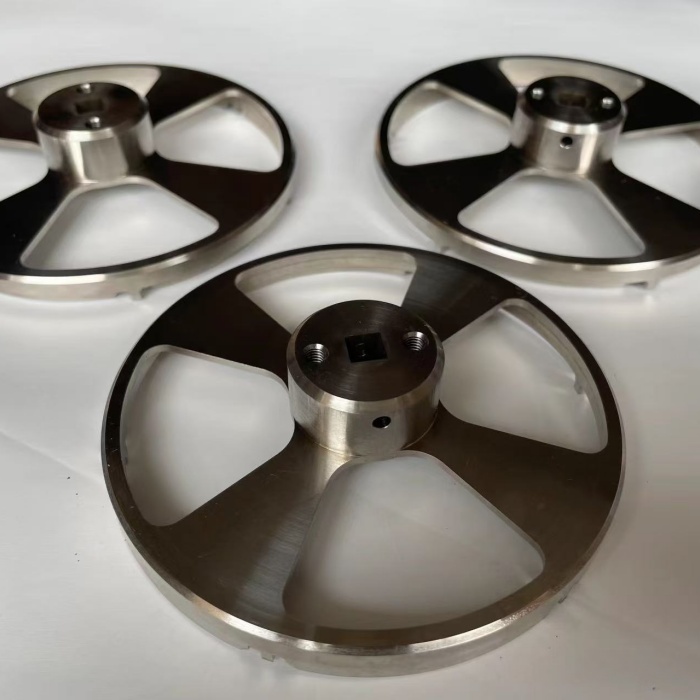

A metal handwheel is a manual control component mounted on shafts, spindles, or valves for precise positioning, calibration, and operation of industrial machinery. Constructed from steel, aluminum, or iron, it provides durability and mechanical advantage for repetitive adjustment tasks.

What Is a Metal Handwheel?

A metal handwheel functions as a human-machine interface (HMI) for manual control of valves, machine tools, positioning systems, and industrial equipment. Unlike plastic alternatives, a metal handwheel offers superior torque transmission, impact resistance, and longevity in heavy-use environments. MRO buyers evaluate a metal handwheel based on outside diameter (100–400 mm), bore size (10–26 mm), material composition, and surface treatment. Typical configurations include 3-spoke, 4-spoke, 5-spoke, or solid dish designs, with hub options including round bore, square socket, or keyway per DIN 6885.

Material:

Surface Treatment:

Powder Coating (ASTM D3359) – Black matte finish, 500+ hours salt spray, tough and durable

Hard Anodizing (Type III, MIL-A-8625) – 50µm thickness, 65+ RC hardness, wear-resistant

Zinc Plating & Chromate Treatment – Corrosion protection for iron and steel components

Nickel-Chromium Plating (AS4984) – Aerospace-grade coating for hand tools

Black Oxide – For steel hubs, anti-corrosion, non-reflective finish

Shot Blasting (Matte Finish) – For stainless steel, uniform texture

Polishing – For aluminum wheels, lustrous appearance

Applications:

The metal handwheel serves across multiple industrial sectors:

Machine Tool Operation: For manual adjustment of cutters, milling machines, lathes, and positioning slides. A metal handwheel provides precise control with typical diameters from 80mm to 315mm .

Valve Actuation: For opening, closing, and regulating valves in oil & gas, chemical processing, pharmaceutical, and water treatment plants. Stainless steel A4 (AISI 316L) metal handwheel variants withstand highly corrosive environments .

Industrial Machinery: For equipment construction, plant machinery, and measuring devices requiring manual positioning and calibration .

Heavy Industry: Pressed steel metal handwheel models with 200–250mm diameters and 4–5 spokes provide exceptional durability for demanding applications .

Aerospace & Defense: NSN-listed metal handwheel components with certified material traceability for military and aviation ground support equipment.

Case Study: Stainless Steel Metal Handwheel for Chemical Processing Valve Retrofit

Challenge: A chemical processing plant operating 48 manual gate valves in a corrosive chlorine environment experienced 34% annual failure rate on standard painted cast iron handwheels. Corrosion caused seized hubs, stripped keyways, and handle fractures, resulting in $28,000 annual replacement costs and safety valve access delays during emergency shutdowns.

Solution: A corrosion-resistant metal handwheel was specified using AISI 316L stainless steel (A4 grade) with shot-blasted matte finish . The metal handwheel configuration included:

Material: Stainless steel sheet metal construction, hub welded, unaffected by shocks and knocks

Surface Treatment: Matte shot-blasted finish (GS), no coating degradation risk

Hub Interface: Keyway per DIN 6885-1 P9 for positive shaft engagement

Handle: Revolving handle with NBR O-rings minimizing radial play and preventing dirt ingress

Dimensions: 250mm diameter (d1), 5-spoke design for balanced torque application

Results (18 months, 48 valves):

Failure rate: 34% → 0% (no handwheel failures)

Annual replacement cost: $28,000 → $0

Emergency valve access time: Reduced by 60% (no seized hubs)

Projected service life: 10+ years (vs. 6 months for painted iron)

ROI: Achieved in 9 months

The stainless steel metal handwheel deployment eliminated corrosion-related downtime and improved plant safety by ensuring reliable valve actuation during emergency conditions.

Summary: Product Advantages – Why Choose Our Metal Handwheel
