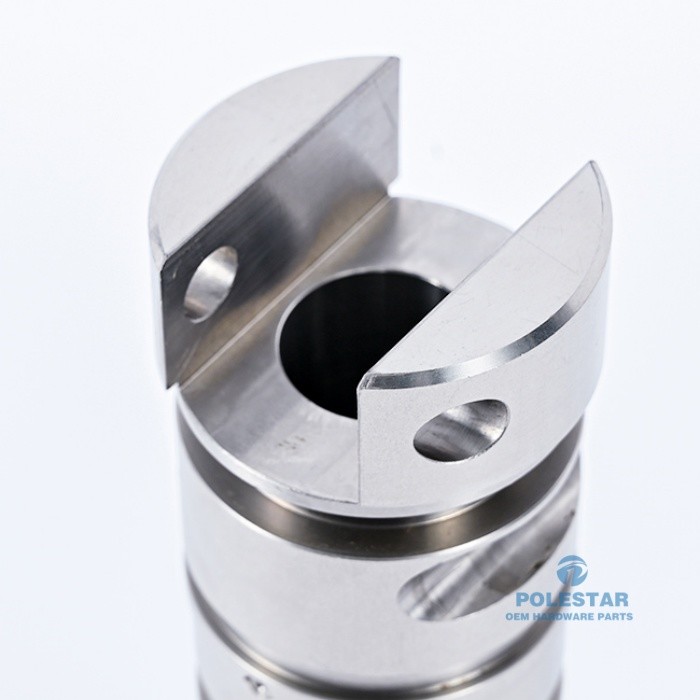

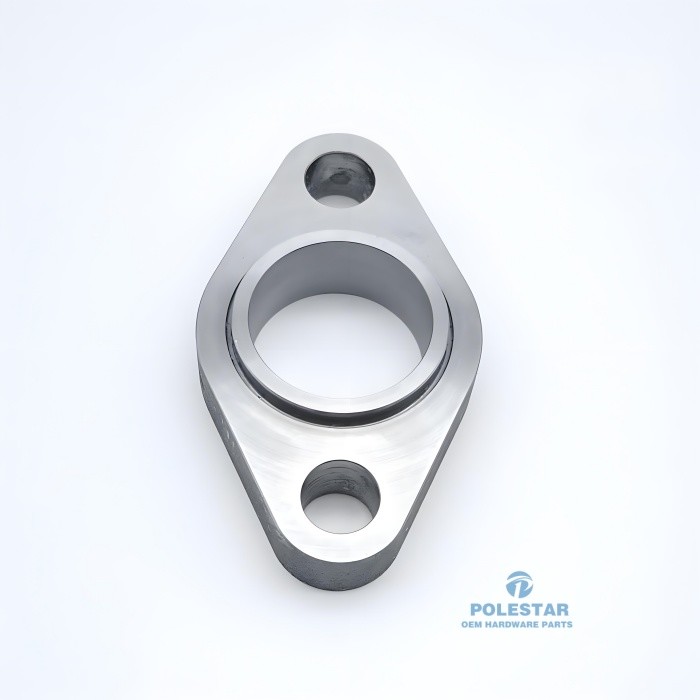

CNC Custom Extremely Precision Machined Metal Parts With Trust Titanium Alloy For Agricultural Machinery Variable Speed Gear

Machined metal parts are precision components created by removing material from solid workpieces using CNC mills, lathes, and multi-axis machining centers. They achieve tight tolerances (±0.005 mm), excellent surface finishes, and superior mechanical properties—ideal for aerospace, medical, automotive, and industrial applications.

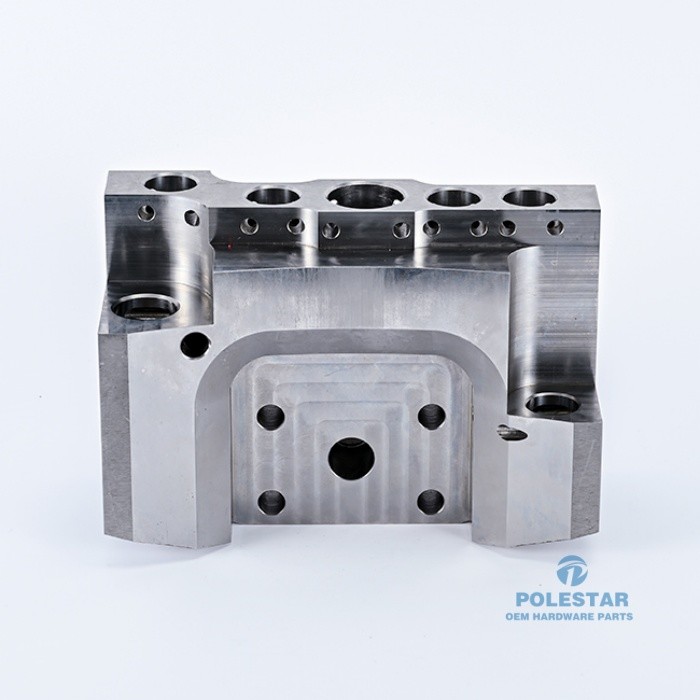

What are Machined Metal Parts?

Machined metal parts are components manufactured through subtractive processes including CNC milling, CNC turning, drilling, boring, and grinding. Unlike cast or forged parts, machined metal parts retain full material integrity with no porosity, inclusions, or residual stress from solidification. The process begins with a CAD model converted to G-code, directing tool paths, spindle speeds (up to 30,000 RPM), and feed rates (10-40 m/min).

Machined metal parts achieve tolerances as tight as ±0.005 mm and surface finishes down to Ra 0.4 µm (mirror finish). Capabilities range from micro-machining (features as small as 0.1 mm) to large components (2,000+ mm). Materials include aluminum, stainless steel, titanium, brass, Inconel, and engineering plastics. Multi-axis machining (up to 5-axis) enables complex geometries including undercuts, angled features, and contoured surfaces in a single setup, eliminating secondary operations.

Material Specifications:

• Aluminum (6061-T6, 7075-T6): Most common for general machined metal parts. 6061-T6 offers good strength (310 MPa) and excellent machinability (100% rating). 7075-T6 provides high strength (572 MPa) for aerospace applications. Density 2.70 g/cm³. Corrosion-resistant.
• Stainless Steel (303, 304, 316, 17-4 PH): 303 offers best machined metal parts (78% rating) with sulfur addition. 304/316 for corrosion resistance (marine, medical). 17-4 PH precipitation-hardens to 1,100+ MPa. Density 7.93 g/cm³.
• Steel (12L14, 1045, 4140, 4340): 12L14 contains lead for high-speed machined metal parts (150% rating). 4140/4340 alloy steels heat-treatable to 50-55 HRC for shafts and gears. Tensile strength 570-650 MPa (annealed).
• Titanium (Grade 2, Grade 5 Ti-6Al-4V): Grade 5 is most common for aerospace and medical implants. High strength-to-weight ratio (tensile 900-1,000 MPa, density 4.43 g/cm³). Poor machined metal parts (15-20% rating); requires rigid setups and carbide tooling.
• Brass (C360): Free-machining brass (100%+ rating). Excellent conductivity (26% IACS). Tensile 400-450 MPa. Used for fittings, connectors, decorative parts.
• Copper (C101, C110): High electrical and thermal conductivity (101% IACS, 391 W/m·K). Soft and gummy; requires sharp tooling. Used for busbars, heat sinks, electrodes.
• Superalloys (Inconel 718, Hastelloy): High-temperature strength up to 980°C. Extremely poor machined metal parts (10-15% rating). Requires ceramic or CBN tooling, low speeds (20-50 m/min). Used for turbine components, oil & gas downhole tools.

Surface Finishes:

• As-Machined: Standard finish after cutting. Visible tool marks; Ra 1.6-3.2 µm. Lowest cost; functional surfaces only.
• Bead Blasted: Glass or ceramic media at pressure creates uniform matte finish. Ra 1.6-3.2 µm. Hides tool marks; prepares for coating or anodizing.
• Anodizing (Type II): Electrochemical oxide layer on aluminum. 5-25 µm thickness. Clear, black, or colors. Enhances corrosion and wear resistance.
• Anodizing (Type III / Hardcoat): Thicker oxide layer (25-75 µm); hardness 70 HRC. Maximum wear and corrosion protection for aluminum.
• Passivation: Chemical treatment for stainless steel. Removes free iron; enhances natural chromium oxide layer. Required for medical and food-grade parts.
• Electroless Nickel Plating: Autocatalytic nickel-phosphorus coating. Uniform 5-50 µm thickness. Hardness 400-600 HV (up to 1,000 HV with heat treatment). Corrosion and wear resistant.
• Powder Coating: Electrostatic polymer coating. 60-120 µm thickness. Wide RAL color range. Durable, UV-resistant. Heavier than anodizing.
• Electropolishing: Electrochemical removal of surface material. Removes 0.01-0.05 mm. Ra 0.2-0.4 µm mirror finish. Improves cleanability; deburrs.
• Black Oxide: Conversion coating for steel. <2 µm thickness. Mild corrosion resistance; anti-glare black finish. Common for tools and fasteners.
• Zinc Plating: Electroplated zinc with chromate (clear, yellow, black). 5-15 µm thickness. 72-144h salt spray. Low-cost corrosion protection for steel.

Applications:

• Aerospace & Defense: Structural brackets, engine mounts, landing gear components, avionics housings, ordinance parts. Tolerances ±0.005 mm; AS9100 certified; full material traceability. Aluminum 7075, titanium 6Al-4V, Inconel 718.
• Medical & Dental: Surgical instruments, orthopedic implants (hip/knee), bone screws, dental abutments, surgical power tools. Biocompatible materials (316 stainless, titanium). ISO 13485; passivated or electropolished finishes (Ra 0.4 µm for cleanability).

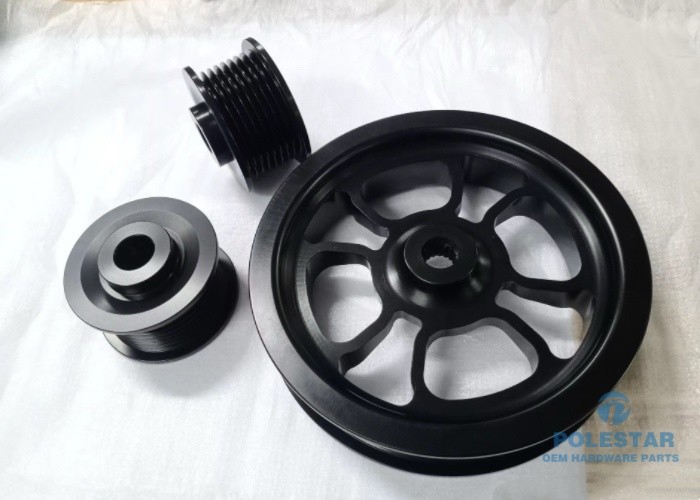

• Automotive & Motorsports: Engine blocks, transmission components, suspension arms, turbocharger housings, custom performance parts. High-volume consistency; IATF 16949. 6061 aluminum, 4140/4340 steel.
• Industrial Machinery: Hydraulic manifolds (3,000-5,000 psi), pneumatic valves, pump shafts, gearboxes, robotic arm components, fixture tooling. Sealing surfaces require Ra ≤0.8 µm. 6061 aluminum, 316 stainless, 4140 steel.
• Electronics & Semiconductors: Heat sinks, RF enclosures (EMI shielding), connector housings, semiconductor chamber components. Tight tolerances (±0.01 mm); conductive finishes (chem film, electroless nickel). Aluminum 6061, copper C110.
• Oil & Gas: Valve bodies, drill collars, downhole tools, wellhead components, pressure housings (10,000+ psi). Corrosion-resistant alloys (17-4 PH, Inconel 625, Hastelloy). NACE MR0175 compliant.
• Robotics & Automation: Actuator housings, end-effector tooling, sensor mounts, linkage arms, gearboxes. Lightweight aluminum; wear-resistant surfaces (hardcoat anodize, electroless nickel).
• Energy (Renewable & Nuclear): Wind turbine components, solar tracker mechanisms, nuclear reactor components (stainless, Inconel), hydrogen fuel cell plates. Corrosion-resistant; long service life (20+ years).

Best Practice Application Example:

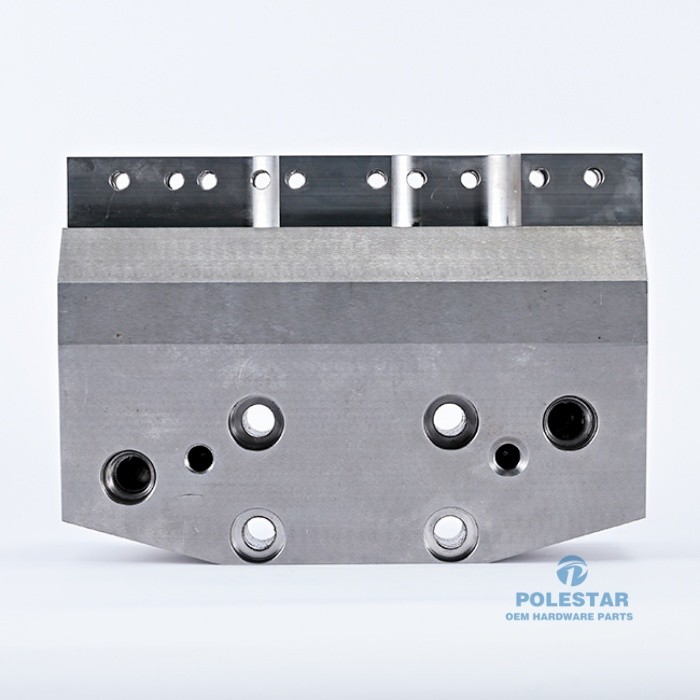

Scenario: Hydraulic manifold failure due to surface finish and material incompatibility.

A heavy equipment manufacturer experienced chronic leakage (3-4 failures annually) on hydraulic manifolds controlling excavator attachment circuits (operating pressure 3,500 psi). The original manifolds were 6061 aluminum with as-machined sealing surfaces (Ra 1.2 µm). After 6-9 months, O-rings extruded into surface tool marks, causing cross-port leakage. Each failure cost $8,500 in downtime + $1,200 in parts/service. The OEM’s cast iron replacement manifold weighed 7.2 kg (vs. 2.8 kg aluminum) and cost $1,800—unacceptable for weight-sensitive mobile equipment.

Selected Solution:

• Material: 6061-T6 aluminum (retained for weight savings)
• Machining: 4-axis CNC milling with finish pass optimization. Sealing surfaces (8 ports, 14 faces) machined with PCD (polycrystalline diamond) tooling.
• Surface Finish: Specified Ra 0.4 µm on all O-ring sealing surfaces (vs. original Ra 1.2 µm). Verified with profilometer (cutoff 0.8 mm, traverse 4 mm).
• Surface Treatment: Type III hardcoat anodizing (50 µm, clear) on all surfaces. Hardness 65-70 HRC provided wear-resistant sealing surface.
• O-Ring Compatibility: Specified 90 durometer polyurethane O-rings (vs. original 70 durometer Buna-N) for higher extrusion resistance.
• Torque: Fasteners (12-point M8 screws, 12.9 grade, dry) torqued to 28 Nm ±10%.

Results:

• Surface finish: Achieved Ra 0.35-0.38 µm on all sealing surfaces (exceeds Ra 0.4 µm spec)
• Leakage: Zero cross-port leakage over 18 months (previous: 3-4 failures annually)
• Wear resistance: Hardcoat anodizing (65-70 HRC) eliminated O-ring groove wear (original aluminum 95 HB)
• Weight: Maintained 2.8 kg (vs. 7.2 kg cast iron)
• Cost: $420 per manifold (vs. $1,800 cast iron)—77% savings
• Annual savings: 4 avoided failures × $9,700 = $38,800 across 8 machines = $310,400
• ROI: New manifold cost amortized within 1 month

Product Advantages:

• Precision of machined metal parts: Tolerances down to ±0.005 mm (ISO 2768-f); surface finishes to Ra 0.4 µm
• Material integrity of machined metal parts: No porosity, inclusions, or voids (unlike castings); 100% dense material
• Material versatility of machined metal parts: Aluminum, stainless, steel, titanium, brass, copper, superalloys, plastics
• Complex geometries of machined metal parts: 5-axis machining enables undercuts, angled holes, contoured surfaces, and deep cavities in one setup
• Scalability of machined metal parts: Prototypes (1-50) to production (10,000+ units); consistent repeatability (CPK >1.33)
• In-house finishing of machined metal parts: Anodizing, passivation, electroless nickel, powder coating, electropolishing
• Lead times of machined metal parts: Rapid prototyping 5-7 days; production 2-4 weeks

Why Choose Us?

• ISO 9001:2015, AS9100D (aerospace), ISO 13485 (medical) certified
• 3, 4, and 5-axis CNC milling (up to 2,000 x 800 x 600 mm)
• CNC turning (up to Ø800 x 3,000 mm) with live tooling and Y-axis
• In-house CMM inspection with full dimensional reports
• Free DFM (Design for Manufacturing) review within 24 hours
• Material traceability from mill to finished part
• ITAR registered for defense components
