Tailored High Quality LED Cabinet Display 8ft Width Modular Design LED Cabinet Display

An LED cabinet display is a modular video wall solution with LED panels housed in aluminum cabinets that tile together seamlessly. It offers high brightness, wide viewing angles, and bezel-free images. Available in custom sizes, pixel pitches from 1.5mm to 10mm, and brightness from 1,000 to 10,000 nits. Suitable for retail, trade shows, corporate lobbies, outdoor advertising, and stadiums. Custom options available for indoor or outdoor use.

What Is an LED Cabinet Display?

An LED cabinet display is a modular, high-brightness digital signage solution consisting of multiple LED panels housed in durable aluminum cabinets that seamlessly tile together to create large-format video walls. Unlike traditional LCD displays with visible bezels, the LED cabinet display offers virtually seamless images, making it the preferred choice for retail, exhibition, commercial, and outdoor advertising environments.

It is characterized by its modular construction, high brightness, and seamless tiling capability. Typical features include SMD (Surface Mount Device) LEDs for superior color consistency, die-cast aluminum cabinets for precision flatness, magnetic front service access for easy maintenance, thin profile design for space efficiency, and daisy-chain power and data connections. Pixel pitches range from 1.5mm to 10mm, cabinet depths from 2 to 8 inches, and brightness levels from 1,000 to 10,000 nits. The LED cabinet display enables stunning visual experiences with vibrant colors, wide viewing angles, and 24/7 reliability.

How an LED Cabinet Display Works:

An LED cabinet display operates by combining thousands of individual RGB LEDs arranged in a grid pattern. Each LED pixel contains red, green, and blue diodes that mix to create millions of colors. A control system sends video signals to driver ICs on each cabinet, which regulate the brightness of each LED at high refresh rates (typically 1,920Hz to 3,840Hz). Multiple cabinets are physically tiled together and electronically synchronized to form one continuous display.

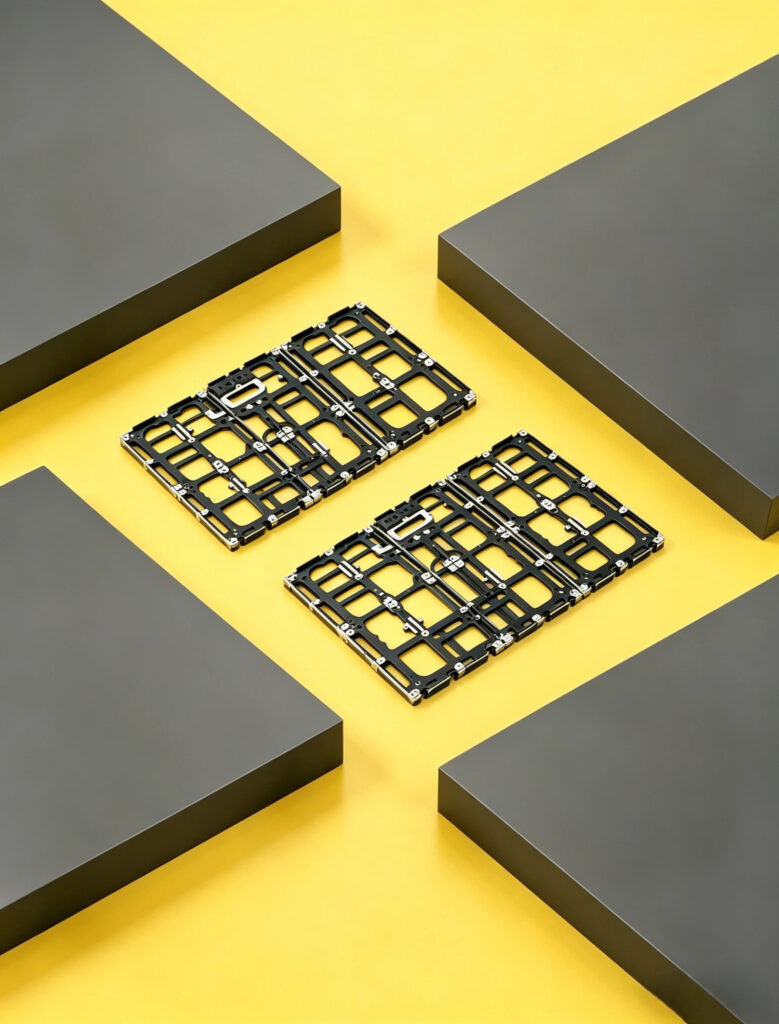

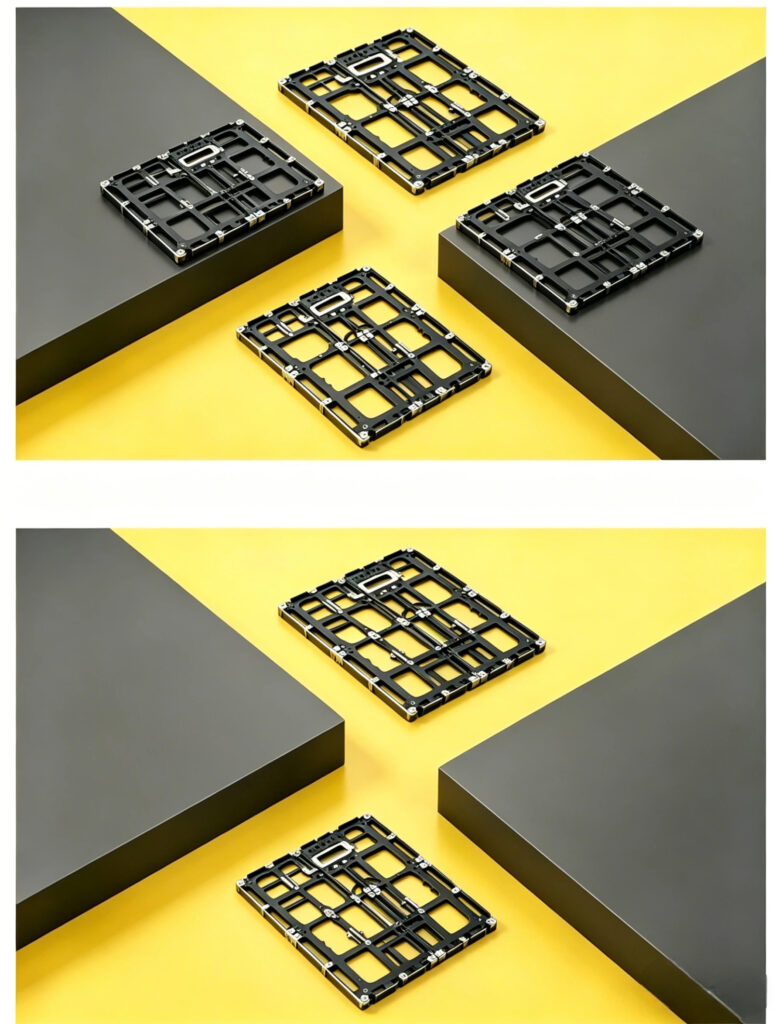

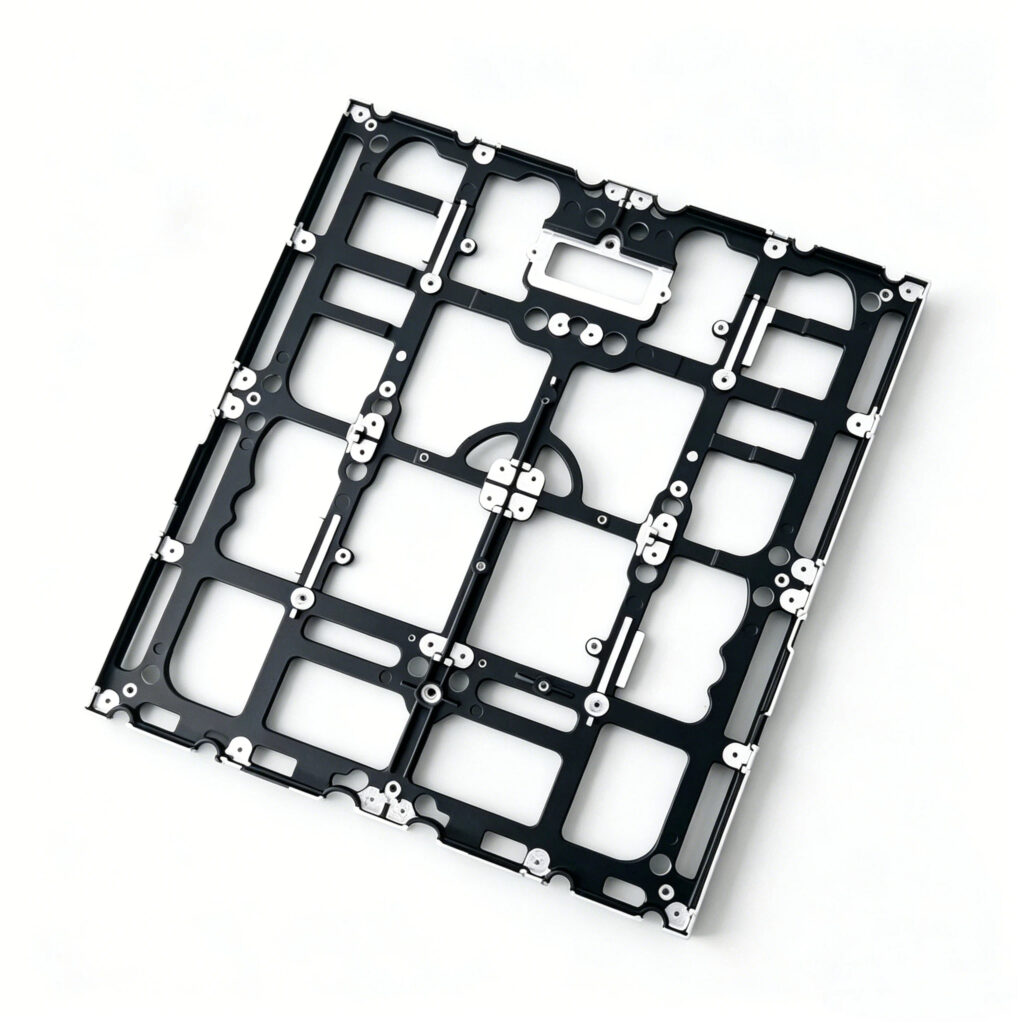

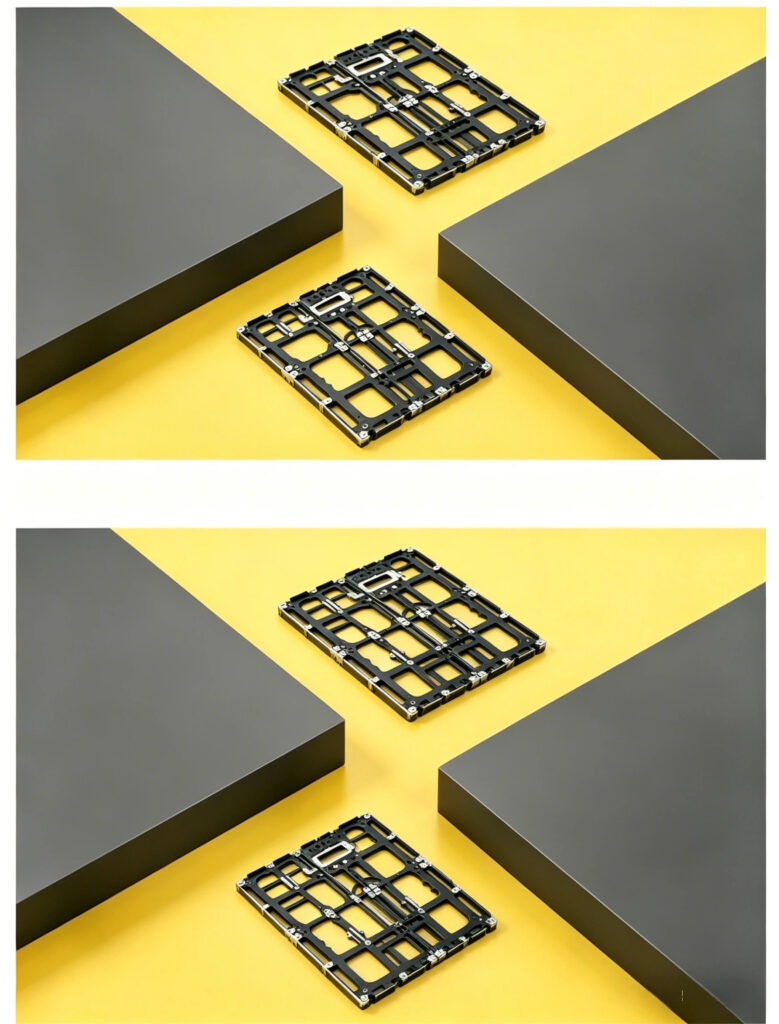

The cabinet design of an LED cabinet display ensures perfect alignment between adjacent panels. Precision-machined locating pins and magnetic locks hold cabinets in precise registration. Flatness adjustment screws compensate for any mounting surface irregularities. The result is a seamless image without gaps or misalignment, even across dozens of cabinets.

Key Specifications:

Types of LED Cabinet Display:

Indoor LED Cabinet Display:

Features finer pixel pitches (1.5mm to 4mm) for close viewing distances, lower brightness (1,000 to 2,000 nits) suitable for indoor lighting, and front service access for easy maintenance in tight installations. Suitable for retail stores, corporate lobbies, and control rooms.

Outdoor LED Cabinet Display:

Features larger pixel pitches (4mm to 10mm) for longer viewing distances, high brightness (5,000 to 10,000 nits) for sunlight visibility, IP65 weatherproof rating for rain and dust protection, and rear service access for safety in elevated installations. Suitable for billboards, stadiums, and building facades.

Rental LED Cabinet Display:

Features lightweight, rugged cabinets with fast locking mechanisms for quick assembly and disassembly. Stackable and flight-case compatible for transport. Suitable for concerts, trade shows, and temporary events.

Fixed Installation LED Cabinet Display:

Features permanent mounting with robust construction, integrated power and data cabling, and flush wall or hung installation. Suitable for retail permanent displays, corporate lobbies, and transportation hubs.

Curved LED Cabinet Display:

Features adjustable cabinet angles or pre-curved cabinets for concave or convex installations. Suitable for immersive environments, architectural features, and creative displays.

Transparent LED Cabinet Display:

Features high transparency (50% to 80%) with LEDs mounted on transparent substrates. Suitable for storefront windows, glass facades, and see-through applications.

Applications:

Retail Stores:

LED cabinet display creates eye-catching window displays, in-store promotions, and brand messaging. High brightness ensures visibility even in brightly lit retail environments.

Trade Shows and Exhibitions:

LED cabinet display provides stunning backdrops for booths, product launches, and brand experiences. Modular design allows custom sizes and shapes.

Corporate Lobbies:

LED cabinet display welcomes visitors with dynamic brand content, wayfinding, and corporate messaging. Sleek, slim cabinets blend with modern architecture.

Control Rooms:

LED cabinet display presents critical data, surveillance feeds, and system status with high resolution and 24/7 reliability. Narrow pixel pitches ensure text readability.

Stadiums and Arenas:

LED cabinet display shows live action, replays, statistics, and sponsor messages. High brightness and wide viewing angles reach all seats.

Outdoor Advertising:

LED cabinet display on billboards and building facades delivers impactful advertising. Weatherproof construction ensures year-round operation.

Excellent Case: Retail Store Window Display

Background: A global sportswear brand wanted an eye-catching window display for its flagship store. Traditional LCD displays had visible bezels that broke the image. High ambient light from the street washed out standard displays.

Solution: An LED cabinet display was installed with 3mm pixel pitch, 5,000 nits brightness, and seamless tiling across 12 cabinets forming a 10ft x 6ft video wall. The slim 3-inch cabinet depth fit within the existing window frame. Front service access allowed maintenance from inside the store.

Results:

• Visual Impact: Seamless image with vibrant colors visible from 50 feet away
• Brightness: 5,000 nits overcame direct sunlight through the window
• Customer Engagement: 40 percent increase in window gazing time
• Installation: Completed in 2 days with no structural modifications
• Reliability: Zero pixel failures after 2 years of 16/7 operation

This case demonstrates how the LED cabinet display transforms retail windows into dynamic, high-impact marketing tools.

How to Select the Right LED Cabinet Display:

Choosing the appropriate LED cabinet display requires careful consideration of several factors. Viewing distance determines pixel pitch, with 1.5mm to 2.5mm for close viewing (6-10 feet), 3mm to 4mm for medium distances (10-20 feet), and 5mm to 10mm for long distances (20+ feet). Installation environment determines indoor or outdoor rating. Ambient light levels determine brightness needs, with 1,000-2,000 nits for indoor and 5,000-10,000 nits for outdoor or window-facing displays. Available space determines cabinet depth and mounting configuration. Content type influences resolution and refresh rate requirements.

Installation Best Practices:

Proper installation ensures the LED cabinet display performs reliably. Ensure mounting structure is level, plumb, and capable of supporting cabinet weight. Install cabinets starting from reference corner, using locating pins for alignment. Adjust flatness screws to achieve seamless surface across all cabinets. Connect power and data cables in daisy chain configuration. Upload calibration files to ensure uniform brightness and color across all cabinets. Test display with full-white, full-black, and color gradient patterns before final sign-off.

Maintenance and Troubleshooting:

Regular maintenance extends LED cabinet display life. Clean cabinet surfaces and louvers quarterly to prevent dust buildup. Monitor temperature and fan operation in outdoor installations. Replace failed modules quickly using front service access. Recalibrate display annually to maintain color uniformity. Keep spare modules, power supplies, and receiving cards on hand for rapid repair.

Conclusion:

The LED cabinet display represents the pinnacle of digital signage technology, enabling stunning, seamless large-format video walls for retail, exhibition, commercial, and outdoor advertising applications. By understanding the types, specifications, and selection criteria outlined in this guide, the right LED cabinet display can be selected for any application—from intimate retail window displays to massive outdoor billboards.
