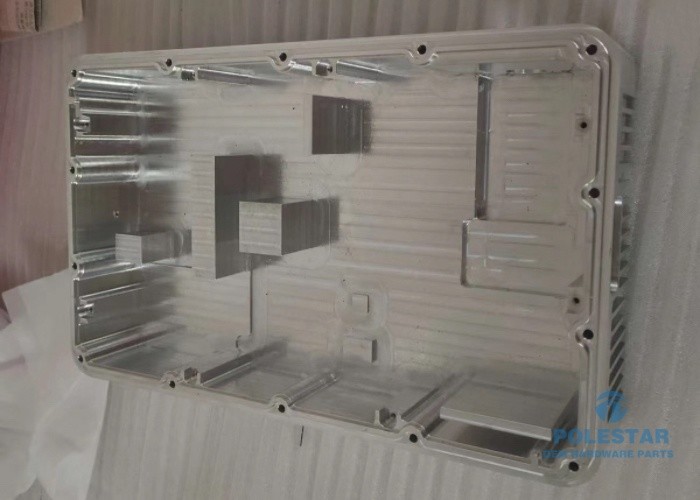

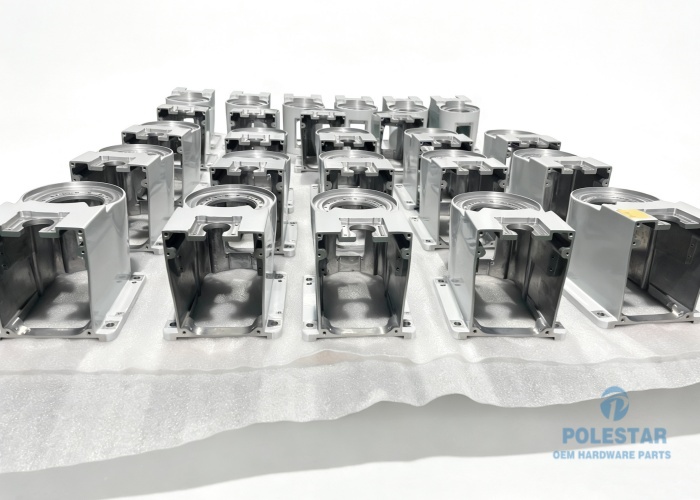

IP65 Waterproof Precise Industrial Control Box Enclosure Made of Aluminum Alloy Attractive PCB Box Custom CNC Machining Milling
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
Industrial control boxes are rugged enclosures housing electrical controls, PLCs, relays, and wiring for machinery and process automation. They protect sensitive components from dust, moisture, chemicals, and impacts. Standard ratings include NEMA 4X (watertight/corrosion-resistant) and NEMA 12 (dust/drip), with IP66/67 equivalents for washdown environments.

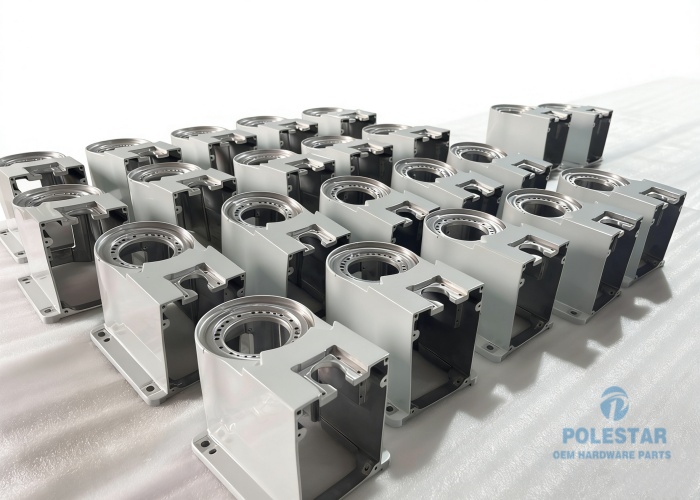

What is an Industrial Control Box?
An industrial control box is a protective enclosure designed to house electrical and electronic control equipment in manufacturing, processing, and infrastructure environments . Unlike consumer electrical boxes, industrial control boxs feature robust construction, environmental sealing, and thermal management provisions.
Industrial control box contain components such as programmable logic controllers (PLCs), motor drives, terminal blocks, power supplies, relays, and human-machine interface (HMI) panels . Industrial control boxes are manufactured in various configurations: wall-mount (small to medium), freestanding (large), and floor-mount consoles with sloped tops for operator interface . Material selection depends on environment: painted steel (NEMA 12) for indoor dry locations, stainless steel (NEMA 4X) for washdown/corrosive areas, and aluminum (lightweight, corrosion-resistant) for outdoor or weight-sensitive applications. Key features of industrial control box include hinged doors with latches, removable back panels for component mounting, gland plates for cable entry, and cooling provisions such as filtered fans or air conditioners for heat-generating components .
Material Specifications:
- Mild Steel (Carbon Steel): Most common for indoor industrial control boxes; cost-effective; painted finish; gauge 14-16 (1.5-1.9 mm) typical; NEMA 12 rating
- Stainless Steel (304/316L): For washdown, corrosive, and outdoor environments; 304 for general corrosion resistance; 316L for marine/chemical exposure; gauge 14-16; NEMA 4X
- Aluminum (6061/6063): Lightweight (1/3 weight of steel); corrosion-resistant; ideal for portable or weight-sensitive applications; thickness 2.0-3.0 mm; often anodized
- Fiberglass Reinforced Polyester (FRP): Non-metallic; corrosion-resistant; lightweight; for severe chemical environments; NEMA 4X
- Polycarbonate: Transparent or opaque; impact-resistant; for indoor clean environments; lower cost than metal
Surface Finishes:
| Finish | Material | Thickness | Key Characteristics |
| Powder Coat (RAL colors) | Steel, Aluminum | 60-120 µm | Durable; corrosion-resistant; wide color range; 1,000h+ salt spray |
| E-coat (Electrophoresis) | Steel | 20-30 µm | Uniform coverage; excellent rust prevention; primer for powder |
| Anodizing (Type II/III) | Aluminum | 5-75 µm | Clear or colored; enhances corrosion and wear resistance |
| Bead Blasted | Aluminum, Stainless | N/A | Uniform matte finish; hides tool marks; prepares for anodizing |
| Passivation | Stainless Steel | N/A | Removes free iron; enhances natural corrosion resistance |
| Electropolishing | Stainless Steel | 0.01-0.05 mm removed | Bright finish; improves cleanability; reduces surface roughness |
Applications:
- Manufacturing & Assembly: Control panels for production lines, robotic cells, conveyor systems. Indoor NEMA 12 steel boxes with filtered fans for PLC/drive cooling.
- Food & Beverage Processing: Washdown-rated enclosures for mixing, filling, packaging equipment. Stainless steel 304/316L NEMA 4X with sloped tops to prevent pooling.
- Chemical & Pharmaceutical: Corrosion-resistant enclosures for hazardous areas. 316L stainless or FRP with purge/pressurization systems for Class I/II Div 2 locations.
- Water & Wastewater: Outdoor-rated enclosures for pump controls, SCADA remote terminal units (RTUs). Aluminum or 304 stainless NEMA 4X with sun shields and heaters.
- Oil & Gas: Explosion-proof (XP) enclosures for wellheads, pipelines, refineries. Cast aluminum or steel, Class I Div 1 rated, with conduit entries.
- HVAC & Building Automation: Smaller enclosures for rooftop equipment, air handlers, boiler controls. Galvanized steel or polycarbonate with hinged covers.
- Material Handling: Control boxes on cranes, hoists, lift tables, AGVs. Compact wall-mount steel or aluminum with vibration-resistant hardware.
- Outdoor Infrastructure: Traffic control, telecom base stations, solar inverters, EV chargers. Aluminum or stainless NEMA 4X with UV-resistant powder coat.
Best Practice Application Example:
Scenario: Industrial control box failure in high-moisture automotive assembly plant.
An automotive assembly plant experienced repeated failures of PLC industrial control box at a robotic welding station located near a paint booth washdown area. The existing NEMA 12 steel boxes (mild steel, powder coated) suffered corrosion at weld seams and door gaskets after 9 months. Moisture ingress (condensation from temperature cycling and direct spray) caused PLC output module failures every 4-6 weeks, costing $3,200 per event in parts and labor plus 4 hours downtime per failure (8 events annually).
Selected Solution:
Enclosure: 304 stainless steel NEMA 4X wall-mount control box, 500 x 400 x 200 mm, 14 gauge (1.9 mm). All-welded seam construction; no external fasteners. Sloped top (15°) to shed liquids.
Surface Finish: Electropolished interior and exterior (Ra 0.8 µm) to eliminate crevices and improve corrosion resistance. Passivated per ASTM A967.
Gasketing: Closed-cell silicone foam door gasket with continuous bonding (no splices); drain holes (with Gore vent) to prevent condensation buildup.
Cooling: Vortex cooler (thermostatically controlled) for NEMA 4X rating; no external filters to clog; maintains internal temperature 10°C below ambient.
Cable Entry: Stainless steel compression cord grips for all cables; NEMA 4X rated.
Hardware: 316 stainless steel hinges and quarter-turn latches with padlock hasp.
Results:
- Corrosion: Zero visible corrosion at weld seams or gaskets after 24 months (previous boxes failed at 9 months)
- Moisture ingress: No moisture detected during bi-annual inspections; humidity indicator cards remain blue
- Downtime: Zero PLC output module failures over 24 months (previous: 8 failures annually)
- Temperature: Vortex cooler maintains internal temperature 8-12°C below ambient (35°C ambient = 25-27°C internal)
- Total savings: $25,600 annually in parts/labor + 32 hours downtime eliminated (valued at $12,800) = $38,400
- ROI: $2,100 per upgraded box × 4 boxes = $8,400 investment; payback period 2.6 months
Product Advantages:
- Environmental protection: NEMA 4X (watertight/corrosion-resistant), NEMA 12 (dust/drip), IP66/IP67 ratings
- Material options: Painted steel (indoor), stainless steel 304/316L (washdown/marine), aluminum (lightweight/outdoor), FRP (chemical-resistant)
- Corrosion resistance: Electropolished stainless, anodized aluminum, powder-coated steel with 1,000h+ salt spray
- Thermal management: Filtered fans, air conditioners, vortex coolers, heat exchangers, or passive cooling fins
- Customization: Cutouts, gland plates, back panels, viewing windows, pushbutton holes, silk screening
- Certifications: UL 508A listed for industrial control panels; NEMA and IP testing validated
