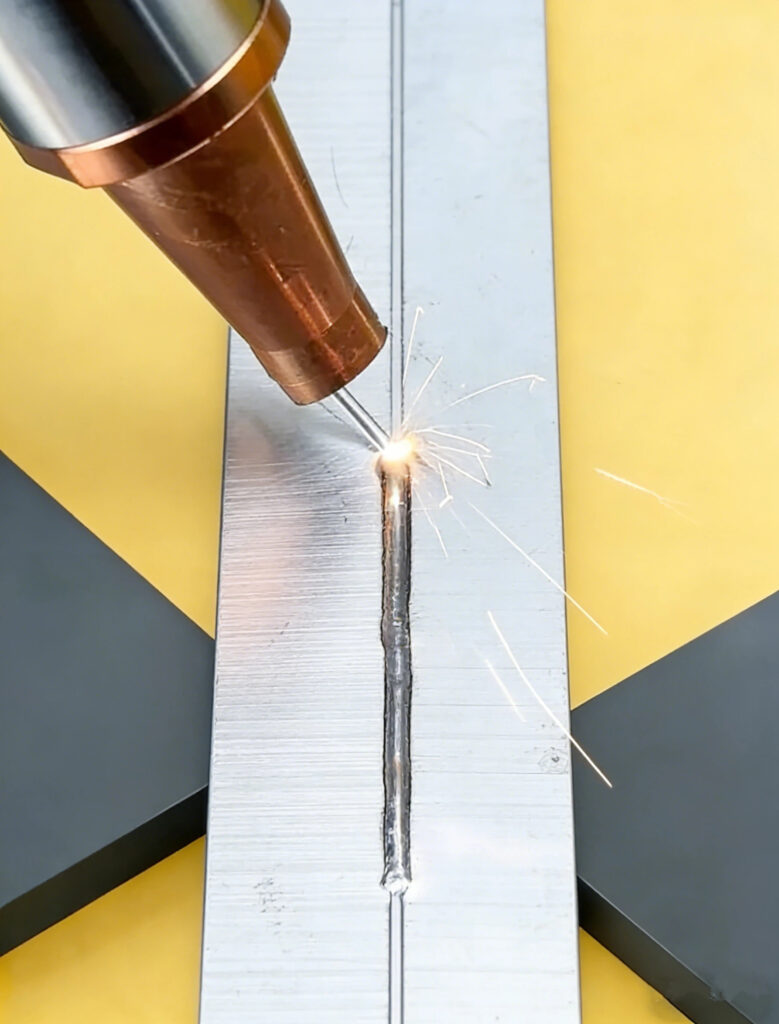

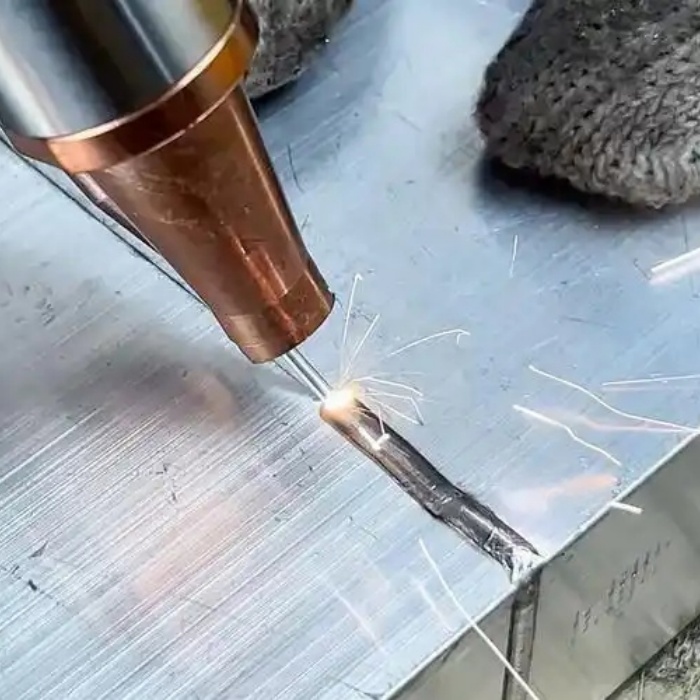

High-Quality Hand Held Laser Welding Machine Accessories Beauty CNC Copper Nozzles Laser Welding Nozzles
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Hand held laser welding is a portable, fiber-optic welding system that delivers a focused laser beam through a lightweight handheld torch, enabling high-speed, precision welding of metal components with minimal heat distortion and post-weld cleanup.
What Is Hand Held Laser Welding?
Hand held laser welding represents a paradigm shift from traditional arc welding methods. Unlike TIG or MIG welding, which rely on an electric arc between an electrode and the workpiece, hand held laser welding uses a fiber laser source (typically 1,000W–3,000W) transmitted through a flexible cable to a handheld welding head. The laser beam creates a concentrated heat source with a small keyhole effect, enabling deep penetration with a minimal heat-affected zone (HAZ) of <0.1mm. MRO buyers evaluate hand held laser welding systems based on welding speed (up to 120mm/s), material thickness capability (0.5mm–8mm), wobble width adjustment (0–5mm), and power stability (±2%).
Material:
| Material | Weldability | Key Data |
| Stainless Steel | Excellent | 4–8mm penetration, no oxidation |
| Carbon Steel | Excellent | 4–8mm penetration, high strength |
| Aluminum | Good (with wobble) | 3–6mm penetration, high reflectivity |
| Galvanized Steel | Excellent | Minimal spatter, no burn-through |
| Copper / Brass | Moderate | 1.5–3mm, high-power required |
| Titanium / Nickel | Excellent | Aerospace applications |
Surface Treatment:
| Treatment | Standard | Key Data |
| Wobble / Oscillation | Swing Width 0–5mm | Gap bridging, smoother beads |
| Pulse Mode | Frequency 1–280 Hz | Lower heat input, thin materials |
| Continuous Mode | Full Power | Deep penetration, thick sections |
| Stitch Mode | Intermittent | Tack welding, heat control |
| Gas Purging | Argon / Nitrogen | 15–25 L/min, oxidation prevention |
| Wire Feeding | 0.8–1.6mm Dia. | Gap filling, structural integrity |
Applications:
| Sector | Key Requirement | Typical Application |
| Metal Fabrication | Speed + No Grinding | 4x faster than TIG, zero post-weld cleanup |
| Kitchen & Sanitary | Aesthetic Welds | Stainless steel sinks, cookware, seamless joints |
| Automotive Repair | Thin Material | Body panels, exhausts, no burn-through |
| Structural Steel | On-Site Portability | Handrails, staircases, beam connections |
| HVAC & Ductwork | Galvanized Steel | Fume-free, minimal spatter |
| Aerospace / EV | Precision | Battery busbars, titanium components |
Case Study: Hand Held Laser Welding for Custom Metal Fabrication
Challenge: A custom metal fabrication shop in Ohio specializing in aerospace and automotive components processed over 200 different material configurations annually. With 8–10 material changes per shift across three welding stations, operators spent 15–20 minutes between jobs manually adjusting parameters—laser power, pulse frequency, wobble width, gas flow, and wire speed. This resulted in 30+ hours of weekly productivity loss, 5% weld rejection rate, and $8,000 annual rework costs.
Solution: The shop deployed a hand held laser welding system with integrated process database technology. The hand held laser welding configuration included:
Parameter Library: 150+ pre-validated parameter sets stored by intuitive names (e.g., “SS304-3mm-ButtWeld”) on a 7-inch touchscreen. Material change setup time dropped from 15–20 minutes to under 30 seconds.
Wobble Technology: Adjustable wobble width (0–5mm) enabled gap bridging up to 1.5mm without filler rod, eliminating rework from ill-fitting joints.
Gas Management: Pre-flow (0.3s) and post-flow (1.5s) settings with 20 L/min argon eliminated oxidation on stainless welds.
Power Stability: ±2% power stability over 2 years ensured consistent penetration across production runs.
Results (12 months, 150+ parameter sets):
Setup time: 15–20 min → 30 sec per material change
Weld rejection rate: 5% → 0.5%
Annual rework cost: $8,000 → $1,200
New operator training: 2 weeks → 2 days
Annual capacity increase: $180,000 (without adding equipment)
The hand held laser welding system enabled the shop to accept higher-mix, lower-volume contracts profitably, with payback achieved in 9 months.
Why Choose Our Hand Held Laser Welding?
Radical Productivity: Hand held laser welding operates at speeds 4–10 times faster than TIG welding, with single-pass capabilities that eliminate multiple weld passes and post-weld grinding.
Engineered for Consistency: Our hand held laser welding systems feature wobble oscillation technology (0–5mm) that bridges gaps up to 1.5mm and produces uniform, spatter-free beads. With ±2% power stability, every weld meets quality standards.
Smart Parameter Management: The hand held laser welding system includes a built-in process database with 150+ pre-optimized parameter sets for common materials. Operators select material type and thickness—the system auto-loads power, wobble, gas, and wire settings.
True Portability: At 29–39 kg with 220V single-phase power, our hand held laser welding systems operate in field environments, high-altitude locations, and remote job sites where traditional welding is impractical.
Proven ROI: Documented case studies show hand held laser welding achieving payback within 6–12 months through labor reduction (60–80%), scrap reduction (80–90%), and elimination of post-weld finishing.
