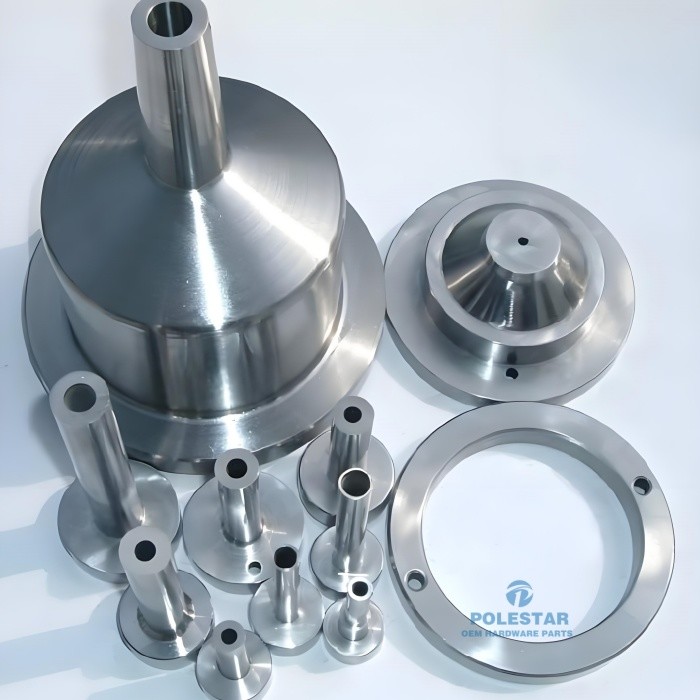

Reliable 304 Stainless Steel CNC Turning Services Medical-Grade Custom Components for Medical

Professional CNC turning services utilize advanced turning centers with live tooling capabilities, enabling milling, drilling, and tapping operations in a single setup. These CNC turning services accommodate workpiece diameters from 1 mm to 300 mm and lengths up to 600 mm, with bar feed capacities supporting high-volume production.

Leading CNC turning services employ Swiss-type machines for micro components as small as 0.5 mm diameter with length-to-diameter ratios exceeding 10:1. Typical spindle speeds range from 6,000 to 12,000 RPM, with rapid traverse rates of 30 m/min. Quality-focused CNC turning services implement in-process probing and post-process CMM inspection to verify dimensional accuracy.

Material capabilities within these CNC turning services include aluminum (6061-T6, 7075-T6), stainless steel (303, 304, 316, 17-4 PH), titanium (Grade 5), brass, and engineering plastics such as PEEK and acetal. Production volumes supported by these CNC turning services span prototype quantities of 5 to 50 pieces, mid-volume runs of 500 to 5,000 units, and high-volume production exceeding 100,000 pieces annually.

Secondary operations integrated within comprehensive CNC turning services include heat treatment, anodizing, passivation, electropolishing, and plating. Lead times for expedited CNC turning services range from 5 to 10 business days for prototype orders, while production-scale CNC turning services typically deliver within 3 to 6 weeks depending on complexity and quantity. Certifications held by established CNC turning services include ISO 9001:2015 and AS9100D for aerospace applications, ensuring documented traceability and process control throughout all CNC turning services operations.

Key CNC turning operations include:

• Facing: Cutting the end surface square to the axis
• OD (Outside Diameter) Turning: Reducing external diameter
• ID (Inside Diameter) Boring: Enlarging internal holes
• Grooving/Parting: Cutting slots or separating finished parts
• Threading: Producing internal or external threads
• Drilling/Tapping: Axial hole creation and threading

Cycle times vary by complexity; a simple shaft may take 2-5 minutes, while complex components with live tooling may require 10-20 minutes. CNC turning services accommodates part diameters from 2 mm up to 800 mm, with lengths up to 3,000 mm on large-bore lathes.

What is CNC Turning services?

CNC turning services refer to precision machining solutions where computer-controlled lathes rotate workpieces against stationary cutting tools to produce cylindrical components with high accuracy. These services encompass single-spindle, multi-spindle, and Swiss-type turning operations capable of achieving tolerances of ±0.005 mm and surface finishes down to Ra 0.4 µm. Professional CNC turning services deliver finished components including shafts, bushings, threaded fasteners, and complex rotational parts for aerospace, medical, and automotive industries.

Material of CNC Turning services:

CNC turning accommodates virtually all engineering materials. Below are the most commonly CNC turning materials in MRO applications.

Aluminum (6061-T6, 7075-T6, 2024):

• High strength-to-weight ratio; excellent machinability
• Recommended cutting speed: 600-1,200 m/min
• Produces continuous chips; excellent surface finish as-turned
• Common applications: hydraulic components, aerospace fittings, electronic housings

Stainless Steel (303, 304, 316, 17-4 PH):

• Corrosion resistance; high strength; 303 offers best machinability
• Recommended cutting speed: 150-250 m/min
• Work hardens during cutting; requires rigid setup and sharp tooling
• Common applications: medical implants, marine hardware, food processing equipment

Carbon & Alloy Steel (12L14, 1045, 4140, 4340):

• Wide strength range; heat treatable to 50-60 HRC
• Recommended cutting speed: 200-400 m/min (annealed); 80-150 m/min (hardened)
• 12L14 contains lead for superior machinability; ideal for high-volume turning
• Common applications: shafts, gears, hydraulic pistons, fasteners

Titanium (Grade 2, Grade 5 Ti-6Al-4V):

• Exceptional strength-to-weight (density 4.43 g/cm³); biocompatible
• Recommended cutting speed: 40-80 m/min
• Requires positive rake tooling; flood coolant mandatory; prone to work hardening
• Common applications: aerospace components, orthopedic implants, high-performance automotive

Brass & Copper (C360 Free-Machining Brass, C110 Copper):

• Excellent conductivity; superior machinability (C360 rated 100% machinability)
• Recommended cutting speed: 300-600 m/min
• Produces fine chips; excellent as-machined finish; no coolant often required
• Common applications: electrical connectors, valve components, decorative hardware

Engineering Plastics (Acetal/Delrin, Nylon 6/6, PEEK, PTFE):

• Lightweight; chemical resistant; self-lubricating
• Recommended cutting speed: 200-500 m/min
• Requires sharp tooling; avoid heat buildup to prevent melting; PEEK requires carbide tooling
• Common applications: bearing cages, insulators, medical devices, chemical pump components

Super Alloys (Inconel 718, Hastelloy, Monel):

• High-temperature strength up to 980°C; extreme corrosion resistance
• Recommended cutting speed: 20-50 m/min
• Extremely difficult to machine; requires ceramic or CBN tooling; rigid setup mandatory
• Common applications: turbine components, oil & gas downhole tools, chemical processing equipment

Surface Finishes of CNC Turning services:

Surface finishes improve corrosion resistance, wear durability, and cosmetic appearance after turning.

• As-Turned: Standard finish after turning with visible feed lines. Surface roughness Ra 1.6-6.3 µm. Suitable for functional surfaces where appearance is not critical. No additional cost.
• Finish Turn: Optimized parameters with reduced feed rate and increased cutting speed. Surface roughness Ra 0.8-1.6 µm. Achieved through secondary finishing pass. Common for bearing seats and sealing surfaces.
• Hard Turning: Turning of hardened materials (45-65 HRC) using CBN (cubic boron nitride) or ceramic inserts. Surface roughness Ra 0.4-0.8 µm. Replaces grinding operations; reduces cycle time and eliminates secondary setups.
• Polished: Abrasive finishing after CNC turning services removes tool marks. Surface roughness Ra 0.2-0.4 µm. Common for hydraulic pistons, medical implants, and decorative components.
• Bead Blasted: Glass or ceramic media applied at pressure creates uniform matte finish. Surface roughness Ra 1.6-3.2 µm. Hides tool marks and prepares surface for coating. Common for cosmetic and painted parts.
• Plated: Electroplated coatings applied after turning. Zinc plating provides corrosion protection (72h+ salt spray). Nickel plating offers wear resistance and uniform thickness. Chrome plating provides decorative finish and hardness up to 70 HRC.
• Anodized: Electrochemical oxide layer applied to aluminum parts. Type II (5-25 µm) for corrosion protection and color options. Type III hardcoat (25-75 µm) for wear resistance with hardness up to 70 HRC.
• Passivated: Chemical treatment for stainless steel that removes free iron and enhances chromium oxide layer. Essential for medical and food-grade components to maintain corrosion resistance.

Specifications of CNC Turning services:

CNC turning achieves dimensional precision defined by international standards. Tolerances are specified per ISO 2768, with tighter tolerances achievable through dedicated processes.

• Diameter Tolerance: Standard  CNC turning services achieves ±0.05 mm. Precision  CNC turning with dedicated fixturing and temperature control achieves ±0.005-0.013 mm. Critical for bearing seats and sealing surfaces.
• Length Tolerance: Standard  CNC turning services achieves ±0.10 mm. Precision  CNC turning achieves ±0.025-0.05 mm. Dependent on part length and fixturing method.
• Concentricity/Runout: Standard  CNC turning achieves 0.05 mm. Precision  CNC turning achieves 0.005-0.013 mm total indicator reading (TIR). Critical for rotating components and parts requiring secondary operations.
• Surface Roughness: As-turned achieves Ra 1.6-3.2 µm. Finish turning achieves Ra 0.8-1.6 µm. Hard turning with CBN achieves Ra 0.4-0.8 µm. Polishing achieves Ra 0.2-0.4 µm.
• Thread Class: Metric threads per ISO 965: standard class 6H (internal) and 6g (external). Precision class 4H/4g available for high-reliability applications.
• Maximum Part Size: Diameter up to 800 mm on standard lathes; up to 500 mm for precision turning. Length up to 3,000 mm on large-bore lathes; length-to-diameter ratios exceeding 8:1 require steady rest support.
• Spindle Speed: Standard lathes operate at 0-6,000 RPM. High-speed turning centers reach 12,000 RPM for small-diameter work.
• Cycle Time: Simple shafts: 2-5 minutes. Complex components with live tooling: 10-20 minutes. High-volume production with bar feeders: 30-90 seconds per part.

Primary Applications for CNC Turning services:

CNC turning serves industries requiring cylindrical components with precision and repeatability.

• Automotive: Axles, transmission shafts, brake rotors, wheel hubs, engine valves, turbocharger components. High-volume production with 20-50 second cycle times. Requires IATF 16949 quality systems and statistical process control.
• Aerospace: Landing gear components, engine shafts, hydraulic fittings, bushings, fasteners. Tight tolerances (±0.013 mm). Requires AS9100 certification, material traceability, and Nadcap accreditation for critical components.
• Medical: Orthopedic implants (hip stems, knee components), surgical instruments, bone screws, dental abutments. Biocompatible materials (titanium, 316 stainless). Requires ISO 13485 certification and sterile-ready finishes.
• Oil & Gas: Valve bodies, drill collars, pipe fittings, wellhead components, downhole tools. Corrosion-resistant alloys (Inconel, Hastelloy, 17-4 PH). Requires NACE MR0175 compliance and API specifications.
• Industrial Machinery: Hydraulic cylinders, pistons, pump shafts, roller shafts, spindles, lead screws. Requires wear resistance and sealing surface finish (Ra ≤0.8 µm). Often case-hardened or hard-turned.
• Electronics: Heat sinks, connector housings, EMI shields, mounting studs, RF components. Requires tight tolerances, conductive finishes, and high cosmetic standards. Often machined from aluminum or brass.
• Defense: Ordnance components, gun barrels, missile housings, vehicle parts, communication housings. Requires MIL-SPEC compliance, ITAR registration, and full material traceability.

Polestar Excellent Case:

Scenario: Hydraulic piston rod failure on a 200-ton injection molding press.

A maintenance engineer at a plastics manufacturing facility reports that a hydraulic piston rod (400 mm length, 80 mm diameter) failed due to surface wear, causing seal leakage and unplanned downtime. The press operates 20 hours daily at 2,500 psi. The OEM replacement costs $2,400 with 6-week lead time.

Component Specifications:

• Material: 4140 alloy steel, pre-hardened to 28-32 HRC
• Diameter: 80 mm –0.00 / –0.05 mm (critical sealing zone)
• Length: 400 mm ±0.2 mm
• Concentricity: 0.025 mm TIR
• Surface Finish (Sealing Zone): Ra 0.4 µm

Turning Process:

• Machine: 8-axis CNC turning center with live tooling
• Roughing: Depth of cut 1.5 mm, feed 0.25 mm/rev, speed 180 m/min (carbide insert)
• Finish Pass: Depth of cut 0.15 mm, feed 0.05 mm/rev, speed 220 m/min
• Hard Turning (Final): Depth of cut 0.10 mm, feed 0.04 mm/rev, speed 150 m/min using CBN insert
• Cycle Time: 14 minutes per rod

Results:

• Surface finish measured at Ra 0.38 µm – exceeding Ra 0.8 µm specification
• Concentricity verified at 0.018 mm TIR using coordinate measuring machine
• Hard turning eliminated secondary grinding operation, reducing processing time by 40%
• Total manufacturing cost: $680 (72% savings vs. OEM replacement)
• Lead time: 8 days (85% reduction from OEM)
• Service life: 18,000 operating hours – equivalent to OEM specification
• No seal leakage observed after 6 months of continuous operation

Industry-Specific Solutions:

• Competitive Angling – IPX8 waterproof certified for tournament conditions
• Big Game Fishing – Certified for 100kg+ saltwater drag loads
• Bass Fishing – Micro-balanced for vibration-free retrieval
• Arctic Expeditions – Validated for -50°C extreme cold operation
• Luxury Tackle Brands – Custom anodizing with Pantone color matching

Why Partner With Us?

• No Aluminum Profile Mold Fees – We absorb these costs to reduce your investment
• No Welding Fixture Charges – Additional savings passed to you
• Integrated Production Technologies – Combine aluminum profiles, shaped metals, castings, and MIM materials with CNC machining to lower unit costs
• Cost-Competitive Manufacturing – Lean processes deliver high-quality parts at favorable prices
• One-Stop Facility – ISO9001/IATF16949 certified factory offering laser cutting, bending, stamping, CNC machining, sheet metal work, welding, and assembly under one roof for consistent quality control
