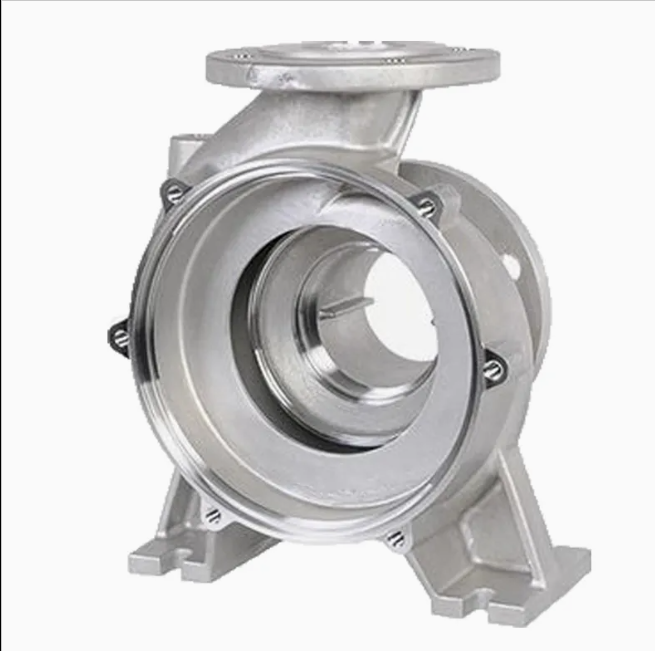

Custom Reliable Bearing Seats CNC Machining for Machinery and Automation

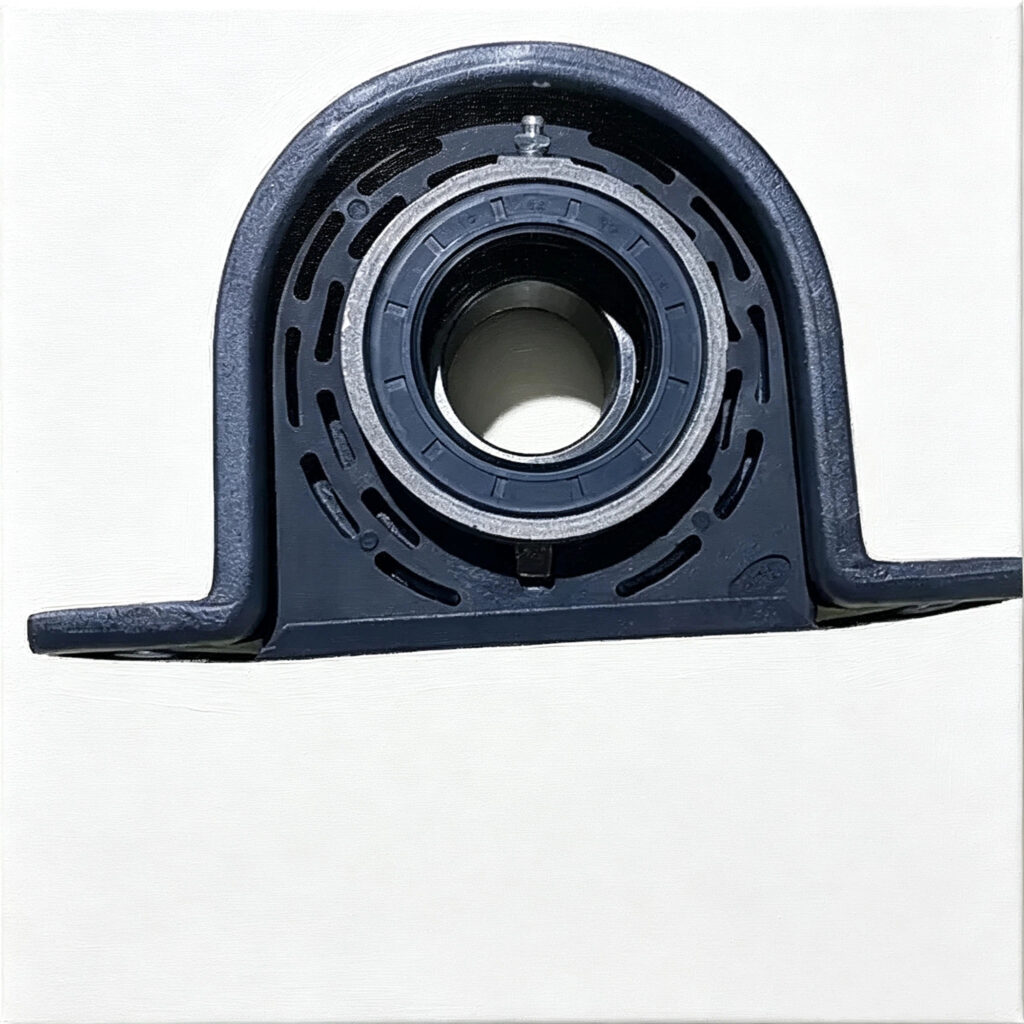

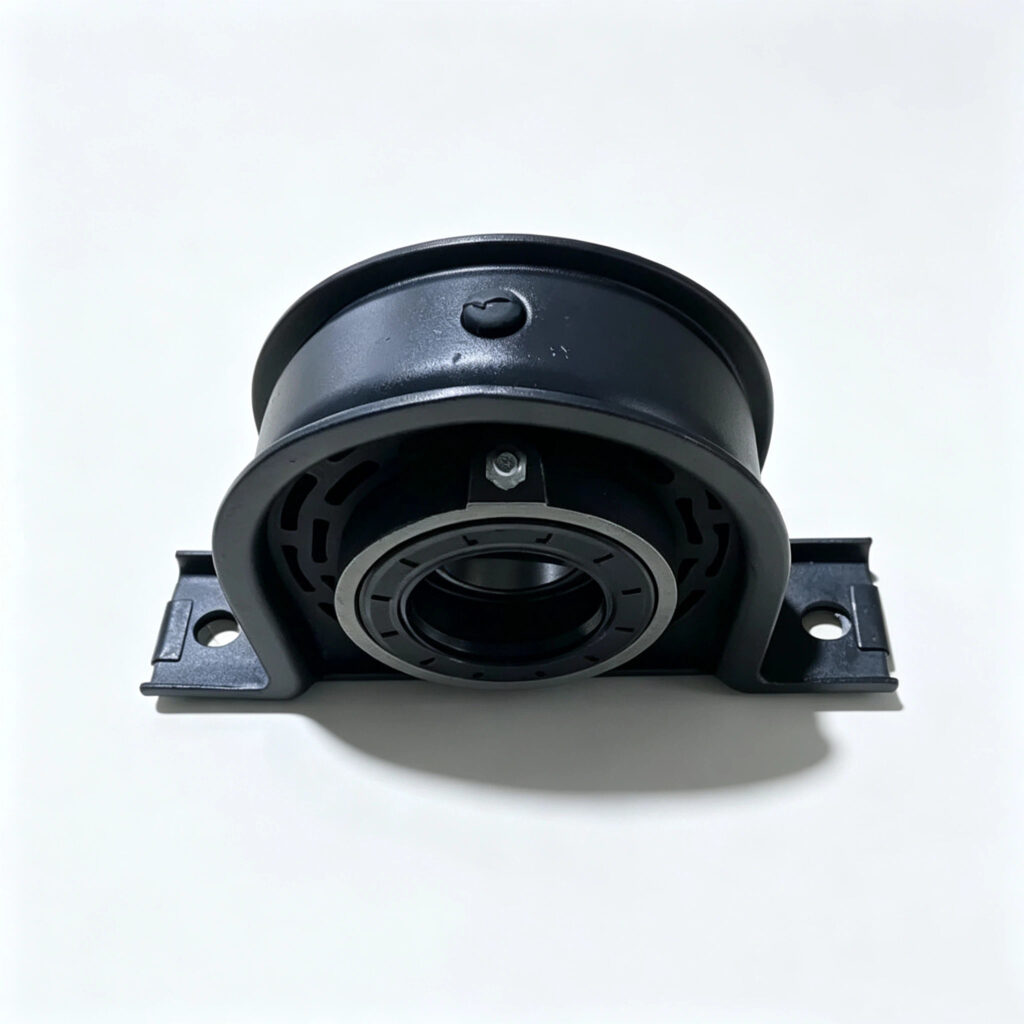

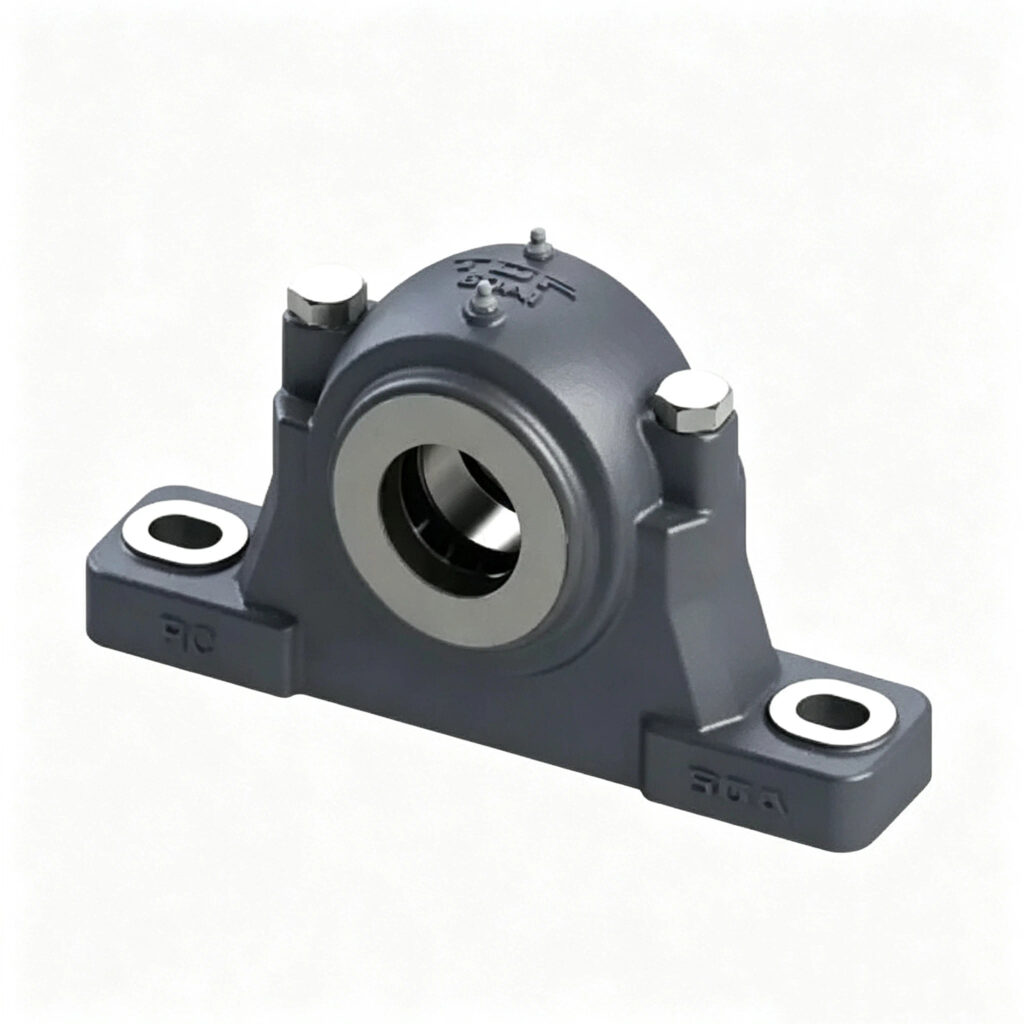

Custom bearing seats CNC machined to precise dimensions, with accurate bearing bores, shoulders, mounting features, and locating surfaces for industrial machinery and mechanical assemblies.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
What Are Bearing Seats?
Bearing seats are precision-machined features or components designed to locate, support, and align bearings within mechanical assemblies. Depending on the design, a bearing seat can be an internal bore in a housing, an external journal on a shaft, or a machined pocket with a shoulder that controls the axial position of a bearing.
Although a bearing seat may look like a simple round hole or cylindrical surface, its dimensional accuracy can directly influence bearing fit, shaft alignment, vibration, noise, and service life. A bearing may fit into a nominally correct bore and still perform poorly if the seat is tapered, out of round, misaligned, or poorly finished.
For this reason, custom bearing seats are commonly produced according to customer drawings rather than selected as generic standard parts. CNC machining allows the bore, shoulder, mounting holes, grooves, chamfers, and other locating features to be produced as one coordinated component.
Typical bearing seat designs include:
- Flange-type bearing seats
- Block-type bearing seats
- Embedded bearing housings
- Single-bearing and double-bearing seats
- Bearing pockets in machine housings
- Bearing seats integrated into shafts, brackets, and structural components
The correct design depends on the bearing type, load, rotational speed, mounting method, surrounding structure, and operating environment.
Bearing Seat Specifications
A bearing seat is normally specified by more than its outside dimensions. The bearing interface is the most important functional area and should be defined according to the actual assembly requirements.
| Specification | Typical Consideration |
|---|---|
| Bearing Bore | Diameter, fit class, roundness and cylindricity |
| Outside Dimensions | Length, width, height and wall thickness |
| Bearing Width | Pocket depth or shoulder position |
| Shoulder | Height, perpendicularity and contact surface |
| Mounting Holes | Diameter, thread, pitch circle and position |
| Retaining Features | Retaining ring groove, cover or locking structure |
| Chamfer | Helps bearing installation and protects edges |
| Surface Finish | Determined by bearing contact and functional requirements |
| Position Accuracy | Important when multiple bearing locations must align |
| Runout | Critical for rotating assemblies |
| Material | Selected according to load, environment and weight |
| Surface Treatment | Anodizing, plating, passivation, coating or other finishing |
For precision applications, the drawing should identify the bearing reference or fit requirement whenever possible. Bore diameter alone may not fully describe the functional requirement. Roundness, runout, shoulder squareness, surface finish and datum relationships can all affect assembly performance.
For example, a bearing housing for an automation machine may require a lightweight aluminum body, while a heavy-duty transmission housing may require steel or another stronger material. The same bearing size can therefore lead to very different bearing seat designs.
Bearing Seat Materials and Their Applications
Material selection should follow the load, speed, operating temperature, corrosion exposure, weight requirements and manufacturing process.
Aluminum Alloys
6061-T6
A versatile CNC material with good machinability, strength-to-weight ratio and corrosion resistance.
Typical applications:
- Automation equipment
- Robotics
- Lightweight machine housings
- Motor brackets
- Precision equipment
- Electronics manufacturing equipment
6061-T6 is often a practical choice when weight reduction and machinability are important.
7075-T6
Provides higher strength than 6061-T6 and can be considered when a stronger but lightweight bearing-supporting structure is required.
Typical applications:
- High-performance automation
- Robotic components
- Lightweight mechanical assemblies
- Aerospace-related equipment
For aluminum bearing seats, the design should also consider wall thickness, bearing fit and surface treatment because anodizing or other coatings can affect the final fit.
Stainless Steel
304 Stainless Steel
A general-purpose stainless grade suitable for environments where corrosion resistance and cleanability are important.
Typical applications:
- Food-processing equipment
- Packaging machinery
- General industrial equipment
- Washdown environments
316 Stainless Steel
Provides improved corrosion resistance in more demanding environments.
Typical applications:
- Chemical equipment
- Marine equipment
- Pharmaceutical equipment
- Food-processing machinery
- Outdoor industrial equipment
Stainless steel bearing seats are useful where corrosion resistance is more important than minimizing weight.
Carbon and Alloy Steel
Steel is suitable when bearing seats must withstand higher mechanical loads, shock, vibration or demanding operating conditions.
Typical applications:
- Gearbox housings
- Heavy machinery
- Industrial transmission systems
- Construction equipment
- High-load rotating assemblies
Alloy steels can also be selected when additional strength, hardness or heat-treatment capability is required.
Cast Iron
Cast iron is commonly used in traditional industrial bearing housings because of its rigidity, machinability and vibration-damping characteristics.
Typical applications:
- General machinery
- Agricultural equipment
- Transmission systems
- Industrial motors
- Heavy machine structures
It is particularly suitable when weight is less important and vibration damping is valuable.
Engineering Plastics
Materials such as POM, PA, PTFE and PEEK can be considered for specialized light-load or low-friction applications.
POM: Low friction and good dimensional stability
PA: Good wear resistance and mechanical strength
PTFE: Very low friction and excellent chemical resistance
PEEK: High-performance applications requiring heat, chemical and wear resistance
Typical applications:
- Conveyor equipment
- Food machinery
- Low-load rotating mechanisms
- Electrical insulation components
- Semiconductor equipment
- Specialized precision fixtures
Engineering plastics are not a universal replacement for metal. Load, temperature, dimensional stability and bearing fit should be evaluated before material selection.
A Custom Bearing Seat Manufacturing Case
At Polestar Metal Products, a custom bearing seat project can be managed as part of a complete precision manufacturing workflow rather than as an isolated machining operation.
A typical project begins with a customer’s 2D drawing or 3D model. Our team reviews the bearing dimensions, material, critical tolerances, mounting features and machining requirements before production.
Step 1 — Drawing Review
The drawing is reviewed for:
- Bearing bore dimensions
- Critical tolerances
- Shoulder dimensions
- Mounting-hole locations
- Threads and grooves
- Material requirements
- Surface treatment requirements
Potential manufacturing issues can be identified before machining.
Step 2 — Material Preparation
Depending on the application, the bearing seat can be produced from aluminum, stainless steel, carbon steel, alloy steel, brass or engineering plastics.
Material selection is based on the customer’s application rather than simply choosing the lowest-cost option.
Step 3 — CNC Machining
CNC machining is used to produce the critical features of the bearing seat, including:
Bearing bores → shoulders → mounting holes → threads → grooves → chamfers → locating surfaces
When several features must maintain a positional relationship, machining them within the same controlled process can help maintain consistency between the interfaces.
Step 4 — Secondary Processes
Depending on the project, additional processes may include:
- Anodizing
- Powder coating
- Plating
- Passivation
- Heat treatment
- Welding
- Assembly
This allows a bearing seat to be supplied as either a machined component or as part of a larger custom metal assembly.
Step 5 — Inspection
Before shipment, critical dimensions are checked according to the drawing and project requirements.
Depending on the component, inspection can focus on:
- Bore diameter
- Overall dimensions
- Hole position
- Shoulder geometry
- Runout
- Surface finish
- Thread dimensions
This workflow is particularly useful for OEM equipment manufacturers because a bearing seat rarely works independently. It normally needs to match a shaft, bearing, frame, housing or other components in the same assembly.
Applications of Bearing Seats
Bearing seats can be found wherever rotating components need stable support and accurate positioning.
Industrial Machinery
Machine tools, production equipment and mechanical transmission systems use bearing seats to maintain shaft alignment and support rotating components.
Automation and Robotics
Robot joints, conveyors, positioning systems and automated machinery often require compact and lightweight bearing housings.
Aluminum bearing seats can be useful where reducing moving mass is important.
Packaging Machinery
Packaging machines contain numerous rollers, shafts and rotating mechanisms. Custom bearing seats can help integrate these components into machine frames and housings.
Motors and Gearboxes
Bearing seats support rotating shafts and help maintain alignment between bearings, gears and other transmission components.
Agricultural Machinery
Agricultural equipment often requires durable bearing-supporting components capable of operating in dusty, humid and mechanically demanding environments.
Semiconductor and Precision Equipment
Precision equipment may require carefully machined bearing locations with controlled geometry, repeatable assembly and appropriate material selection.
Pumps and Fluid Equipment
Stainless steel, PTFE, PEEK and other corrosion-resistant materials may be considered when bearing-related components operate near chemicals, moisture or aggressive fluids.
Why Choose Polestar for Custom Bearing Seats?
A good bearing seat supplier should provide more than machining capacity. The supplier needs to understand that the bearing interface is a functional feature, rather than simply an ordinary hole.
Drawing-Based Custom Manufacturing
Polestar manufactures bearing seats according to customer drawings, samples or specific dimensional requirements.
This allows the component to be adapted to the customer’s bearing, shaft and equipment structure instead of forcing the customer to modify an existing standard part.
CNC Machining Capability
Our CNC machining process can produce:
- Bearing bores
- Pockets
- Shoulders
- Threads
- Grooves
- Mounting holes
- Locating surfaces
- Complex profiles
The machining process can be selected according to the material, geometry, tolerance and production volume.
Multiple Material Options
We work with common engineering materials including:
Aluminum | Stainless Steel | Carbon Steel | Alloy Steel | Brass | Copper | POM | PA | PEEK and other engineering plastics
Material selection can be matched to the application’s load, corrosion resistance, weight and operating environment.
CNC Machining Plus Metal Fabrication
For projects involving more than a simple machined bearing seat, Polestar can coordinate CNC machining with other metal fabrication processes, including welding, tube bending, sheet metal work, surface finishing and assembly.
This is useful when the bearing seat is integrated into a larger machine component.
Instead of purchasing several related parts from different suppliers, customers can discuss the complete component requirement with one manufacturing partner.
Prototype and Small-Batch Support
Bearing seats are often part of customized equipment rather than mass-market products. Prototype and small-batch production can therefore be important during equipment development, design verification and production ramp-up.
Polestar supports custom projects where the customer may initially require only a small quantity before moving to repeat production.
Engineering Review Before Production
Before machining, we can review the drawing for material, bearing fit, machining accessibility, critical dimensions and production requirements.
If a design presents a potential manufacturing issue, it is better to identify it during quotation and drawing review than after the part has been produced.
Inspection and Consistency
Critical bearing interfaces can be inspected according to the drawing and project requirements.
For repeat orders, maintaining consistent dimensions between production batches is particularly important because bearing seats are directly connected to assembly and alignment.
Custom Bearing Seats Built Around Your Assembly
A bearing seat is a relatively small component, but it can influence the alignment, stability and service life of an entire rotating assembly.
For OEM manufacturers, the best solution is therefore not simply a bearing seat with the correct nominal diameter. It is a component designed and machined around the bearing, shaft, housing, load, environment and assembly method.
Whether you need an aluminum bearing seat for lightweight automation equipment, a stainless steel version for a corrosive environment, a steel component for heavy-duty machinery, or an engineering plastic solution for a specialized application, Polestar can manufacture the part according to your drawing and production requirements.
Send us your 2D drawing or 3D model. We can review the bearing seat design, material and machining requirements and provide a quotation for your project.
