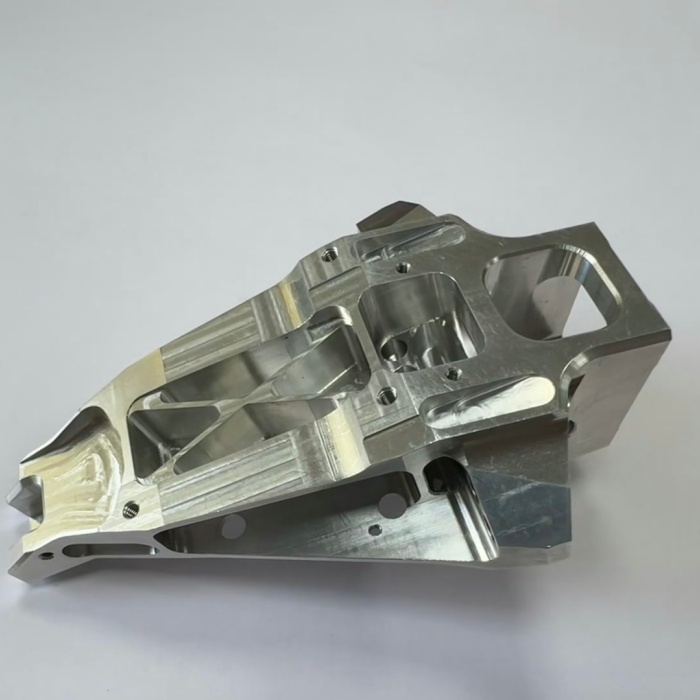

Automatic Robot Arm 99% Purity Precision Titanium Components Custom Reliable CNC Milling Part
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
An automatic robot arm is a programmable, multi-axis electromechanical system designed to automate industrial tasks including material handling, welding, polishing, and assembly. It replaces manual labor with precision tolerances reaching ±0.05mm and 24/7 operational capability.
What Is an Automatic Robot Arm?
An automatic robot arm functions as the core actuator in industrial automation systems. Unlike fixed automation, an automatic robot arm offers reprogrammable flexibility for batch-variable production. MRO buyers evaluate automatic robots arm based on repeatability (mm), payload capacity (kg), reach (mm), and protection ratings (IP67). Modern automatic robot arms integrate 6-axis kinematics with servo drives, force-torque sensors, and vision guidance to handle tasks from CNC machine tending to precision surface finishing.
Material:

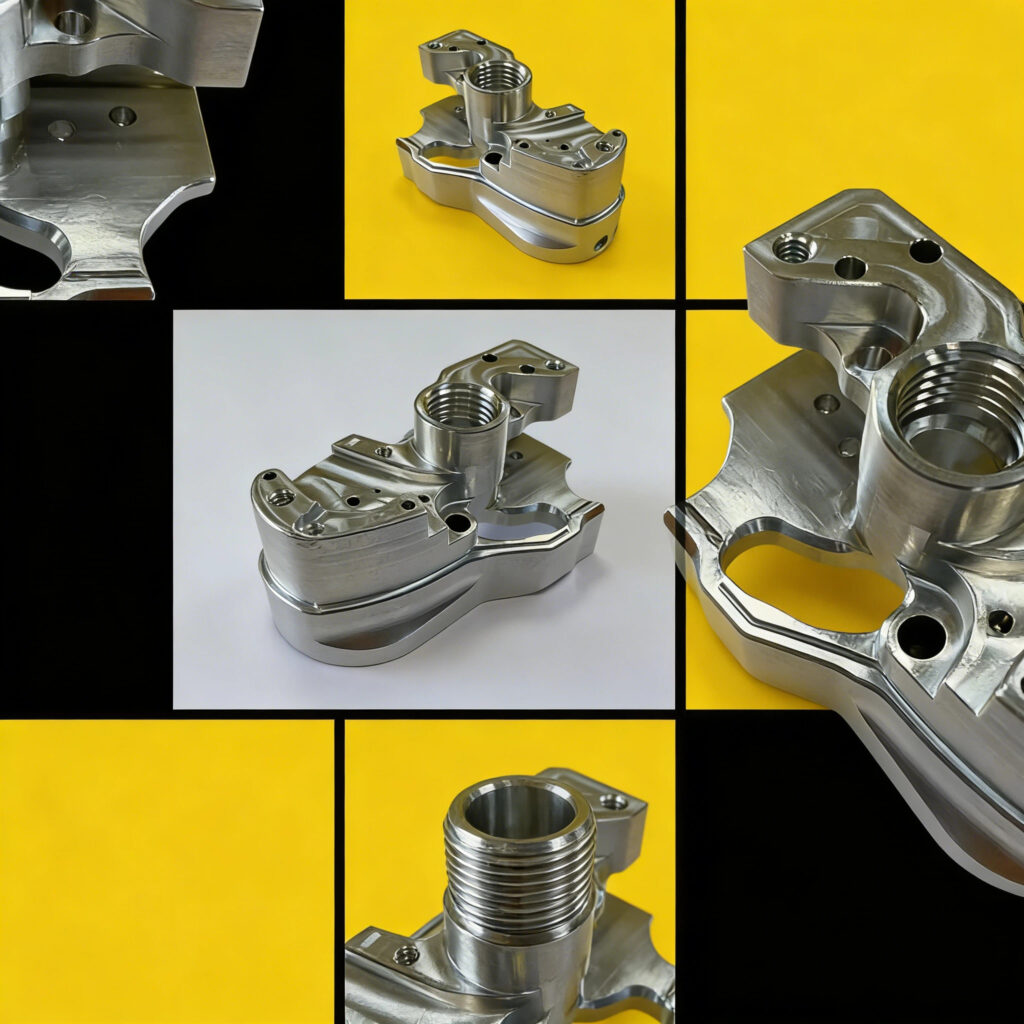

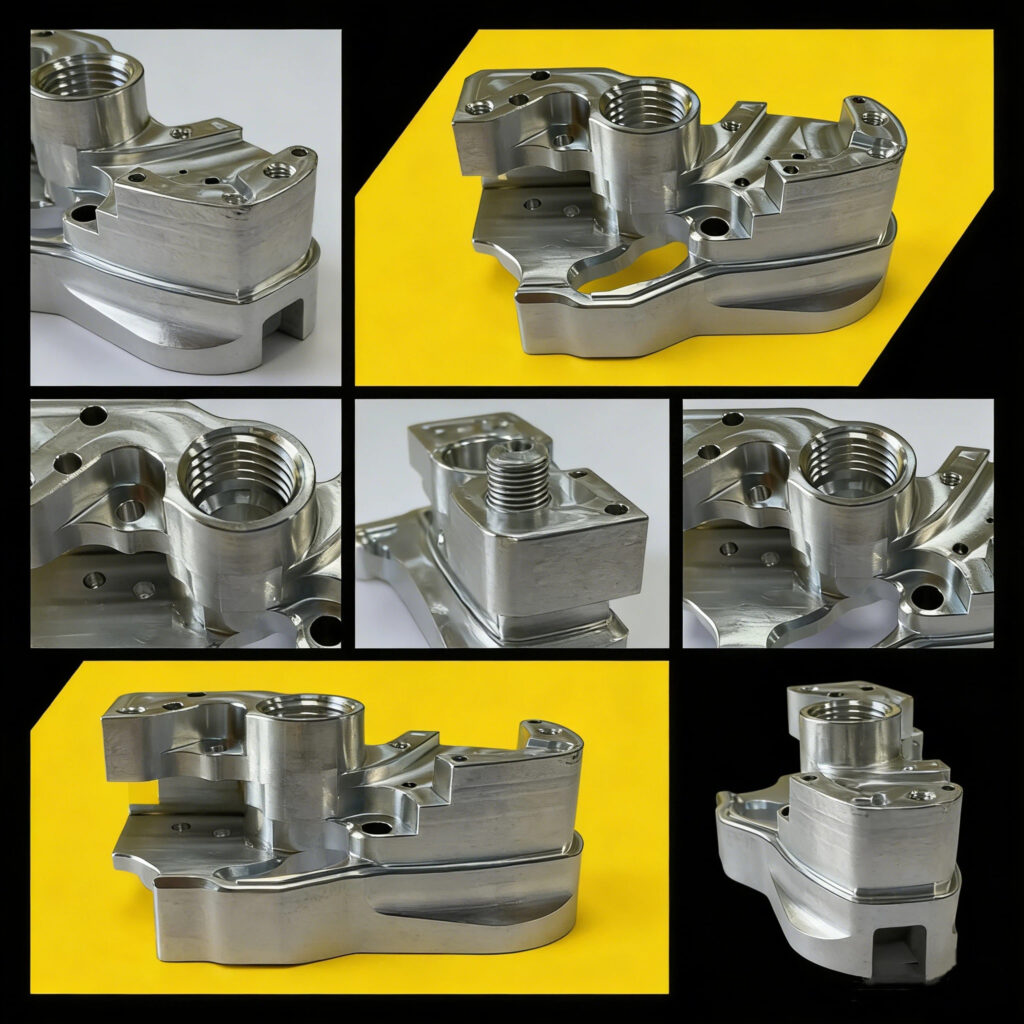

We work with a range of aerospace-grade alloys for automatic robot arm components：

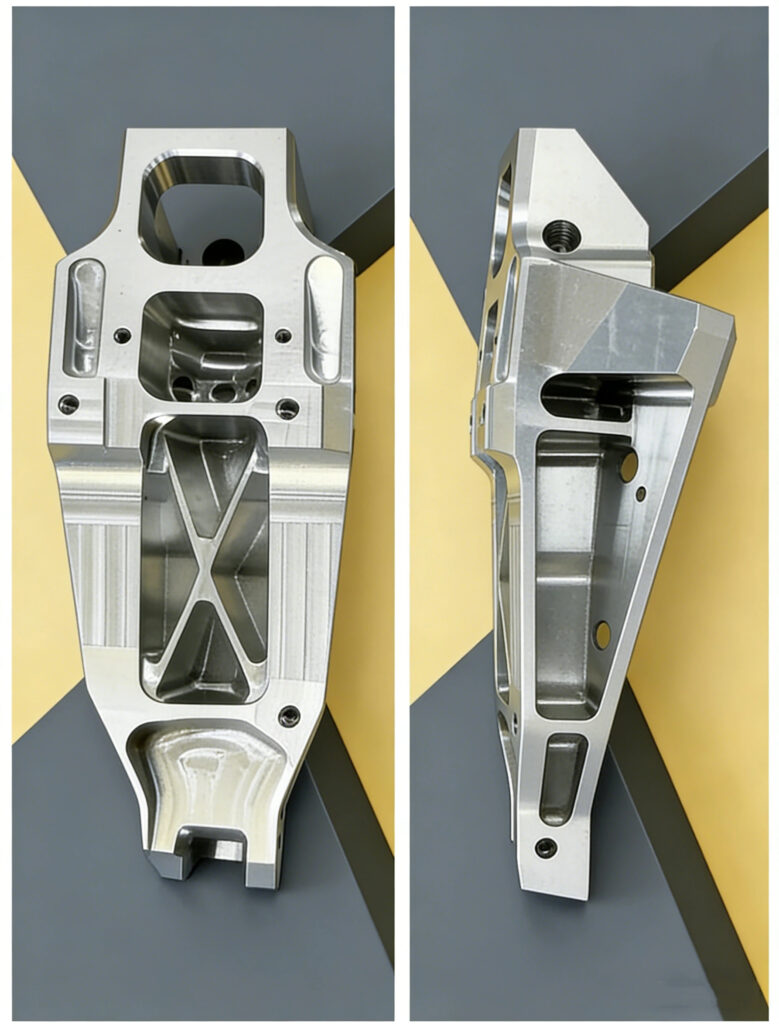

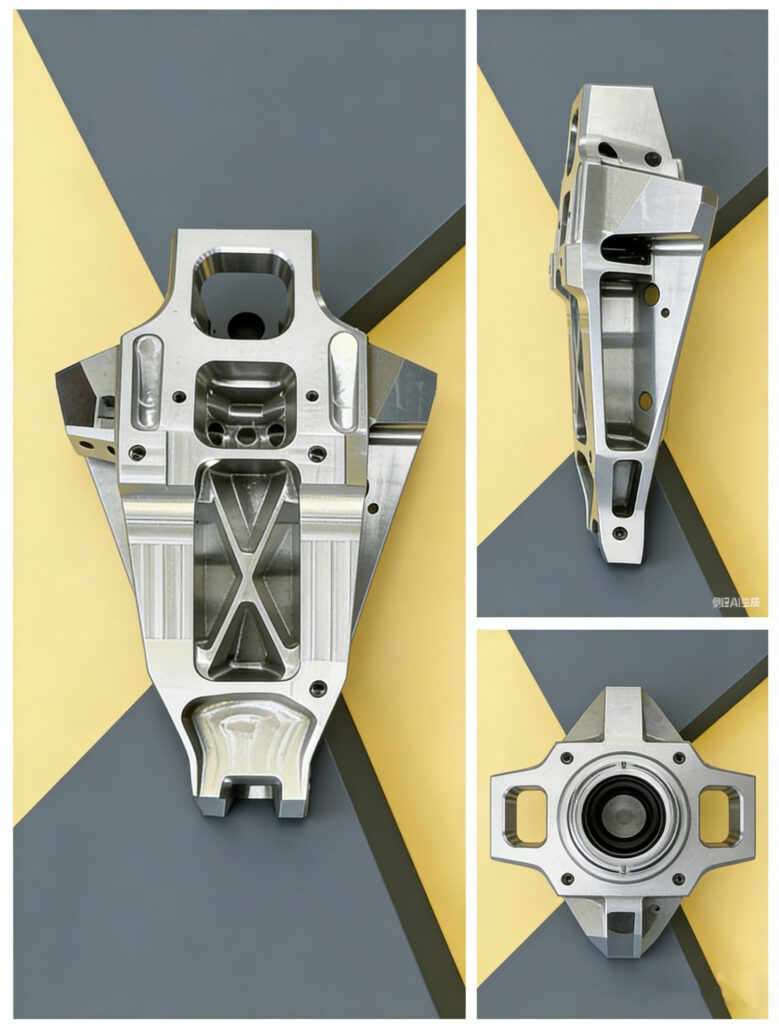

- 7075-T6 aluminum: structural links, 570 MPa tensile, optimal strength-to-weight ratio
- 6061-T6 aluminum: housing components, 310 MPa yield, excellent machinability
- ADC12 aluminum: die-cast components, cost-effective for high-volume production
- precipitation-hardening stainless steel: harmonic drive components, high-cycle fatigue resistance, selected for minimal inertia, high structural rigidity, and long-term dimensional stability under cyclic loading.
Surface Treatment:
- Hard Anodizing (Type III, MIL-A-8625) – 50–60µm thickness, 65+ Rockwell C hardness, wear-resistant for link surfaces
- Powder Coating (ASTM D3359) – 5B adhesion, 500+ hours salt spray, corrosion protection for housings
- Micro-Arc Oxidation (MAO) – Ceramic coating for aluminum components, superior wear and corrosion resistance
- Electrochemical Mechanical Polishing (ECMP) – Ra 0.2µm finish for precision mating surfaces
- Passivation (ASTM A967) – For stainless steel components, corrosion resistance enhancement
- Laser Engraving – Permanent serialization and calibration marking
Applications:
The automatic robot arm serves across five primary industrial sectors:
- Automotive Manufacturing:
Engine block handling, transmission case deburring, and wheel polishing. Automatic robot arms in this sector operates with ±0.05mm repeatability and 24/7 uptime, replacing 3-5 manual operators per shift. - CNC Machine Tending:
Automatic robot arms paired with CNC machines increases production capacity by 200-400% while reducing labor costs per part by 60-90%. The robot loads raw stock and unloads finished parts without operator intervention. - Surface Finishing & Polishing:
For medical implants and aerospace components, robot arms equipped with force control achieves surface roughness reduction from Ra 16µm to Ra 0.227µm—impossible with manual methods. - Material Removal (Deburring/Grinding):
Robotic grit blasting with a robot arm is up to 8x faster than manual methods, delivers consistent surface profiles, and removes operators from hazardous dust environments. - Welding & Assembly:
Arc welding with a robot arm maintains precise torch angles and travel speeds, reducing weld defects and rework rates by over 50% compared to manual welding.
Case Study: Automatic Robot Arm for CNC Machine Tending
Challenge: A mid-sized aerospace components manufacturer operated 12 CNC mills with manual loading/unloading. Each machine required dedicated operator attention, limiting utilization to 60% (single shift). Scrap rates averaged 4.2% due to inconsistent part fixturing. Annual labor cost for 12 operators exceeded $720,000.
Solution: A standardized robot arm cell was deployed using a 6-axis industrial robot (20 kg payload, 1.4m reach) with dual grippers. The automatic robot arm configuration included:
End-of-Arm Tooling: Dual pneumatic grippers—one for raw stock pickup, one for finished part removal—enabling 15-second changeover cycles.
Vision Guidance: Integrated 2D camera for part orientation verification, reducing fixturing errors by 90%.
Safety Integration: Light curtains and area scanners allowed the automatic robot arm to operate at full speed while maintaining personnel safety during maintenance access.
Production Scheduling: The automatic robot arm received part programs directly from the MES system, enabling untended overnight production.
Results (12 months, 12 machines):
Machine utilization: 60% → 92% (overnight lights-out operation)
Scrap rate: 4.2% → 1.1% (consistent fixturing)
Labor cost: $720,000 → $96,000 (one technician per shift)
Payback period: 11 months (including integration)
ROI: 380% over 3 years
The automatic robot arm deployment enabled the manufacturer to accept higher-volume contracts previously impossible with manual operation, increasing annual revenue by $2.1M without facility expansion.
