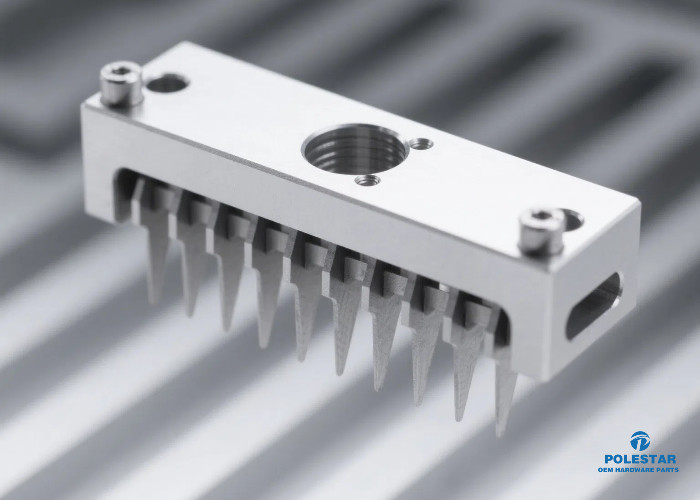

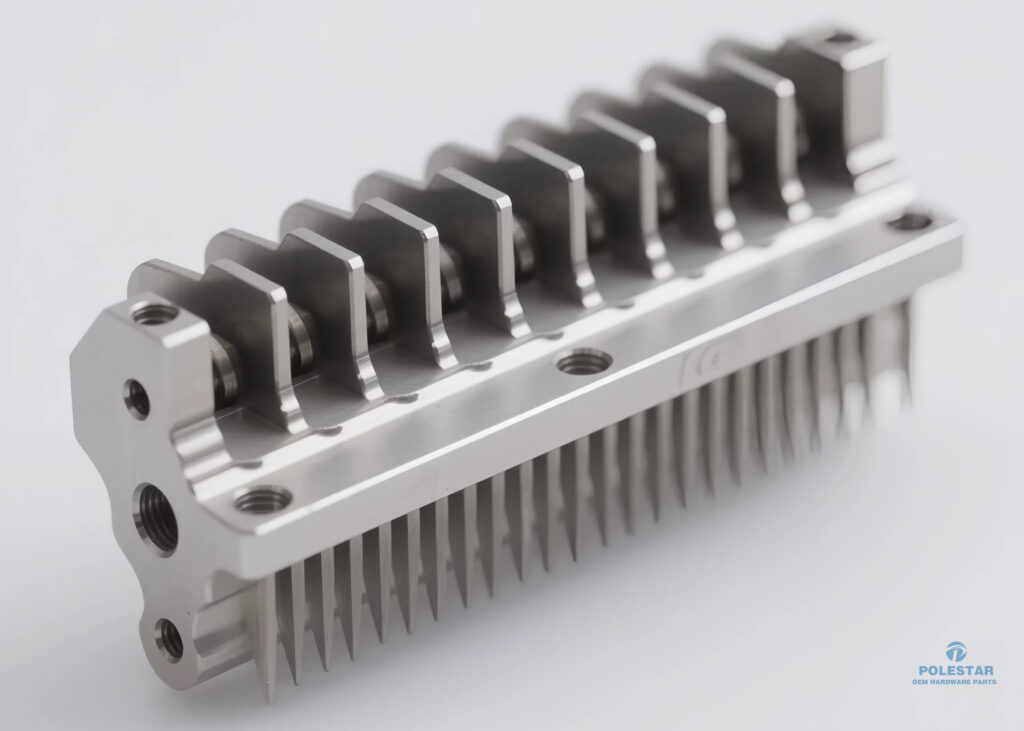

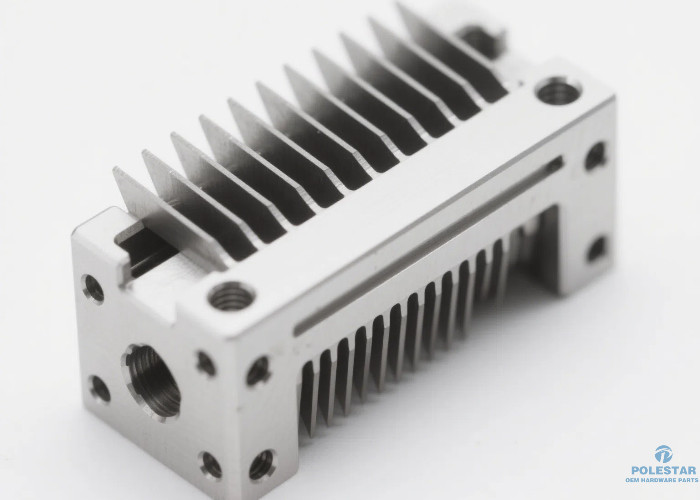

High Efficiency & Reliable Aluminum Heat Sink with 99% Purity Aluminum Material for CPU, Amplifier and Industrial Control Equipment

This Aluminum Heat Sink is made of high-quality aluminum material, featuring excellent thermal conductivity and efficient heat dissipation performance. With lightweight structure and good corrosion resistance, it is widely used in LED lighting, power supplies, electronic devices and other cooling systems. We support customized processing to meet different application requirements.

What is an Aluminum Heat Sink?

An aluminum heat sink is a passive thermal management component designed to dissipate heat away from electronic devices, ensuring optimal operating temperatures and preventing overheating. Made from aluminum due to its excellent thermal conductivity, lightweight properties, and cost-effectiveness, heat sinks work by increasing the surface area in contact with air, allowing heat to be transferred away from critical components such as CPUs, power transistors, LEDs, and other heat-generating electronics.

The principle behind heat sink operation is simple yet effective: heat generated by an electronic component conducts into the heat sink base, then travels through fins or pins that maximize surface area, where it is dissipated into the surrounding air through natural convection or forced airflow from fans.

Why Choose Aluminum Heat Sinks:

Aluminum is the preferred material for heat sinks due to its exceptional combination of properties:

• High Thermal Conductivity – Aluminum offers excellent heat transfer capabilities, typically ranging from 150 to 250 W/m·K depending on the alloy, ensuring efficient heat dissipation from sensitive electronic components.
• Lightweight – With a density approximately one-third that of copper, aluminum heat sinks add minimal weight to electronic assemblies, making them ideal for portable devices, aerospace, and automotive applications.
• Cost-Effective – Aluminum is more affordable than copper while still providing outstanding thermal performance, offering an excellent balance of cost and efficiency.
• Excellent Machinability – Aluminum is easy to machine, extrude, and cast, allowing for complex fin geometries and custom designs optimized for specific airflow conditions.
• Corrosion Resistance – Aluminum naturally forms a protective oxide layer, and with appropriate surface treatments such as anodizing, it can withstand harsh environments.
• Aesthetic Versatility – Aluminum heat sinks can be anodized in various colors, providing both functional corrosion protection and a professional appearance.

Key Features of Our Custom Aluminum Heat Sinks:

• Precision CNC Machining – Our advanced CNC machining centers produce heat sinks with tight tolerances, ensuring perfect fitment with your electronic components and mounting configurations.
• Optimized Fin Designs – We offer a wide range of fin geometries including straight fins, pin fins, cross-cut fins, and flared fins, each optimized for specific airflow conditions (natural convection or forced air).
• Custom Dimensions – From miniature heat sinks for compact electronics to large-scale units for industrial power systems, we accommodate your size requirements with precision.
• Material Selection – We work with various aluminum alloys including 6061, 6063, and 1050, each selected for its balance of thermal conductivity, machinability, and cost.
• Surface Finishes – Anodizing (clear, black, or hard coat), chemical film, and other finishes enhance corrosion resistance, thermal emissivity, and appearance.
• Value-Added Services – We offer thermal interface material (TIM) application, assembly with fans or clips, and custom packaging to meet your complete heat sink requirements.

Aluminum Alloys for Heat Sinks:

6061 Aluminum:

A versatile, heat-treatable alloy offering good thermal conductivity (approximately 167 W/m·K), excellent machinability, and strong corrosion resistance. Ideal for CNC machined heat sinks requiring complex geometries and tight tolerances.

6063 Aluminum:

Often used for extruded heat sinks, this alloy offers slightly higher thermal conductivity (approximately 200 W/m·K) than 6061, with excellent surface finish after anodizing. It is widely used for medium to high-volume extruded heat sink profiles.

1050 Aluminum:

A commercially pure aluminum alloy with the highest thermal conductivity among common heat sink materials (approximately 230 W/m·K). It is soft and highly formable, making it ideal for applications requiring maximum heat transfer with simple geometries.

Copper (Alternative Material):

For applications demanding maximum thermal conductivity, we also offer copper heat sinks. Copper provides approximately 400 W/m·K thermal conductivity but is heavier and more expensive than aluminum.

Surface Finishes of Aluminum Heat Sinks:

To enhance thermal performance, durability, and appearance, we offer a range of surface treatments:

Anodizing (Type II – Clear or Black):

Anodizing creates a protective oxide layer that enhances corrosion resistance and improves surface emissivity, which can increase radiative heat dissipation by up to 25% compared to bare aluminum. Black anodizing provides maximum emissivity and a professional aesthetic.

Hard Anodizing (Type III):

A thicker, harder anodized coating that provides excellent wear resistance for heat sinks exposed to mechanical abrasion or harsh environments. Ideal for industrial and military applications.

Chemical Film (Alodine / Chromate Conversion):

A thin, conductive coating that provides corrosion protection without significantly affecting thermal performance. Suitable for applications requiring electrical grounding or where anodizing may interfere with conductivity.

Bare / As Machined:

For applications where cost is critical and environmental exposure is minimal, we offer bare aluminum heat sinks with a clean, machined finish.

Technical Specifications of Aluminum Heat Sinks:

• Thermal Conductivity: Up to 230 W/m·K depending on alloy selection
• Tolerances: ±0.05 mm to ±0.1 mm on critical dimensions
• Fin Thickness: As thin as 0.5 mm for high-density fin arrays
• Fin Height: Customizable based on application requirements
• Base Thickness: Optimized for thermal spreading and structural integrity
• Production Volume: Prototypes (1–50 pcs), small to medium volume (50–5,000 pcs), high volume (5,000+ pcs)
• Lead Time: 7–15 business days depending on complexity and quantity
• Quality Standards: ISO 9001:2015 certified

Application Industries Aluminum Heat Sinks:

Aluminum heat sinks are essential components across a wide range of industries where thermal management is critical to performance and reliability:

Consumer Electronics:

CPUs, GPUs, power amplifiers, gaming consoles, laptops, tablets, and smartphone components require efficient heat dissipation to maintain performance and extend product lifespan.

LED Lighting:

High-power LEDs generate significant heat that must be managed to maintain light output, color consistency, and longevity. Custom LED heat sinks are designed for various form factors including COB arrays, street lights, grow lights, and automotive lighting.

Power Electronics:

Inverters, rectifiers, power supplies, motor drives, and uninterruptible power supplies (UPS) generate substantial heat during operation. Custom heat sinks ensure reliable operation in demanding industrial environments.

Telecommunications:

Base stations, RF amplifiers, 5G equipment, and networking hardware require robust thermal management to maintain signal integrity and system reliability in outdoor and indoor installations.

Automotive & Electric Vehicles:

Electric vehicle battery management systems, onboard chargers, DC-DC converters, motor controllers, and infotainment systems rely on custom heat sinks for reliable operation under harsh automotive conditions.

Industrial Equipment:

Welding equipment, laser systems, industrial computers, variable frequency drives (VFDs), and automation controllers require durable heat sinks capable of withstanding demanding industrial environments.

Medical Devices:

Diagnostic imaging equipment, patient monitors, surgical lasers, and medical power supplies require reliable thermal management to ensure patient safety and equipment accuracy.

Renewable Energy:

Solar inverters, wind turbine controllers, and energy storage systems depend on efficient heat sinks to maintain performance in outdoor environments with wide temperature variations.

Aerospace & Defense:

Avionics, radar systems, military communication equipment, and satellite components require lightweight, high-performance heat sinks capable of withstanding vibration and extreme temperature conditions.

Polestar Success Case: Custom Aluminum Heat Sink for High-Power LED Lighting

Challenge:

A leading commercial lighting manufacturer required a custom heat sink for a high-power LED luminaire. The fixture was designed for outdoor stadium lighting, operating at 500W total power, and needed to maintain LED junction temperatures below 85°C in ambient temperatures up to 50°C. The heat sink also needed to withstand wind loads, resist corrosion from outdoor exposure, and fit within a compact form factor.

Our Solution:

Polestar Metal collaborated with the client’s thermal engineering team to design and manufacture a custom extruded aluminum heat sink from 6063 alloy. The design featured:

• A dense array of straight fins optimized for natural convection with optimized fin spacing for maximum airflow
• A thick base plate (8 mm) for effective thermal spreading across the LED array
• Black anodized finish to enhance radiative heat dissipation and provide corrosion protection
• Integrated mounting points for the LED driver and protective cover

Using precision CNC machining, we machined the extruded profile to exact dimensions, added mounting holes with tight tolerances, and performed 100% dimensional inspection.

Quality Assurance:

Thermal performance was validated through computational fluid dynamics (CFD) simulation during design and confirmed with thermal imaging tests on production samples. We provided full inspection reports and thermal test data for customer approval.

Result:

The client received 2,500 units in the first production run with zero defects. The custom heat sink maintained LED junction temperatures below 82°C under worst-case operating conditions, exceeding the required specification. The solution reduced the overall fixture weight by 15% compared to previous designs, eliminated the need for active cooling fans, and led to a long-term production agreement for the entire LED fixture product line.

Why Choose Polestar Metal for Custom Aluminum Heat Sinks?

Advanced Manufacturing Capabilities:

We utilize state-of-the-art CNC machining centers, extrusion presses, and finishing lines to produce high-quality aluminum heat sinks with precision and consistency.

Thermal Engineering Support:

Our engineering team provides DFM (Design for Manufacturability) feedback and can assist with thermal simulation and design optimization to ensure your heat sink meets your thermal performance requirements.

Flexible Production Volumes:

From rapid prototypes to high-volume production runs of 100,000+ units annually, we accommodate your needs with no minimum order quantity for prototypes.

Quality Assurance:

We are ISO 9001:2015 certified and provide comprehensive inspection reports including CMM data, material certifications, and dimensional conformance reports.

Fast Turnaround:

Standard lead times range from 7 to 15 business days, with expedited services available for urgent prototyping requirements.

Supply Chain Integration:

We support JIT (just-in-time) delivery and Kanban inventory management for long-term production programs.

Global Shipping:

Reliable logistics with air freight, sea freight, and express courier options (DHL, FedEx, UPS) to serve customers worldwide.
