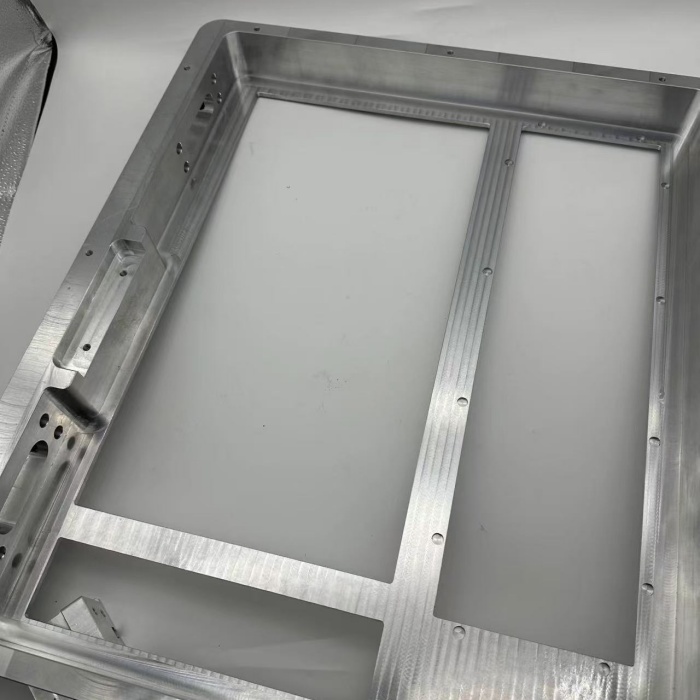

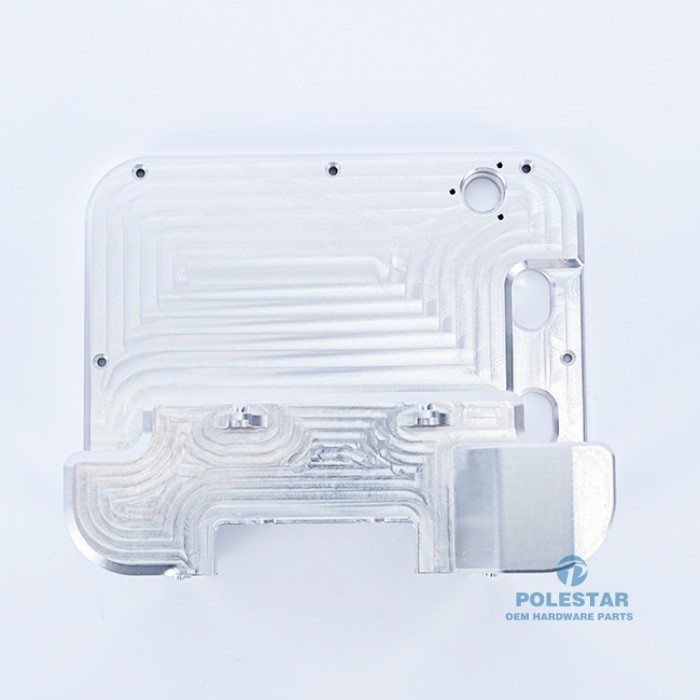

OEM Customized 6061-T6 Aluminum Enclosure for Focused on CNC Machining Server Chassis Parts

Aluminum enclosures are protective housings made from aluminum alloys, offering excellent durability, corrosion resistance, and lightweight construction. They shield sensitive electronics in industrial, outdoor, and portable applications. Standard ratings include IP67 and NEMA 4X, ensuring protection against dust, water, and corrosion.

What is an Aluminum Enclosure?

An aluminum enclosure is a rigid housing manufactured from extruded, cast, or machined aluminum, designed to protect electronic components, controls, and sensitive equipment from environmental hazards. These enclosures combine the natural corrosion resistance of aluminum with structural strength, electromagnetic interference (EMI) shielding, and thermal conductivity. Unlike plastic enclosures, aluminum offers superior heat dissipation—critical for power electronics. Unlike steel, aluminum is 66% lighter (density 2.70 g/cm³ vs. 7.85 g/cm³). Common configurations include die-cast boxes for rugged applications, extruded housings for instrumentation, and custom CNC-machined enclosures for specialized electronics. Surface treatments such as anodizing and powder coating enhance durability and aesthetics.

Material Specifications:

• 6061-T6 Aluminum: Most common grade; excellent machinability; good corrosion resistance; tensile strength 310 MPa
• 6063-T5/T6 Aluminum: Extrusion grade; smooth surface finish; good anodizing response; tensile strength 186-241 MPa
• 5052-H32 Aluminum: Good formability; excellent corrosion resistance; marine applications; tensile strength 228 MPa
• Die Cast Aluminum (ADC12/A380): High-volume production; complex geometries; density 2.71 g/cm³; tensile strength 320 MPa
• 7075-T6 Aluminum: High strength (570 MPa); aerospace applications; less corrosion resistant than 6061
• 5083 Aluminum: Marine grade; excellent weldability; corrosion resistant; tensile strength 317 MPa

Surface Finishes:

• Anodizing (Type II): Electrochemical process; 5-25 µm thickness; clear or colored; enhances corrosion and wear resistance
• Anodizing (Type III / Hardcoat): 25-75 µm thickness; hardness 70 HRC; maximum wear protection
• Powder Coating: Electrostatic polymer; 60-120 µm; wide RAL colors; durable; UV resistant
• Bead Blasting: Glass or ceramic media; uniform matte finish; hides tool marks; prepares for anodizing
• Brushed Finish: Abrasive belt; linear grain pattern; decorative appearance; common on extruded enclosures
• Chromate Conversion (Chem Film): Conductive coating; corrosion protection; electrical grounding applications
• Electroless Nickel Plating: Uniform 5-50 µm thickness; wear and corrosion resistance; EMI shielding
• Polishing (Mirror): Mechanical buffing; reflective finish; decorative applications

Applications:

1. Industrial Electronics: PLCs, drives, power supplies, instrumentation; NEMA 4X/IP66 protection; 6061 or die-cast
2. Outdoor Telecom: Base stations, antennas, remote radios; weather resistance; 6063 extruded + powder coat
3. Medical Devices: Patient monitors, diagnostic equipment; cleanable surfaces; 6061 + chem film or anodized
4. Marine & Offshore: Navigation equipment, control panels; saltwater corrosion resistance; 5052/5083 + hardcoat
5. Aerospace & Defense: Avionics, portable military electronics; light weight; 7075 or 6061 + chem film
6. Consumer Electronics: Audio equipment, test instruments; aesthetic finish; extruded 6063 + brushed anodized
7. Renewable Energy: Solar inverters, battery management; outdoor rated; die-cast + powder coat

Best Practice Application Example:

Scenario: Industrial PLC control enclosure upgrade for a wastewater treatment facility.

A municipal wastewater treatment facility experienced repeated failures of plastic control enclosures housing PLCs and power supplies. The existing ABS enclosures degraded after 12 months due to continuous UV exposure, chemical vapors (chlorine and hydrogen sulfide), and physical impacts from maintenance activities. Failures allowed moisture ingress (failed IP65 seal), causing corrosion on circuit boards and unplanned downtime averaging 8 hours monthly.

Selected Solution:

The MRO team replaced 24 failed plastic enclosures with custom aluminum enclosures featuring enhanced environmental protection.

• Material: 6061-T6 aluminum plate and bar stock
• Fabrication: CNC machining of back panel, side walls, and cover from solid billet; all corners welded and ground smooth
• Dimensions: 300 x 250 x 120 mm; wall thickness 4.0 mm
• Surface finish: Type III hardcoat anodizing (50 µm); clear; 65 HRC
• Gasket: Silicone closed-cell foam; IP67/NEMA 6P rating
• Mounting: External stainless steel brackets; internal mounting plate for DIN rail
• Hardware: 304 stainless steel captive cover screws (M5)

Results:

• Environmental rating: Achieved IP67 (submersible 1m for 30 min) and NEMA 6P
• Corrosion resistance: 1,000+ hours salt spray with no pitting (ASTM B117)
• Impact resistance: Withstands 20 Joules (IK10) vs. 2 Joules (IK06) for previous plastic
• Thermal management: Internal temperature reduced 15°C vs. plastic enclosure (aluminum conducts heat away from electronics)
• Downtime: Zero enclosure-related failures over 24 months
• Service life: Expected 20+ years (vs. 12 months for plastic)
• ROI: $18,000 project cost recovered within 8 months from eliminated downtime ($2,000/month)

Product Advantages:

1. Durability of aluminum enclosure: Withstands harsh industrial, outdoor, and marine environments; service life 10-20+ years
2. Lightweight of aluminum enclosure: 66% lighter than steel (2.70 vs. 7.85 g/cm³); reduces mounting strain
3. Thermal management of aluminum enclosure: Natural heat dissipation (167 W/m·K); ideal for power electronics
4. Corrosion resistance of aluminum enclosure: Anodized or powder coated aluminum resists salt spray, chemicals, UV
5. EMI shielding of aluminum enclosure: Aluminum provides effective electromagnetic interference protection
6. Customizable of aluminum enclosure: CNC machining, extrusion, or die casting for any size and feature
7. Aesthetic finishes: Brushed anodized, powder coated, or painted in any RAL color

Why Choose Us?

• ISO 9001-certified; NEMA and IP testing validated

• In-house CNC machining, welding, and finishing (anodizing, powder coat, chem film)

• Free DFM review within 24 hours

• Rapid prototyping to high-volume production (1-10,000+ units annually)

• Full material traceability and CMM inspection reports
